Double Column Gantry Round Surface Grinder with 900mm Carriage Travel and High Precision
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | CE ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $150,000.00/sets 1-2 sets |
| Packaging Details: | Standard Package |
| Supply Ability: | 500 Set/Sets per Year |
|
Detail Information |
|||
| Type: | Other, Surface Grinding Machine | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Year: | New |
| Voltage: | 380V 50Hz | Dimension(L*W*H): | 3030*1990*2800mm |
| Weight (KG): | 27000 | Power (kW): | 30 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Showroom Location: | Kenya, South Korea, Kyrgyzstan, Kazakhstan, Nigeria, Chile, None | Applicable Industries: | Manufacturing Plant |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Other | Color: | Optional |
| Product Name: | Grinding Machine | Name: | Gantry Surface Grinder Machine |
| Key Selling Point: | Competitive Price | Keywords: | Surface Grinder |
| Carriage Of Grinding Head Travel: | 900mm | Max. Grinding Length: | 360mm |
| Max. Grinding Diameter: | 1600mm | Port: | China Port |
Product Description
Products Description

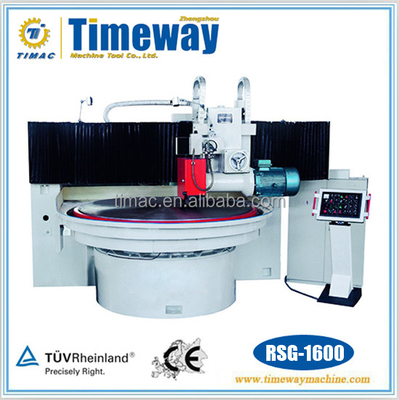

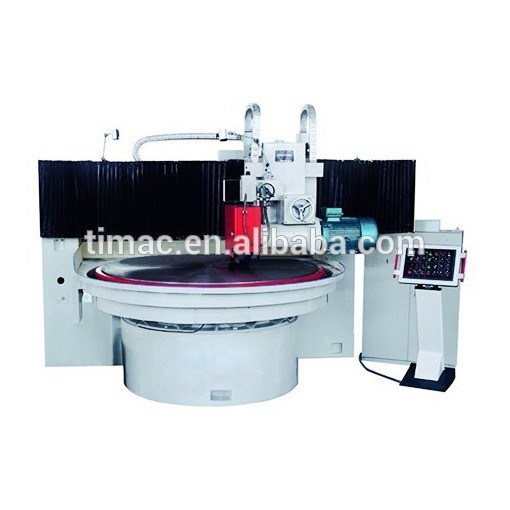

Gantry Surface Grinder
Performance and Feature
* RSG1250-3500 Series Gantry Horizontal spindle round table surface grinding machine is a new type machine developd by our company through absorbing domestic and international advanced grinding machine structure and manufacturing technology.
* The series of machine tools adopt high-quality casting (HT250) and pass through thermal aging threatment.It has reasonable structure ,big carrying capacity,excellent performance ,overweight load of workbench,high dynamic and static precision satisfying heavy grinding ,safe and to grinding reliable action,long service life.high machining precision ,and rapid efficiency.
* Adopt edge grinding of grinding wheel,upper and lower planes of workpiece can achieve higher parallelism,dimensional precision,and surface roughness of work piece.The product is applicable machining of precision parts in tools factory,bearing factory,air compressor and general machinery factory ,and ect.
* The body is increased the reinforcing rib of forced location,and is greatly improved the body rigidity according to the force confition,so that guarantee the stability.Each anchor bolt has corresponding reinforcing rib,recuces the body deformation brought by bolt tension force.
* Diameter of work round table is Φ1250-Φ3500mm.Round workbench adopts dynamic and static pressure rotation on the round guide of body.Rotary motion of workbench is driven by AC variable frequency speed regulstion bevel gear speed-reducing motor ,has stable and reliable automatic variable speed movement .
* Double upright colimn sdopts honeycomb structural design .High strength widening crossbeam reinforced rigidity and there is no possibility of drooping.Carriage is moved horizontally and to and fro along the crossbeam.grinding head is vertically fed along the carriage.
* Grinding head and vertical guide of upright colimn adopt inlaid steel hardened rolling struture ,good contact rigidity ,high
motion accuracy,portable movement,flexible feed ,simple and reliable lubrication, long service life,steady and compact overall structure,high precision, reliable performance,good manufaturability,convenient operation and use.
* Front-end of grinding head spindle adopts P4 double-row cylinder roller bearing+P4 angular contract ball bearing support,rear-end adopts P4 angular contract ball bearing support ,rolling structure,good contact rigidity,high rotary accuracy,is riven by AC motor through connection of belt pulley and spindle.
* Important components of machine tool (apindle bearing ,ball screw,rolling element pair and other outsourcing parts) are made by famous brand manufacturers,have reliable quality.
* Automatic lubricating pump automatically injects oil into lubrication parts regularly and quantitatively.
* High quality,high reliability electric elements,has long service life.
* Independent hydraulic station;adjustment.repair and maintenance is convenient.
* Complete processing equipment,prefect assembly process and strict quality control flow make sure that the products achieve the irst-class perfect quality.
* The series of machine tools adopt high-quality casting (HT250) and pass through thermal aging threatment.It has reasonable structure ,big carrying capacity,excellent performance ,overweight load of workbench,high dynamic and static precision satisfying heavy grinding ,safe and to grinding reliable action,long service life.high machining precision ,and rapid efficiency.
* Adopt edge grinding of grinding wheel,upper and lower planes of workpiece can achieve higher parallelism,dimensional precision,and surface roughness of work piece.The product is applicable machining of precision parts in tools factory,bearing factory,air compressor and general machinery factory ,and ect.
* The body is increased the reinforcing rib of forced location,and is greatly improved the body rigidity according to the force confition,so that guarantee the stability.Each anchor bolt has corresponding reinforcing rib,recuces the body deformation brought by bolt tension force.
* Diameter of work round table is Φ1250-Φ3500mm.Round workbench adopts dynamic and static pressure rotation on the round guide of body.Rotary motion of workbench is driven by AC variable frequency speed regulstion bevel gear speed-reducing motor ,has stable and reliable automatic variable speed movement .
* Double upright colimn sdopts honeycomb structural design .High strength widening crossbeam reinforced rigidity and there is no possibility of drooping.Carriage is moved horizontally and to and fro along the crossbeam.grinding head is vertically fed along the carriage.
* Grinding head and vertical guide of upright colimn adopt inlaid steel hardened rolling struture ,good contact rigidity ,high
motion accuracy,portable movement,flexible feed ,simple and reliable lubrication, long service life,steady and compact overall structure,high precision, reliable performance,good manufaturability,convenient operation and use.
* Front-end of grinding head spindle adopts P4 double-row cylinder roller bearing+P4 angular contract ball bearing support,rear-end adopts P4 angular contract ball bearing support ,rolling structure,good contact rigidity,high rotary accuracy,is riven by AC motor through connection of belt pulley and spindle.
* Important components of machine tool (apindle bearing ,ball screw,rolling element pair and other outsourcing parts) are made by famous brand manufacturers,have reliable quality.
* Automatic lubricating pump automatically injects oil into lubrication parts regularly and quantitatively.
* High quality,high reliability electric elements,has long service life.
* Independent hydraulic station;adjustment.repair and maintenance is convenient.
* Complete processing equipment,prefect assembly process and strict quality control flow make sure that the products achieve the irst-class perfect quality.
Technical Parameter：
Technical parameters | Unit | RSG-1250 | RSG-1600 | RSG-1800 |
Dimeter of workbench | mm | 1250 | 1600 | 1800 |
Rotational speed of workbench | rpm | 5-45 | 5-50 | 5-45 |
Working accuracy,roughness(length*width*height) | 1000:0.015 Ra 0.32-0.63 | 1000:0.015 Ra<0.08 | 1000:0.015 Ra<0.08 | |
Outline dimension of machine tool | mm | 3400*2550*3000 | 3030*1990*2800 | 3050*2100*2800 |
Gross weight/net weight | kw | 17000/16000 | 27000/25000 | 28000/26000 |
