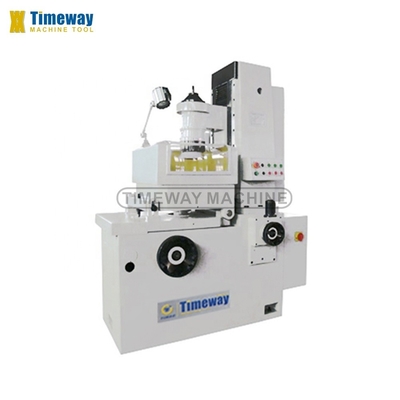

Year 2020 Universal Vertical Shaft Surface Grinding Machine for Surface Refinishing
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | CE ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-2 sets |
| Packaging Details: | Standard Package |
| Supply Ability: | 500 Set/Sets per Year |
|
Detail Information |
|||
| Type: | Universal, Surface Grinding Machine | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Year: | 2020 |
| Voltage: | 380V 50Hz | Dimension(L*W*H): | 1000*1100*1600mm |
| Weight (KG): | 1600 | Power (kW): | 4.6 |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Showroom Location: | France, Mexico, Kenya, Australia, South Africa, Morocco, South Korea, Egypt, Malaysia, Canada, Kyrgyzstan, Colombia, Nigeria, Peru, Tajikistan, Philippines | Applicable Industries: | Farms, Manufacturing Plant, Home Use, Construction Works , Energy & Mining, Retail, Machinery Repair Shops, Building Material Shops |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Engine, Gear, Pressure Vessel, Gearbox, PLC, Pump | Color: | Optional |
| Diameter Of Magnetic Chuck: | 320mm | Chuck Speed: | 48r/min |
| Diameter Of Grinding Wheel: | 150mm | After-sales Service Provided: | Online Support |
| Port: | China Port | ||
Product Description
Product Overview
Features

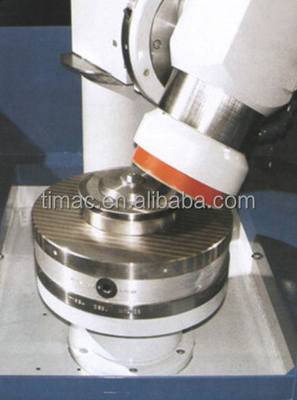

· Vertical surface grinding machine · Rotary surface grinding machine · With the tilting head the machine is also suitable for re-sharpe-ning circular blades. · It has a strong structure,rotating chuck and a special tiltingarm which allow the machine to be suitable for different jobs. · The manual down-feed is easy to control and easy to read.
Technical Parameter
· Magnetic chuck diameter Φ320mm · Chuck speed 48rpm · Grinding wheel motor power 3kw · Grinding wheel diameter Φ150mm · Machine dimension 1000*1100*1600mm · Machine weight 1600kg
Optional Equipment
· Magnetic chuck diameter Φ320mm · CBN grinding wheel · Segments holding ring · Grinding wheel power 3KW · Variable speed 3-30RPM · Closed cover · Spindle head rotation
PRODUCT SPECIFICATIONS
Specification | VSG-320 | VSG-320B |
Max. grinding size | φ320x200mm | φ320x100mm |
Worktable rotary diameter | φ320mm | φ320mm |
Distance from table center to grinding head center | 0~60mm | 0~60mm |
Max. distance from lower end surface of wheel to table | 160mm | 80mm |
Worktable speed | 46r/min | 46r/min |
Wheel head spindle speed | 2850~3000r/min | 4200r/min |
Grinding head adjust angle | ±18° | +5° |
Grinding head vertical movement per revolution of handwheel | 0.2mm | 0.25mm |
Grinding head vertical movement per circle of dial | 0.2mm | 0.25mm |
Grinding head vertical movement per graduation of dial | 0.002mm | 0.0025mm |
Grinding wheel size | 150x70x31.5mm | 150x70x32mm |
Max. weight of workpiece | 40kg | 40kg |
Wheel head motor power | 4kw | 3kw |
Worktable rotary motor | 0.25kw | 0.25kw |
Coolant motor | 0.06kw | 0.06kw |
Total motor power | 4.6kw | 4.6kw |
Overall dimension (LxWxH) | 1250x800x1900mm | 1000x1050x1620mm |
Machine weight | 1700kg | 880kg |
Company Introduction
Package & Transportation
Customers Visited
Exhibition & Training
Export Cases
Our Team
FAQ
Q: Why choose TIMEWAY MACHINE? A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; 2) Irrevocable LC at sight; 3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
