Vertical Spindle and Round Table Surface Grinding Machine for Machinery Repair Shops
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $100,000.00/sets >=1 sets |
| Packaging Details: | Standard Package |
| Supply Ability: | 500 Set/Sets per Year |
|
Detail Information |
|||
| Type: | Universal, Surface Grinding Machine | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Voltage: | 380V 50Hz |
| Dimension(L*W*H): | As Actual Situation | Weight (KG): | 4000 |
| Power (kW): | 25 | Warranty: | 1 Year, 1year |
| Key Selling Points: | High Productivity | Showroom Location: | Australia, Russia, Malaysia, Turkey, Thailand, Chile |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Other |
| Diameter Of Worktable: | 500mm | Rotating Speed Of Worktable: | 24rpm |
| Grinding Wheel Size: | 150*60*25mm | Grinding Head Spindle Speed: | 940rpm |
| Grinding Head Rapid Feed Speed: | 0.35m/min | Worktable Feed Speed: | 3.7m/min |
| Weight: | 4000kg | Max. Grinding Diameter: | 500mm |
| Port: | China Port | ||
Product Description
Product Description
Economic-type Surface Grinding Machine
The series of machine tools have made greater improvement on bed and grinding head rigidity; increase one set of electronic oil pumping system each for bottom guide rail and upright post guide rail of work bench, can pump oil automatically and oil volume is adjustable.upright post adopts three-point adjustment,compace structure,work bench is round powerful electromagnetic chuck, magnetic froce is uniform, precision is stable, power is big, electronic magnetizing and demagetizing ,and equips with coolant purification device.
Feature
The surface grinding machine with vertical spindle and round table is to grind the end face of grinding wheel ,is a high efficiency,precise and stable machine tool. The series of machine tools are mainly used for grinding blank and general precise large parts,surface roughness reaches above 0.8,and parallelism is within 0.02/1000mm Therefore ,it is espacially suitable for grinding of large parts in metallurgy,saw balde,automobile ,tractor,tools,bearing and other industries.
Specification

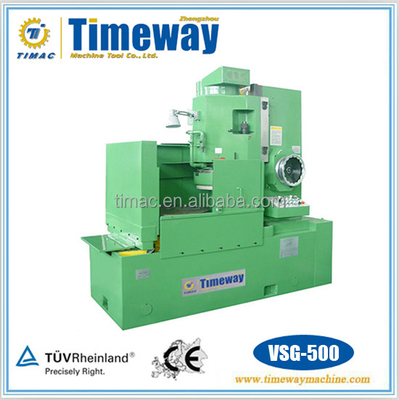

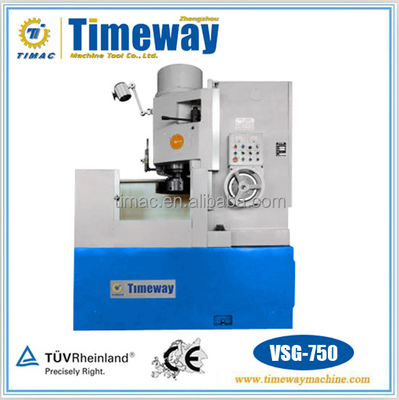

Specification | Unit | VSG-500 | VSG-750 | VSG-800 |
Diameter of work bench | mm | Φ500 | Φ750 | Φ800 |
Suction range of electromagnetic work bench | M/cm² | 80-120 | 80-120 | 80-120 |
Maximum size of grinding work piece | mm | Φ500x300 | Φ750x320 | Φ800x320 |
Size of abrasive segment (thickness x width x length) | mm | 150x60x25 | 125x85x35 | 125x85x35 |
Rotational speed of work bench | rpm | 24 | 13:20 | 13:20 |
Displacement diatance of work bench | mm | 450 | 450 | |
Movement speed of work bench | m/min | 3.7 | 4 | 4 |
Power of rotary motor of work bench | kw | - | 2.2 | 2.2 |
Power of travelling motor of work bench | kw | - | 1.1 | 1.1 |
Rotational speed of grinding head main spindle | rpm | 940 | 940 | 940 |
Rapid moving speed of grinding head | m/min | 0.35 | 0.22 | 0.22 |
Motor power of grinding head | kw | 22 | 25 | 25 |
Power of elevating motor of grinding head | kw | - | 0.55 | 0.55 |
Power of water pump motor | kw | 0.12 | 0.25 | 0.25 |
Total power of machine tool | kw | 25 | 30 | 30 |
Weight to machine tool (approximately) | T | 4 | 6 | 6 |

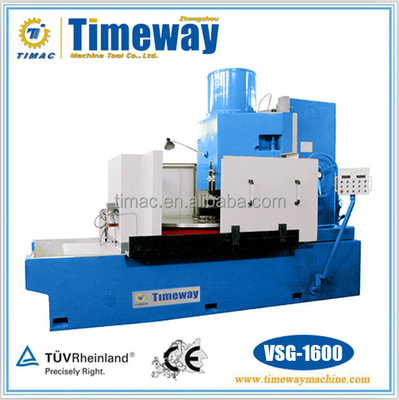

Notes：In addition to the above models, we also have VSG-1000, VSG-1250, VSG-1600, VSG-1800, VSG-2000, VSG-2250, VSG-2500, etc. If you need it, you can contact us.
