Economical-Type CNC Cylindrical Grinding Machine for Precise and Versatile Machining
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | CE ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-2 sets |
| Packaging Details: | Wood case or wooden pallet |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Grinding Diameter(Outer)(mm): | 200 | Grinding Diameter(Inner)(mm): | 0 |
|---|---|---|---|
| Grinding Length(mm): | 300 | Max. Length Of Workpiece (mm): | 3000 |
| Max. Weight Of Workpiece(kg): | 30 | Center Height (mm): | 135 |
| Wheel Size(mm): | 400*50*203 | Surface Roughness(μm): | 0.63 |
| Voltage: | 380V 50Hz | Dimension(L*W*H): | 2500*1600*1500mm |
| Weight (KG): | 2500 | Power (kW): | 10.825 |
| Key Selling Points: | High-accuracy | Warranty: | 1 Year |
| Showroom Location: | Viet Nam, Kenya, South Africa, Spain, South Korea, Russia, Turkey, Kyrgyzstan, Kazakhstan, Ukraine | Applicable Industries: | Manufacturing Plant |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Gearbox, Engine, Other | Condition: | New |
| CNC Or Not: | CNC | Type: | Cylindrical Grinding Machine |
| After-sales Service Provided: | Online Support | Color: | According To Per Customer's Need |
| Max. Workpiece Weight: | 30kg | Surface Roughness(O.D/Face): | Ra0.25um/0.63um |
| Max. Grinding Diameter(I.D): | 0 | CNC System: | As Per Customer's Needs |
| Max. Processing Workpiece Length: | 3000mm | Max. Grinding Diameter(O.D): | 200mm |
| Port: | China Port | ||
Product Description
Product Description

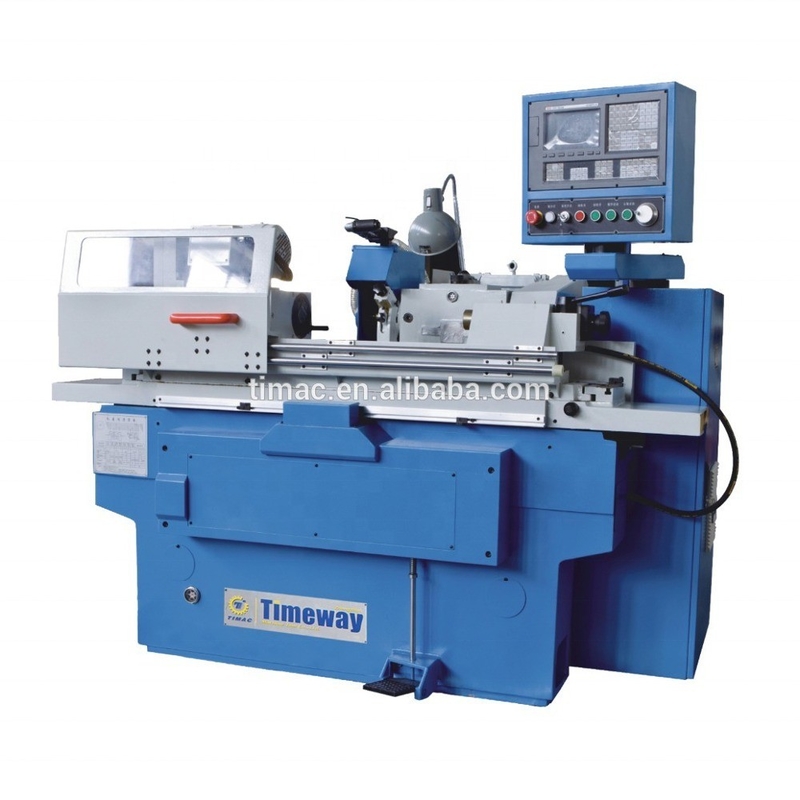

CNC Cylindrical Grinding Machine
1, This machine is mainly used for grinding the face and culindrical shaft parts, simple structure, easy to operate, with high cost performance.
2. The machine is simple and easy to operate. After simple training, it can be operated easily. By setting the parameter of longitudinal grinding or plunge grinding via the touch screen, an auto-grinding for the different workpiece is realized. With the function of worktable trip-shop, the machine can grind more than one journals of one workpiece automatically. The process parameter of more than one journals can be set discretionary for long grinding of plunge grinding.
Feature：
1. All plastic coated guide rail enhance its vibration resistance and sensitivity. 2. Wheel spindle bearing is NSK precision angular contact bearings, also be configured hybrid spindle according to the user. 3. C2-level precision screw used in all imported screw. 4. The machine can be equipped with radial and axial measurement instrument according to the user.
5. With the function of wheel dressing and compensation automatically. 6. Wheelhead spindle is supported by three bushing hydro-dynamic bearing, and high precision hydro dynamic-static bearing is also available for the user. 7. Timing provision of lubrication for machine moving parts according to program designing. Automatic lubrication of all moving parts. Tailstock has two ways:hydraulic and manual.
Specification

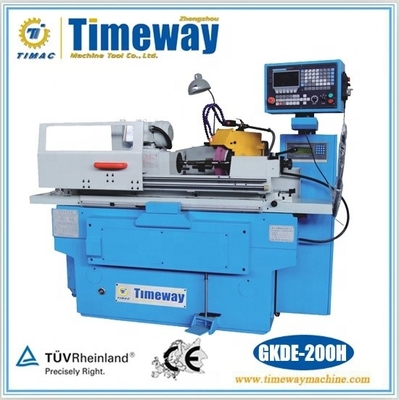

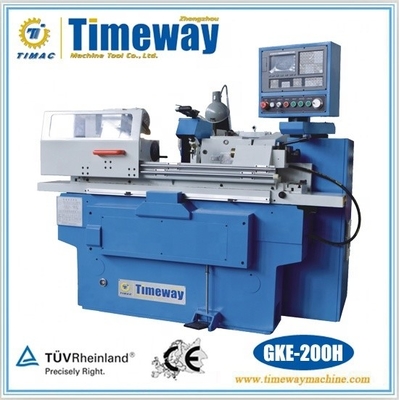

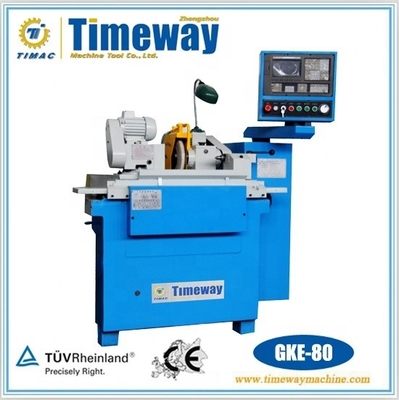

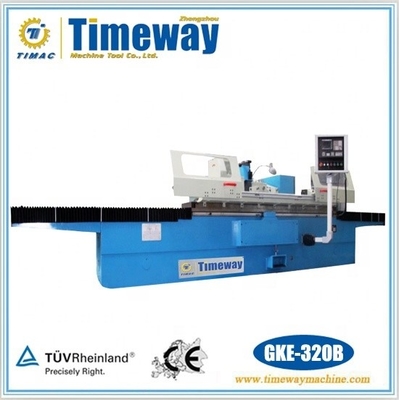

Specifications | Units | GKE-80*300 | GKDE-200H*300 | GKE-200H*800 | GKE-320B |
Dia. to be ground | mm | Φ2-Φ80 | Φ8-Φ200 | Φ8-Φ200 | Φ8-Φ320 |
Max. length to be ground | mm | 300 | 300 | 800 | 1000/1500/2000/3000 |
Center height | mm | 115 | 135 | 135 | 180 |
Distance between centers | mm | 300 | 330 | 850 | 1000/1500/2000/3000 |
Headstock center | Morse 3# | Morse 4# | Morse 4# | Morse 5# | |
Tailstock center | Morse 3# | Morse 4# | Morse 4# | Morse 4#/5# | |
Max. workpiece weight to be ground | kg | 10 | 30 | 30 | 150 |
Wheel size | mm | Φ250*25*Φ75 | Φ400*50*Φ203 | Φ400*50*Φ203 | Φ600*75*Φ305 |
Wheel peripheral speed | m/s | 35 | 35 | 35 | 35 |
Wheel spindle rptation speed | rpm | 2800 | - | 1670 | 1100 |
Min. pulse amount in X-axis | mm | 0.001 | 0.001 | 0.001 | 0.001 |
Min. pulse amount in Z-axis | mm | 0.001 | 0.001 | 0.001 | 0.001 |
Roundness | um | 1.5 | 1.5 | 1.5 | 1.5 |
Dia. uniformity in the longitudinal section | um | 5 | 4 | 5 | 5 |
Diameter measuring instrument | um | Ra0.32 | Ra0.25/0.63 | Ra0.32 | Ra0.32 |
Total motor power | kw | 3.4 | 10.825 | 10.825 | 21.475/30.075 |
Longitudinal servo motor power | kw | 1(3.3N.m) | 1.6(6N.m) | 1.6(6N.m) | 3.9(15N.m);5.4(27N.m) |
Transverse servo motor power | kw | 1(3.3N.m) | 1.6(6N.m) | 1.6(6N.m) | 3.9(15N.m);11(55N.m) |
Machine weight | kg | - | 2500 | - | - |
Machine dimensions | mm | - | 2500*1600*1500 | - | - |
Main Accessories
* Wheel periphery dresser
* Wheel hub
* Balancing arbor
* Open-type steady rest
* Wheel extractor
* Magnetic separator
* Wheel hub
* Balancing arbor
* Open-type steady rest
* Wheel extractor
* Magnetic separator
Extra Accessories
* Wheel balancing
* Surface measuring instrument
* Diameter measuring instrument
* Hybrid wheel spindle
* Surface measuring instrument
* Diameter measuring instrument
* Hybrid wheel spindle
Notes：
Different type machines have different specifications, such as functions, features, main accessories, extra accessories, technical parameters, structure and etc. we will produce the machine that you need. I am very looking forward to receive your letter about our machines.
