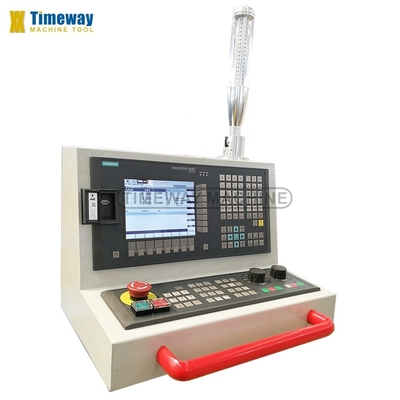

2-axis(Y/Z) or 3-axis(X/Y/Z) CNC control can be choosed for saddle moving grinder. SYNTEC,SIEMENS,FANUC controller are recommend.
 |
High Precision Siemens CNC Surface Grinder Grinding Machine for Accurate Measurements
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $150,000.00/sets 1-2 sets |
| Packaging Details: | wooden case (can be fumigated) or pallet |
| Supply Ability: | 500 Set/Sets per Year |
|
Detail Information |
|||
| Type: | Universal, Surface Grinding Machine | CNC Or Not: | CNC |
|---|---|---|---|
| Condition: | New | Wheel Size(mm): | 350x40x157 |
| Year: | 2021 | Voltage: | As Customer's Request |
| Dimension(L*W*H): | As Model | Weight (KG): | 4400 |
| Power (kW): | 4 | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Showroom Location: | Mexico, Australia, South Africa, Russia, Canada, United States, Germany |
| Applicable Industries: | Restaurant, Farms, Manufacturing Plant, Home Use, Food & Beverage Shops, Construction Works , Energy & Mining, Retail, Food Shop, Machinery Repair Shops, Building Material Shops, Food & Beverage Factory, Hotels, Advertising Company, Printing Shops, Garment | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Bearing, Engine, Gear |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Table Size: | As Model |
| CNC Surface Grinding Machine: | CNC Surface Grinder | Max. Grinding Length: | As Table |
| Power(kW): | 4 | Max. Grinding Diameter: | As Model |
| Table Longitudinal Travel: | 1130mm | Table Cross Travel: | 450mm |
| Distance From Spindle To Table: | 580mm | Port: | China Port |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Products Description

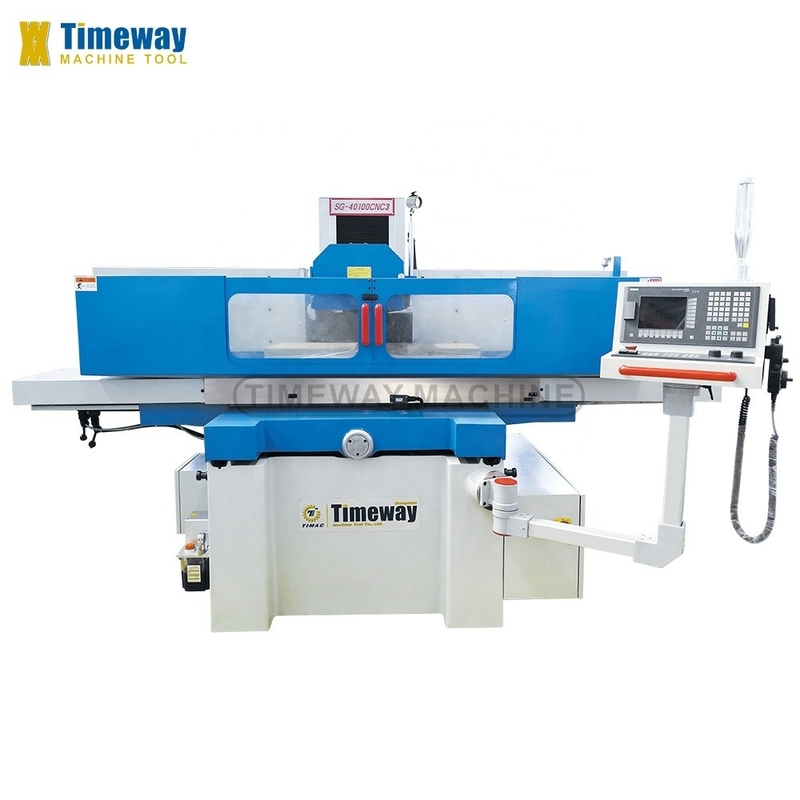

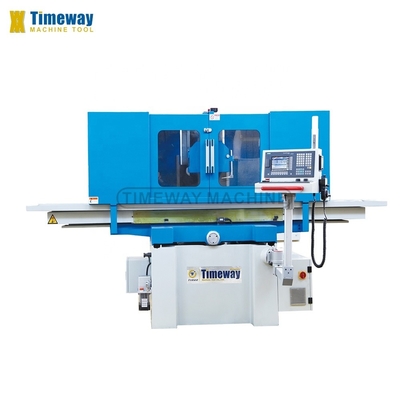

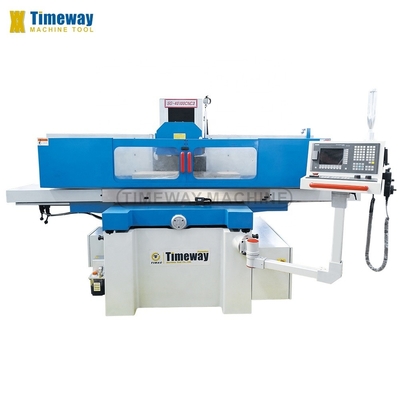

saddle moving type surface grinder
* SG-CNC series saddle moving surface grinder, the table size covers 200x500, 250x500, 300x630, 300x1000, 400x800, 400x1000.
* Welldesigned perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes cross movement drivenby AC servo motor (Y-axis), worktable make reversing movement driven by hydraulic or servo motor (X-axis), and spindle make elevating movement (X-axis) and is driven by AC servo motor.
* SG-CNC2 model:
Y/Z-axis numberical control and linkage, drove by ACservo motor and ball screw; X-axis drove by hydraulic.
* SG-CNC3 model:
X/Y/Z-axis numberical control and linkage, drove by AC servo motor amd ball screw.
X/Y/Z-axis numberical control and linkage, drove by AC servo motor amd ball screw.
* Elaborately-designed closed safe guard with safety-switch, not only have good apperance but also safety operating field.
* Precision grind spindle with preload high precision angular ball bearing and drive V3 mtor, runs in maintenance-free, lowvibration, and no noise.
* Precision grind spindle with preload high precision angular ball bearing and drive V3 mtor, runs in maintenance-free, lowvibration, and no noise.
Specification | Unit | SG-4080CNC2 | SG-40100CNC2 | |||
SG-4080CNC3 | SG-40100CNC3 | |||||
Table size(W×L) | mm | 406×813 | 406×1020 | |||
Max. longitudinal travel | mm | 910 | 1130 | |||
Max. cross travel | mm | 450 | 450 | |||
Max.distance from spindle center to table surface | mm | 580 | 580 | |||
Electro magnetic chuck size | mm | 400×800 | 400×1000 | |||
Table longitudinal movement | Speed | m/min | 5~25(CNC2 model); 0.02~15(CNC3 model) | |||

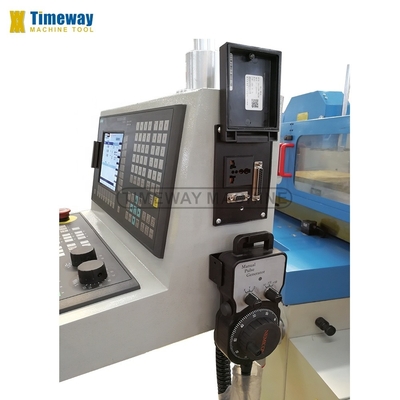

Feed of electro hand wheel | mm/div. | 0.005 (CNC3 model) | ||||
Table transverse movement | Auto feed | mm/stroke | 0.1~8 | |||
Rapid speed | mm/min | 0.05~1 | ||||
Feed of handwheel | mm/div. | 0.005 | ||||
Wheelhead vertical movement | Auto feed | mm/stroke | 0.005~0.05 | |||
Rapid speed | mm/min | 0.05~1 | ||||
Feed of handwheel | mm/div. | 0.005 | ||||
Grinding wheel | Speed | rpm | 1450(50Hz), 1750(60Hz) | |||
Size(OD×W×ID) | mm | 350×40×127 | ||||
Spindle motor | kw | 5.5 | ||||
Hydraulic motor | kw | 2.2 (CNC2 model) | ||||
Cooling pump motor | kw | 0.125 | ||||
Parellism of working surface to mounting base | mm | 300:0.005 | ||||
Roughness of working surface | µm | Ra0.63 | ||||
Max.loading capacity of table(include magnetic chuck) | kg | 500 | 600 | |||
Height of machine | mm | 1890 | ||||
Floor space(L×W) | mm | 3600×2400 | 4400×2400 | |||
Gross weight | kg | 3800 | 4300 | |||
Package dimensions(L×W×H) | mm | 2850x2270x2180 | 2950x2270x2150 | |||
· Electronic handwheel · Closed safe guard · Working lamp · Balancing arbor · Standard grinding wheel · Electrical magnetic chuck · Built-in magnetic chuck controller · Coolant tank · Wheel flange and extractor · Wheel dresser stand · Operation manual (English) · Leveling wedge and screw · Lubrication systemTool box&tools | · Diamond pen · Extra wheel flange · Rear splashing guard · Oil tank guard · Dust exhaust · Parallel wheel dresser · Radius dresser · Angle dresser · Side dresser · Sinusoidal magnetic table · Electronic handwheel · Magnetic separator · Paper filter |
