Discover the Power of 200x20x31.75mm Wheel Size CNC Hydraulic Surface Grinding Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $69,000.00/sets 1-2 sets |
| Packaging Details: | wooden case (can be fumigated) or pallet |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal, Surface Grinding Machine | CNC Or Not: | CNC |
|---|---|---|---|
| Condition: | New | Wheel Size(mm): | 200x20x31.75 |
| Year: | 2020 | Voltage: | As Customer's Request |
| Dimension(L*W*H): | As Table | Weight (KG): | 1900 |
| Power (kW): | 1.5/2.2 | Warranty: | 1 Year |
| Key Selling Points: | Low Maintenance Cost | Showroom Location: | Mexico, Australia, South Africa, Spain, Russia, Canada, United States, Germany |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Bearing, Engine, Gear, Other |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Max. Grinding Length: | As Table |
| Max. Grinding Diameter: | As Model | Table Size: | 250*500 Mm |
| Electro Magnetic Chuck Size: | 250*500 Mm | Table Longitudinal Travel: | 570 Mm |
| Table Cross Travel: | 275 Mm | Distance From Spindle To Table: | 450 Mm |
| Loading Capacity (include Chuck): | 200 Kg | Port: | China Port |
Product Description

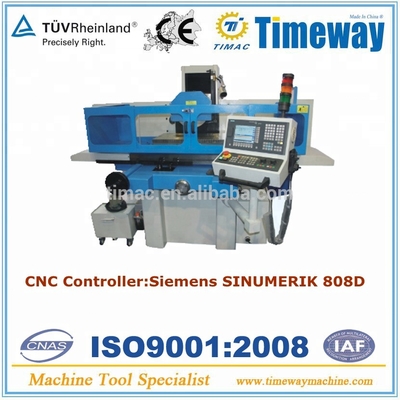

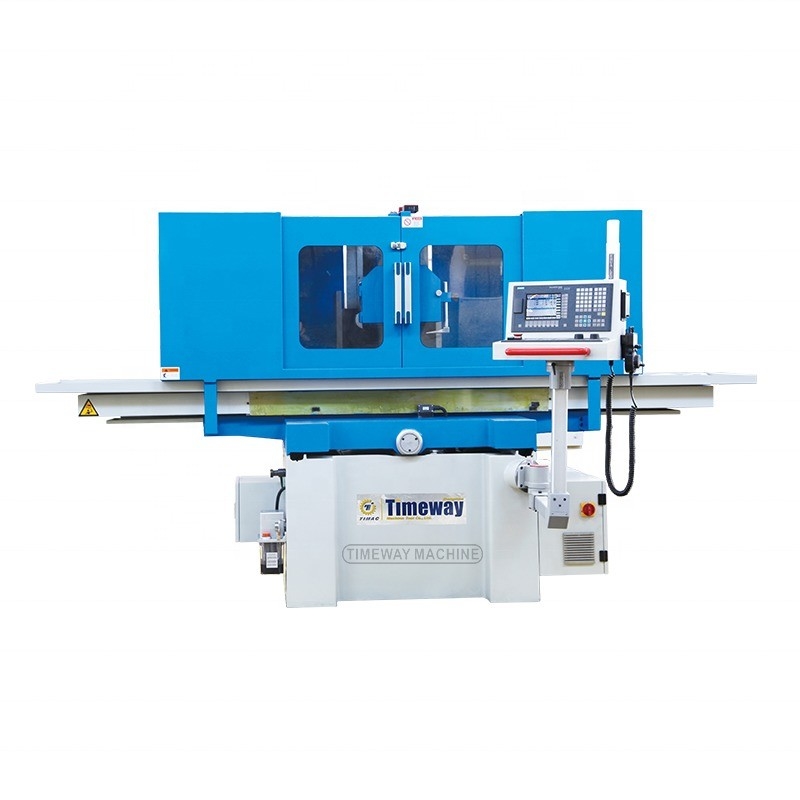

CNC Hydraulic Surface Grinding Machine
1.SG-CNC series saddle moving surface grinder, the table size covers 200x500, 250x500, 300x630, 300x1000, 400x800, 400x1000.
2.Well designed perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes cross movement driven by AC servo motor (Y-axis), worktable make reversing movement driven by hydraulic or servo motor (X-axis), and spindle make elevating movement (X-axis) and is driven by AC servo motor.
3.SG-CNC2 model: Y/Z-axis numberical control and linkage, drove by AC servo motor and ball screw; X-axis drove by hydraulic.
4.SG-CNC2 model: Y/Z-axis numberical control and linkage, drove by AC servo motor and ball screw; X-axis drove by hydraulic.
5. The worktable is driven by imported hydraulic valve unit, realize smoothly motion without shocking.
6. Independent hydraulic station assembles with air cooling, running stably with small temperature rise, provide enough power for precision grinding.
7.SG-CNC3 model: X/Y/Z-axis numberical control and linkage, drove by AC servo motor amd ball screw.
Standard accessories:
Operation manual (English edition)
Working lamp
Balancing arbor
Balancing stand
Standard grind wheel
Wheel flange
Wheel extractor
Electrical magnetic chuck
Coolant tank

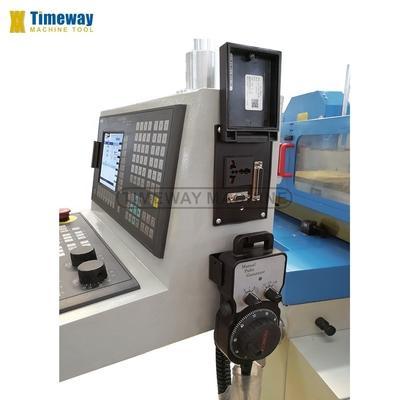

X/Y/Z-axis MPG
Table closed guard
Wheel dresser stand
Leveling wedge and screw
Tools & tool-box
Optional accessories:
Magnetic separator
Paper filter
Oil tank guard
Dust exhaust
Parallel wheel dresser
Extra wheel flange and wheel
Parameter:
| Specification | Unit | SG-2050CNC2 SG-2050CNC3 | SG-2550CNC2 SG-2550CNC3 |
| Table size | mm | 200x460 | 250x500 |
| Electro magnetic chuck size | mm | 200x460 | 250x500 |
| Table longitudinal travel | mm | 510 | 570 |
| Table cross travel | mm | 238 | 275 |
| Distance from spindle to table | mm | 450 | 450 |
| Loading capacity (include chuck) | kg | 120 | 200 |
| Table longitudinal feed speed | m/min | CNC2: 5-25; CNC3: 0.02-18 | CNC2: 5-25; CNC3: 0.02-18 |
| Table longitudinal micro feed rate | mm/gra | CNC2: -; CNC3: 0.005; | CNC2: -; CNC3: 0.005; |
| Table cross rapid feed speed | mm/min | 0.1-1000 | 0.1-1000 |
| Table cross micro feed rate | mm/gra | 0.005 | 0.005 |
| Wheelhead vertical rapid feed speed | mm/min | 0.1-1000 | 0.1-1000 |
| Wheelhead vertical micro feed rate | mm/gra | 0.005 | 0.005 |
| Spindle speed (50/60HZ) | rpm | 2850/3450 | 2850/3450 |
| Grinding wheel size | mm | 200x20x31.75 | 200x20x31.75 |
| Main motor power | kw | 1.5 | 2.2 |
| Floor space (LxW) | mm | 2600x1800 | 2800x2000 |
| Gross weight | kg | 1600 | 1900 |
| Packing size (LxWxH) | cm | 200x180x215 | 220x200x215 |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
