Product Details:

Place of Origin: Henan, China
Brand Name: TIMAC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $55,000.00/sets 1-2 sets
Packaging Details: in wooden case (can be fumigated) or in plywood case
Supply Ability: 300 Set/Sets per Month
Get Best Price Contact Now

Detail Information
Type: Universal CNC Or Not: Normal
Condition: New Wheel Size(mm): 500
Voltage: As Customer's Request Dimension(L*W*H): As Model
Weight (KG): 17000 Power (kW): 5
Warranty: 1 Year Key Selling Points: High Productivity
Showroom Location: Mexico, Australia, South Africa, Russia, Canada, United States, Italy, Germany Applicable Industries: Manufacturing Plant, Machinery Repair Shops
Marketing Type: Ordinary Product Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Motor, Bearing, Engine, Other After-sales Service Provided: Engineers Available To Service Machinery Overseas
Color: Customized Machine Name: Universal Cylindrical Grinder
Max. Grinding Diameter: 630mm Distance Between Centers: 1500/2000/3000/4000mm
Center Height: 270mm Loading Capacity: 1000kg
Workhead Swivel Angle: +90° Workhead Spindle Taper: MT6
Workhead Spindle Speed: 20-224rpm

Product Description

PRODUCT SPECIFICATIONS
Rectificadora Cylindrical Grinder with Workhead Swivel Angle 90° and Center Height 270mm 0

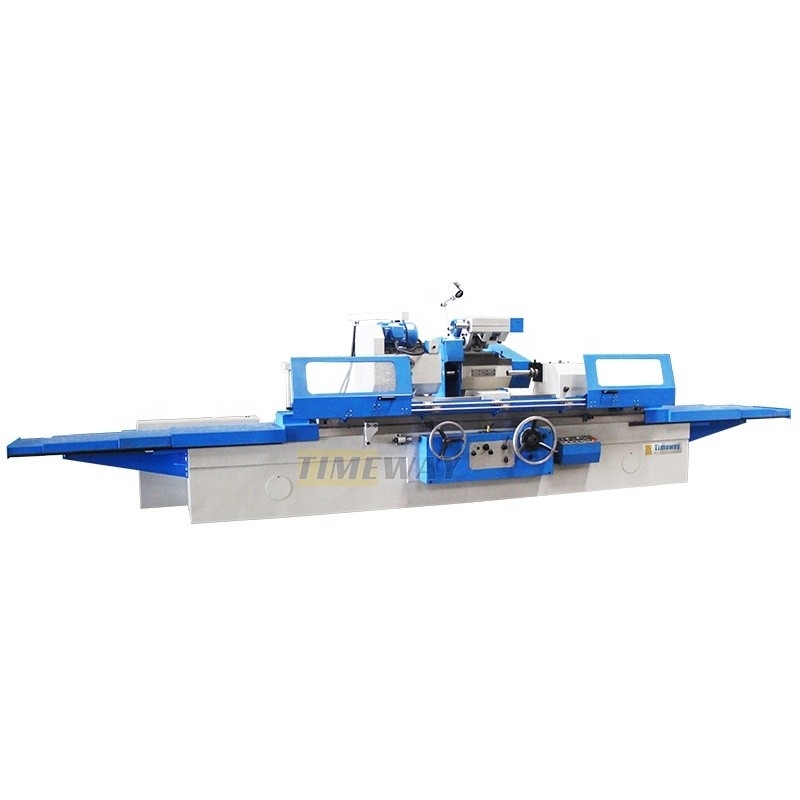

Hot-selling Rectificadora cylindrical Grinder Universal Cylindrical Grinding Machine UG-500
*For UG-500, spindle of workhead adopts sliding bearing structure. the clearance of the front bearing can be adiusted to make it suitable for the grinding use center or chuck.
*For UG-500, the workhead can be rotate to any position within its conterclock direction 90°, so it can be suitable for grinding inner or outer surface of taper.
*For UG-500, the cylindrical grinding machine has internal grinding apparatus, internal grinding spindle is supported by precise roll-bearing.

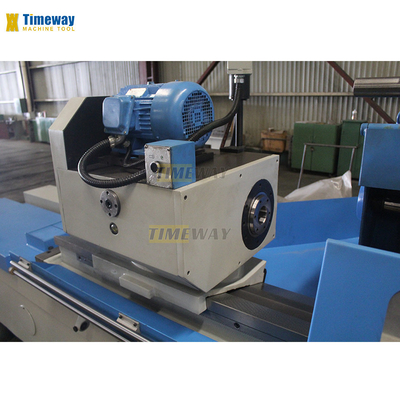

1.The workhead adopts inverter motor to realize stepless speed adjustment.
2.The workhead spindle, wheelhead spindle, internal grinding spindle, coolent pump, hydrodynamic and hydrostatic oilpump are driven by separate motors.

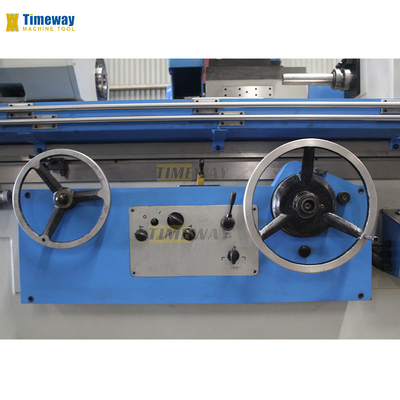

3.Each moving parts of the machine has electric, hydraulic and mechanic interlock structure the machine is well designed with pleasing appearance, all control lever are centralized in panel make operating easy.
4.The wheel dresser can be assembled on the worktable surface of on the tailstock.
Specification
Unit
UG-500
UG-500A
UG-630A
Distance between centers
mm
1500/2000/3000/4000
3000/4000
2000/3000/4000/5000
Center height
mm
270
270
370
Dia. ground (O.D)
mm
25-500
25-500
30-630
Dia. ground (I.D)
mm
30-200
30-200
30-250
Grinding length (O.D)
mm
1500/2000/3000/4000
3000/4000
2000/3000/4000/5000
Grinding length (I.D)
mm
320
320
320
Loading capacity
kg
1000
2000
3000
Workhead swivel angle
°
﹢90°
﹢90°
﹢90°
Workhead spindle taper
-
MT6
MT6
MT6
Workhead spindle speed
rpm
20-224
20-224
14-140
Wheelhead spindle speed
rpm
1330/665
1330/665
1100/550
Wheelhead rapid feed travel
mm
100
100
100
Wheelhead cross travel
mm
370
370
450
Wheelhead swivel angle
°
­30°
­30°
±30°
Wheelhead feed of handwheel per rev. (rough/fine)
mm/rev
4/0.5
4/0.5
4/0.5
Wheelhead feed of handwheel per gra. (rough/fine)
mm/gra
0.02/0.0025
0.02/0.0025
0.02/0.0025
External grinding wheel size
mm
500x75x305
500x75x305
600x75x305
Max. peripheral speed of grinding wheel
m/s
35/17.5
35/17.5
35/17.5
Internal grinding spindle speed
rpm
10000
10000
10000
Internal grinding wheel size
mm
Max:175x32x32; Min:30x25x10
Max:175x32x32; Min:30x25x10
Max:175x32x32; Min:30x25x10
Table feed of handwheel per rev.
mm
5
5
5
Table swivel angle (CW)
°
3°/2°/2°/1°
2°/1°
2°/1°/1°/1°
Table swivel angle (CCW)
°
6°/5°/3°/2°
3°/2°
4° /3° /2.5°/1.5°
Table longitudinal feed speed
m/min
0.1-3
0.1-3
0.1-2.5
Tailstock quill taper
-
MT6
MT6
Metric 80
Tailstock quill travel
mm
70
70
70
External grinding motor power
kw
5/7.5
5/7.5
7/11
Internal grinding motor power
kw
1.5
1.5
1.5
Workhead motor power
kw
4
7.5
15
Gross weight
tons
10/11/15/17
15/17
18/19/24/26
Packing size (LxWxH)
cm
510/585/785/1000x228x210
785/1000x228x210
695/890/1100/1500x242x226

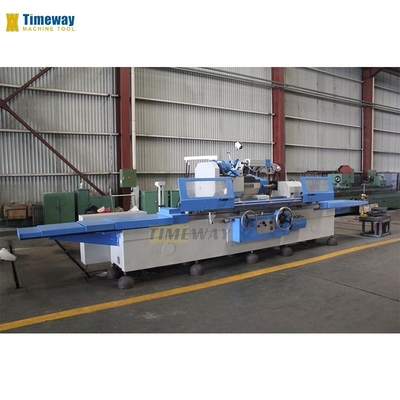

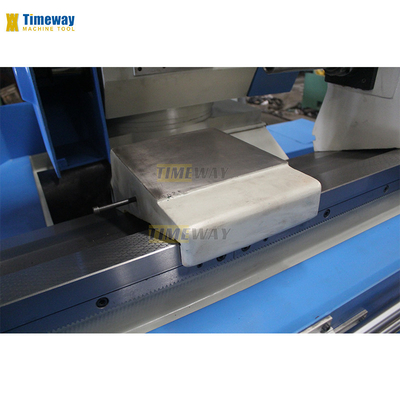

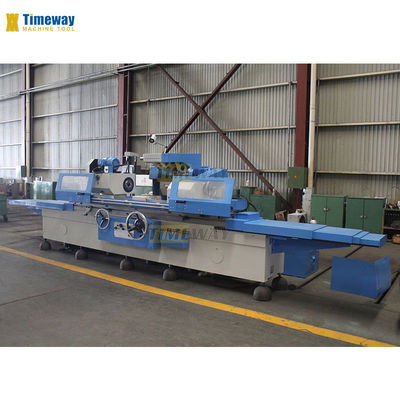

Machine Details
Rectificadora Cylindrical Grinder with Workhead Swivel Angle 90° and Center Height 270mm 1
Rectificadora Cylindrical Grinder with Workhead Swivel Angle 90° and Center Height 270mm 2
Company Introduction
Rectificadora Cylindrical Grinder with Workhead Swivel Angle 90° and Center Height 270mm 3
Rectificadora Cylindrical Grinder with Workhead Swivel Angle 90° and Center Height 270mm 4
Exhibition & Training
Rectificadora Cylindrical Grinder with Workhead Swivel Angle 90° and Center Height 270mm 5
Customers Visited
Rectificadora Cylindrical Grinder with Workhead Swivel Angle 90° and Center Height 270mm 6
Package & Transportation
Rectificadora Cylindrical Grinder with Workhead Swivel Angle 90° and Center Height 270mm 7
Rectificadora Cylindrical Grinder with Workhead Swivel Angle 90° and Center Height 270mm 8
FAQ


Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; 2) Irrevocable LC at sight; 3) Western Union, MoneyGram, etc.

Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
