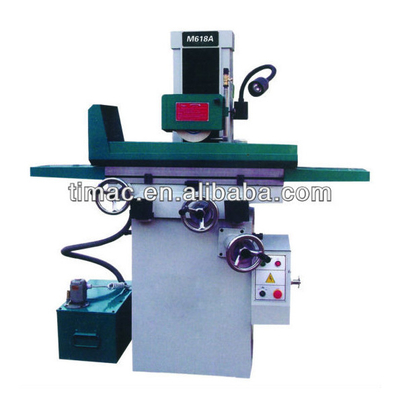

Mini Surface Grinding Machine M618A Voltage as customer's request Stable Performance
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE & ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $19,800.00/sets 1-2 sets |
| Packaging Details: | in wooden case (can be fumigated)or in plywood case |
| Supply Ability: | 350 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal, Surface Grinding Machine | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Voltage: | As Customer's Request |
| Dimension(L*W*H): | 1.55m*1.06m*1.59m | Weight (KG): | 950 |
| Warranty: | 1year | Key Selling Points: | High Productivity |
| Showroom Location: | Mexico, South Africa, Spain, Canada, Germany | Applicable Industries: | Farms, Manufacturing Plant, Construction Works , Machinery Repair Shops, Hotels, Printing Shops |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Engine, Gear, Pressure Vessel, Gearbox | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Color: | Customized | Machine Name: | Mini Surface Grinding Machine |
| Max. Grinding Length: | 540 Mm | Power(W): | 1100 |
| Table Size: | 540x250 Mm | Max.table Travel: | 560x240 Mm |
| Max.workpiece To Be Ground: | 540x240 Mm | After Warranty Service: | Online Support |
| Local Service Location: | Mexico, United States, Germany, South Africa | Port: | China Port |
Product Description
Hand Surface Grinding Machine (small surface grinding machine)
Features:
*The manual surface grinding machine adopt the V-type guide,bring transmission by synchronous belt. *Meanwhile, the machine adopt the exceeding precise P4 level ball bearing for spindle, having complete attachment with electromagnetic chuck or the dense chuck of permanent magnetism.
*The machine have the simple and convenient operation, low noise,high precision for processing, steady mechanical performance, reliable hydraulic system of table longitudinal movement
Standard Accessories:
Tool box, Balancing stand/balancing bar, Handwheel nut, Flange wrench, Screwdriver, Balancing screw,
Open-end wrench, Inner hexagon spanner, Wheel dresser holder, Machine stand pad, Wheel flange,
Wheel dresser, Chuck.
Optional Accessories:
Tiltable permanent chuck, Demagnetizer, Overhead parallel dresser, Angle dresser, Radius dresser, Precision vice, Dust suction device, Digital readout system, Working light, Wheel flange.
Parameter:

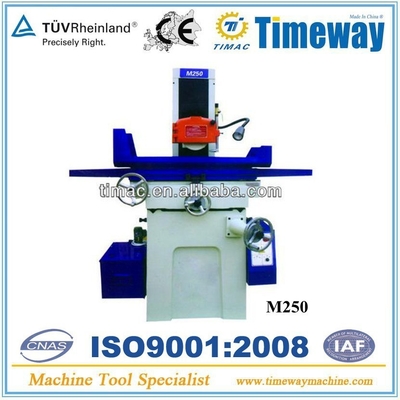

| Model | Unit | M618A | M820 | M250 |
| Table size | mm | 460×180 | 480×200 | 540×250 |
| Max.table travel | mm | 500×190 | 530×220 | 560×240 |
| Max.workpiece to be ground | mm | 500×190 | 520×220 | 540×240 |
| Max.distance from table to spindle center | mm | 335 | 490 | |
| Table slide-way | V-type rail with steel ball | Double V-type rail | ||
| Cross feed on handwheel per revolution | mm | 2.5 | ||
| Cross feed on handwheel per graduation | mm | 0.02 | ||
| Vertical feed on handwheel per revolution | mm | 1.25 | ||
| Vertical feed on handwheel per graduation | mm | 0.01 | ||
| Wheel speed | rpm | 2850 | ||
| Wheel size(dia.×width×bore) | mm | 200×16×31.75 | 200×20×31.75 | |
| Spindle motor | w | 1100 | 1500 | |
| coolant pump | w | 40 | ||
| Net weight | kg | 650 | 750 | 900 |
| Gross weight | kg | 750 | 800 | 950 |
| Overall dimension(L×W×H) | m | 1.55×1.06×1.59 | 1.68×1.14×1.80 | 1.80×1.40×1.80 |
| Packing size(L×W×H) | m | 1.06×1.17×1.87 | 1.14×1.24×1.96 | 1.30×1.63×1.96 |
