4 KW Small Universal Cylindrical Grinder for Video Technical Support and After Service
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE & ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $45,000.00/sets 1-2 sets |
| Packaging Details: | in wooden case (can be fumigated) or in plywood case |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Year: | 2020 |
| Voltage: | As Customer's Request | Dimension(L*W*H): | 2350mm*2030mm*2050mm |
| Weight (KG): | 4100 | Warranty: | 1 Year |
| Key Selling Points: | Low Noise Level | Showroom Location: | Egypt, Russia, Malaysia, Canada, Kyrgyzstan, Colombia, Kazakhstan, Peru, Italy, Tajikistan, Pakistan, Philippines, Ukraine |
| Applicable Industries: | Farms, Manufacturing Plant, Home Use, Construction Works , Energy & Mining, Retail, Machinery Repair Shops, Building Material Shops | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Bearing, Engine, Gear, Pressure Vessel, Gearbox, PLC, Pump |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support | Max. Grinding Length: | 500-3000 Mm |
| Power(W): | 4 KW | Max. Grinding Diameter: | 320 Mm |
| Weight: | 4100 KG | After Warranty Service: | Video Technical Support |
| Local Service Location: | Spain, Thailand, Italy, Colombia | Port: | China Port |
Product Description

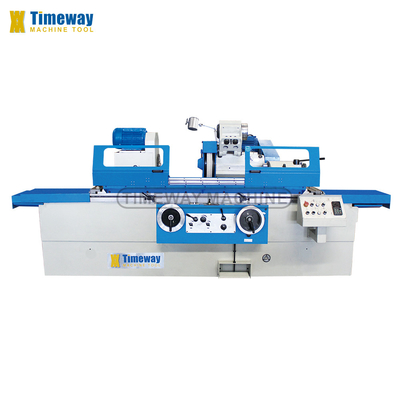

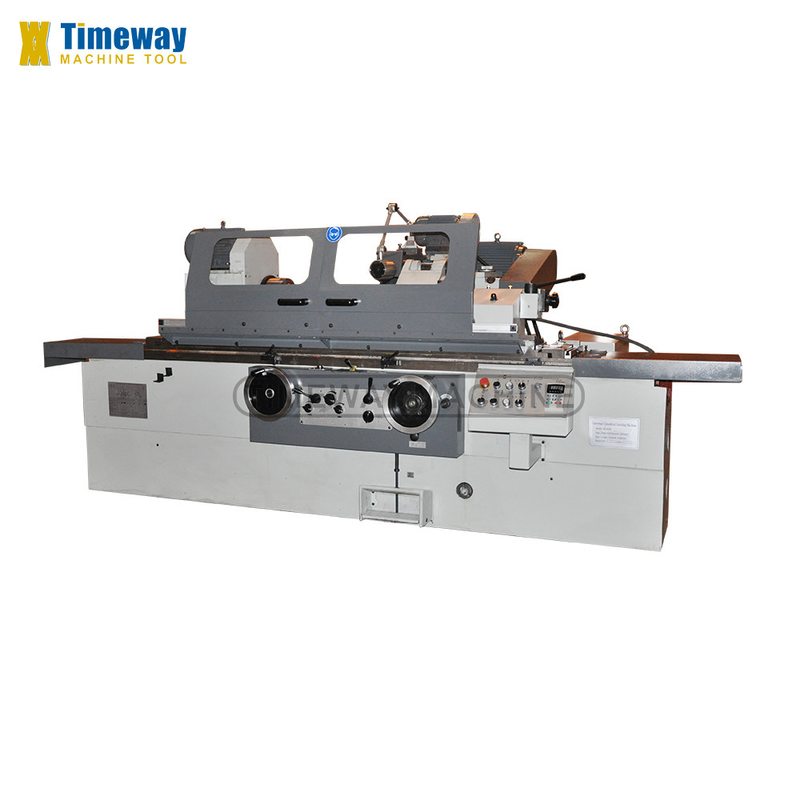

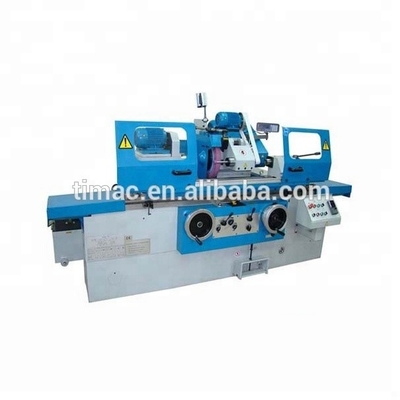

Small Universal Cylindrical Grinder / Internal and External Grinding Machine
Standard Accessories:
Coolant tank, Wheel periphery dresser base (without diamond pen),Flange and wheel extractor, Standard grinding wheel, Balancing arbor, Working lamp, Leveling wedge, Open steady rest, Operation manual(English edition).
Optional Accessories:
Balance stand, Magnetic separator apparatus, Paper filter apparatus, Center grinding attachment, Close steady rest, End wheel dresser, Radius wheel dresser
Parameter:

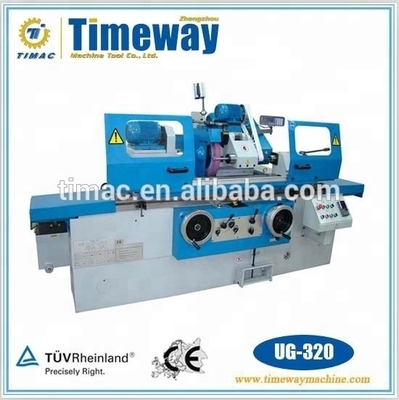

| Specification | Unit | UG-200 | UG-320 | |
| * General capacity | ||||
| Distance between centers | mm | 500,750 | 1000/1500/2000/3000 | |
| Center height | mm | 135 | 180 | |
| Dia.ground(O.D) | mm | 5-200 | 8-320 | |
| DIa.ground(I.D) | mm | 25-100 | 30-100 | |
| Max.length to be ground(O.D) | mm | 500,750 | 1000 1500 2000 3000 | |
| Max.length to be ground(I.D) | mm | 125 | ||
| Max.weight of workpiece | kg | 100 | 150 | |
| * Workhead | ||||
| Swiveling angle | º | + 90 º | ||
| Center taper(MT) | MT | 4 | ||
| Spindle speed | r/min | 50HZ:25-380 stepless | 50HZ:25-220 stepless | |
| * Wheel head | ||||
| Spindle speed of wheelhead | r/min | 1670 | ||
| Rapid travel of wheelhead | mm | 50 | ||
| Max.travel | mm | 205 | 246 | |
| Swiveling angle | º | ±10º | ±30º | |
| Hand feed per.rev | mm | rough:2 fine:0.5 | ||
| Hand feed per.gra | mm | rough:0.01 fine:0.0025 | ||
| Wheel size(ODXWXID) | mm | 400×50×203 | ||
| Peripheral velocity | m/s | 35 | ||
| * Internal grinding device | ||||
| Spindle speed | r/min | 10000 15000 | ||
| Dimension of wheel | mm | Max.(50×25×13) Min.(17×20×6) | ||
| * Table | ||||
| Hand feed per.rev | mm | 6 | ||
| Max.. swiveling | Clockwise | º | 3º | 3º(1000 1500),2º(2000,3000) |
| Anticlockwise | º | 9º(500), 8º(750) | 7º(1000),6º(1500),5º(2000),3º(3000) | |
| Longitudinal speed range of table | m/min | 0.1-4 | ||
| * Tailstock | ||||
| Center taper(MT) | MT | 4 | ||
| Quill travel | mm | 30 | ||
| * Motor | ||||
| Wheelhead motor power |
| kw | 4 | 5.5 |
| Internal grinding motor power |
| kw | 1.1 | |
| Workhead motor power |
| kw | 1.1 | 1.5 |
| * Machine | ||||
| Gross weight | T | 4.1(500),4.3(750) | 5.3(1000),6.1(1500),7.9(2000),9.9(3000) | |
| Packing size(L*W*H) | cm |
| 322×200×205(1000) | |
| 235×203×205(500) | 422×200×205(1500) | |||
| 275×203×205(750) | 540×200×205(2000) | |||
|
| 739×200×205(3000) | |||

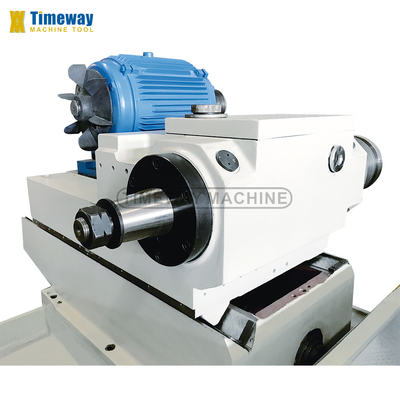

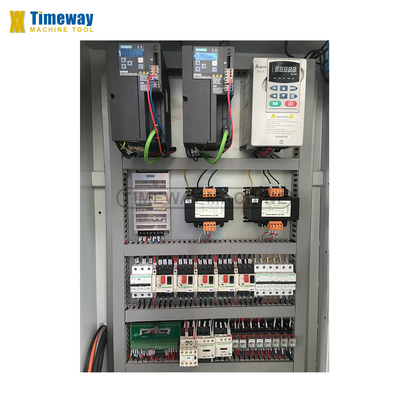

Details of Accessories:
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
