CNC Camshaft Grinding Machine for Roundness O.D 1.5um and Max. workpiece weight 150kg
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | CE ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $50,000.00/sets 1-2 sets |
| Packaging Details: | Wood case or wooden pallet |
| Supply Ability: | 200 Set/Sets per Year |
|
Detail Information |
|||
| Type: | CNC Camshaft Grinding Machine | CNC Or Not: | CNC |
|---|---|---|---|
| Condition: | New | Voltage: | 380V 50Hz |
| Dimension(L*W*H): | As Actual Situation | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Color: | According To Per Customer's Need | Center Height: | 180mm |
| Max. Workpiece Weight: | 150kg | Wheel Peripheral Velocity: | 35m/s |
| Wheel Spindle Speed: | 1100rpm | Roundness(O.D): | 1.5um |
| Surface Roughness: | Ra0.32um | Ginding Lenght And Diameter: | Customizations |
| CNC System: | Taiwan SYNTEC CNC System Or Others | Wheel Size: | 600*75*305mm |
| Max. Grinding Length: | 1000mm | Weight: | As Actual Situation |
| Max. Grinding Diameter: | 320mm | Power: | 21.475kw |
| Port: | China Port | ||
Product Description

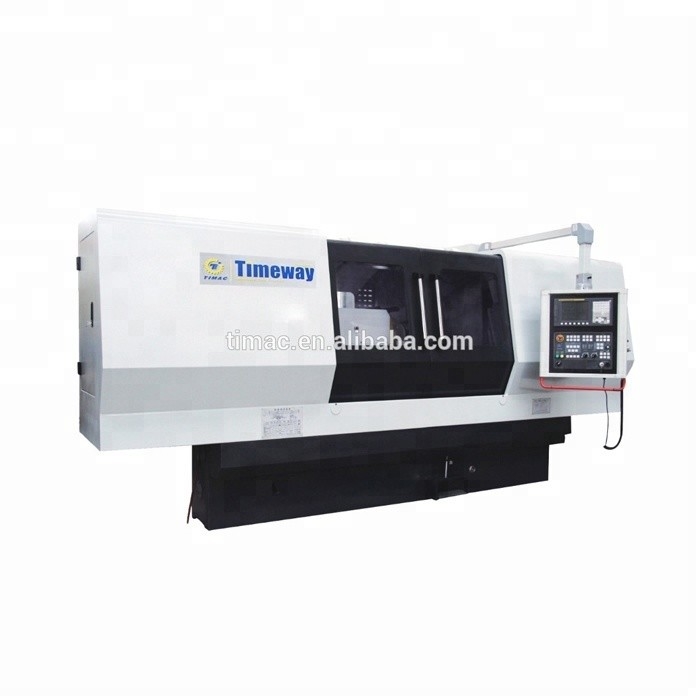

CNC Camshaft(Crankshaft) Grinding Machine

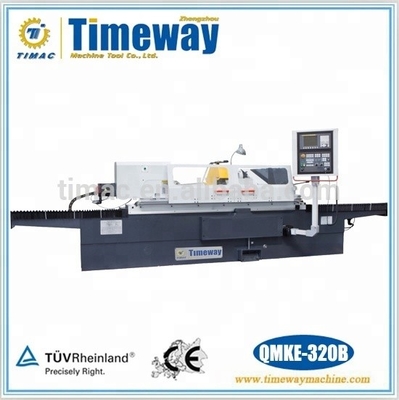

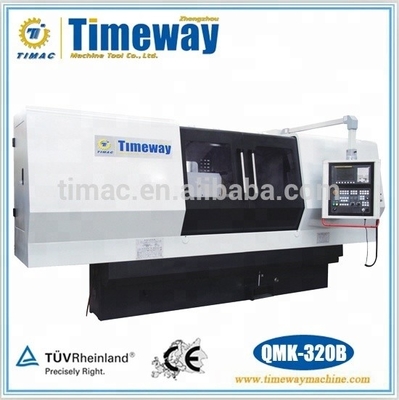

QMK-200H QMK-320B QMKE-200H QMKE-320B
Main Functions and Features
1. This series machine is the ideal processing equipment of automobiles, motorcycles and other engine camshaft, with high efficiency, good accuracy, simple operation, high cost, enabling one person to operate more than one.
2. Using Taiwan SYNTEC CNC system (other systems can also be configured according to the custom, such as FANUC or SIEMENS CNC system).
3. Wheel frame using high-speed hybrid spindle assembly, with high rotation precision, rigidity and other characteristics.
4. Using proprietary CNC grinding cams software.
5. Configure a separate electrical box, tank and filtration tank.
6. Wheel motor adopts AC frequency adjustment device, that can basically achieve constant linear speed grinding.
Main Accessories
- Wheel perphery dresser
- Wheel hub
- Balancing arbor
- Open-type steady rest
- Wheel extractor
- Magnetic separator
Extra Accessories
- Wheel balancing stand
- Diameter measuring instrument
Technical Parameters
| Specifications | Units | QMK-200H*500 QMKE-200H*500 | QMK-320B*1000 QMKE-320B*1000 |
| Dia. to be ground | mm | Φ8-Φ200 | Φ8-Φ320 |
| Max. length to be ground | mm | 500 | 1000 |
| Center height | mm | 135 | 180 |
| Distance between centers | mm | 500 | 1000 |
| Headstock center | Morse 4# | Morse 5# | |
| Tailstock center | Morse 4# | Morse 4# | |
| Max. workpiece weight to be ground | kg | 30 | 150 |
| Wheel size | mm | Φ400*50*Φ203 | Φ600*75*Φ305 |
| Wheel peripheral speed | m/s | 35 | 35 |
| Wheel spindle rotation speed | rpm | 1100 | 1100 |
| Min. pulse amount in X-axis | mm | 0.001 | 0.001 |
| Min. pulse amount in Z-axis | mm | 0.001 | 0.001 |
| Roundness | um | 1.5 | 1.5 |
| Dia. uniformity in the longitudinal section | um | 5 | 5 |
| Surface roughness | um | Ra0.32 | Ra0.32 |
| Total motor power | kw | 10.825 | 21.475 |
| Longitudinal servo motor power | kw | 1.6(6N.m) | 3.9(15N.m) |
| Transverse servo motor power | kw | 1.6(6N.m) | 3.9(15N.m) |
Notes: QMK series and QMKE series max. difference: QMK series adopts full protection shield; QMKE series adopts semi-protection shield.

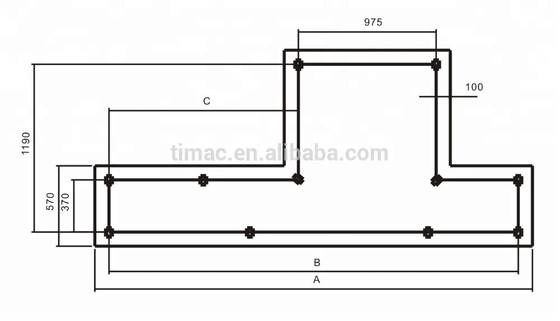

Foundation Drawing
The foundation depth depends upon the soilproperties, but it should be less than 400mm
