Small CNC External Cylindrical Grinder for Small-Scale Manufacturing Weight KG 2000
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10,000.00/sets 1-2 sets |
| Packaging Details: | Wood case or wooden pallet |
| Supply Ability: | 500 Set/Sets per Year |
|
Detail Information |
|||
| Grinding Diameter(Outer)(mm): | 80 | Grinding Length(mm): | 300 |
|---|---|---|---|
| Max. Length Of Workpiece (mm): | 300 | Max. Weight Of Workpiece(kg): | 10 |
| Center Height (mm): | 115 | Wheel Size(mm): | 25X25x75 |
| Wheel Speed (rpm): | 35 | Roundness(mm): | 1.5 |
| Surface Roughness(μm): | 0.32 | Voltage: | 380V 50Hz |
| Dimension(L*W*H): | As Actual Situation | Weight (KG): | 2000 |
| Power (kW): | 3.4 | Key Selling Points: | High-accuracy |
| Warranty: | 1 Year, 1 Year | Showroom Location: | France, Romania, Australia, South Korea, Russia, Turkey, Brazil, Algeria, Chile |
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Other |
| Condition: | New | CNC Or Not: | CNC |
| Center Height: | 115mm | Max. Workpiece Weight: | 10kg |
| Roundness(O.D): | 1.5um | Surface Roughness(O.D): | Ra0.32um |
| CNC System: | Beijing KND 1000Ti | Wheel Size: | 250*25*75mm |
| Max. Grinding Length: | 300mm | Max. Grinding Diameter: | 80mm |
| Port: | China Port | ||
Product Description

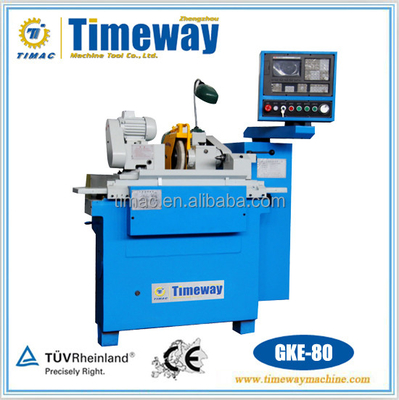

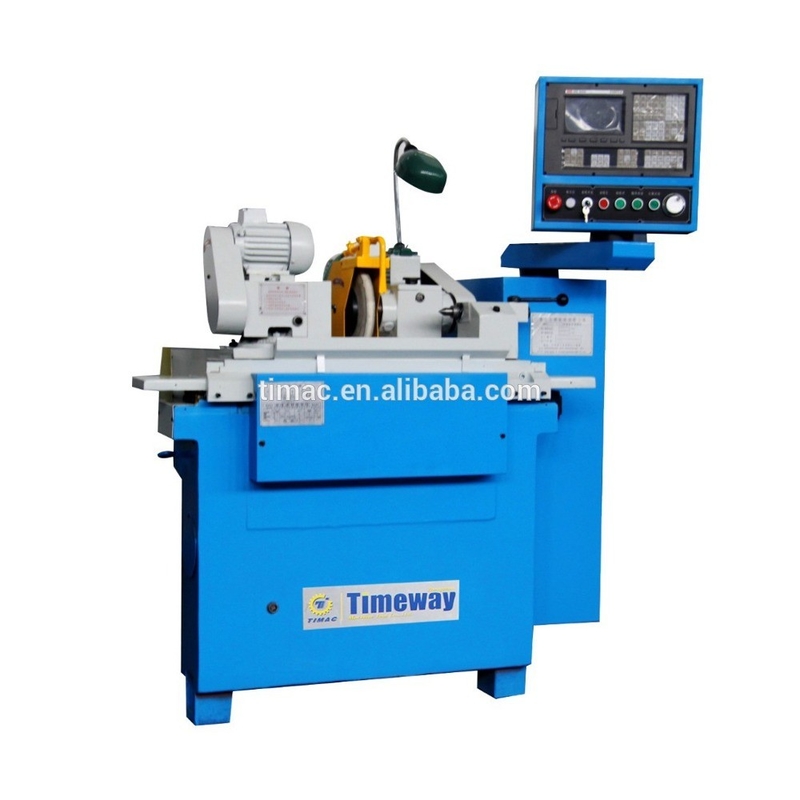

Small Economical Type CNC External Cylindrical Grinder Machine
GKE-80*300
Main Functions and Features
1. The machine structure is flexible, accuracy stability, high grinding efficiency, especially for less than 20mm culindrical or conical cylindrical workpieces, with delicate and simple features.
2. The electrical system is controlled by KND 1000Ti, other systems can also be configured according to the customer.
3. X-axis, Z-axis guide is using cross rolling linear guide, improve the sensitivity and minimum feed micro feed.
4. Wheelhead spindle is supported by three bushing hydro-dynamic bearing.
5. The machine can be equipped with radial and axial measurement instrument.
Main Accessories
- Wheel periphery dresser
- Wheel hub
- Balancing arbor
- Open-type steady rest
- Wheel extractor
- Magnetic separator
Extra Accessories
- Wheel balancing stand
- Diameter measuring instrument
Technical Parameters
| Specifications | Units | GKE-80*300 |
| Dia. to be ground | mm | Φ2-Φ80 |
| Max. length to be ground | mm | 300 |
| Center height | mm | 115 |
| Distance between centers | mm | 300 |
| Headstock center | Morse 3# | |
| Tailstock center | Morse 3# | |
| Max. workpiece weight to be ground | kg | 10 |
| Wheel size | mm | Φ250*25*Φ75 |
| Wheel peripheral speed | m/s | 35 |
| Wheel spindle rptation speed | rpm | 2800 |
| Min. pulse amount in X-axis | mm | 0.001 |
| Min. pulse amount in Z-axis | mm | 0.001 |
| Roundness | um | 1.5 |
| Dia. uniformity in the longitudinal section | um | 5 |
| Diameter measuring instrument | um | Ra0.32 |
| Total motor power | kw | 3.4 |
| Longitudinal servo motor power | kw | 1(3.3N.m) |
| Transverse servo motor power | kw | 1(3.3N.m) |
Foundation Drawing
The foundation depth depends upon the soilproperties, but it should be less than 400mm.
