Newest Heavy-duty Universal Cylindrical Grinding Machine for Food Beverage Processing
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC, TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $19,360.00/sets 1-2 sets |
| Packaging Details: | Wood case or wooden pallet |
| Supply Ability: | 500 Set/Sets per Year |
|
Detail Information |
|||
| Type: | Universal | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Year: | 2022 |
| Voltage: | 380V 50Hz | Dimension(L*W*H): | 3000*1800*1650mm |
| Weight (KG): | 3700 | Power (kW): | 6.52 |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Showroom Location: | UAE, Argentina, Australia, Russia, Turkey, United States, Italy, Bangladesh, Indonesia | Applicable Industries: | Manufacturing Plant, Food & Beverage Shops, Construction Works , Energy & Mining, Machinery Repair Shops, Building Material Shops, Food & Beverage Factory, Advertising Company, Printing Shops, Garment Shops |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Engine, Gear | Center Height: | 135mm |
| Max. Workpiece Weight: | 80kg | Wheel Peripheral Velocity: | 35m/s |
| Wheel Spindle Speed: | 1670rpm | Internal Grinding Diameter: | 25-100mm |
| Max. Grinding Length(I.D): | 125mm | Max. Grinding Length: | 750mm |
| Weight: | 3700kg | Max. Grinding Diameter: | 200mm |
| Power: | 6.52kw | Port: | China Port |
Product Description

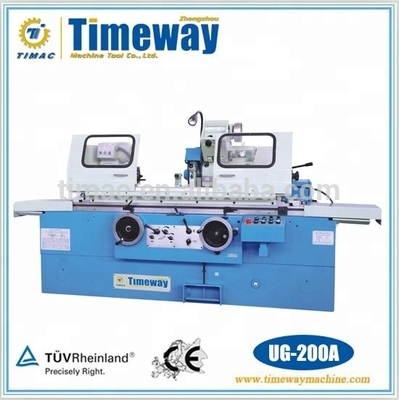

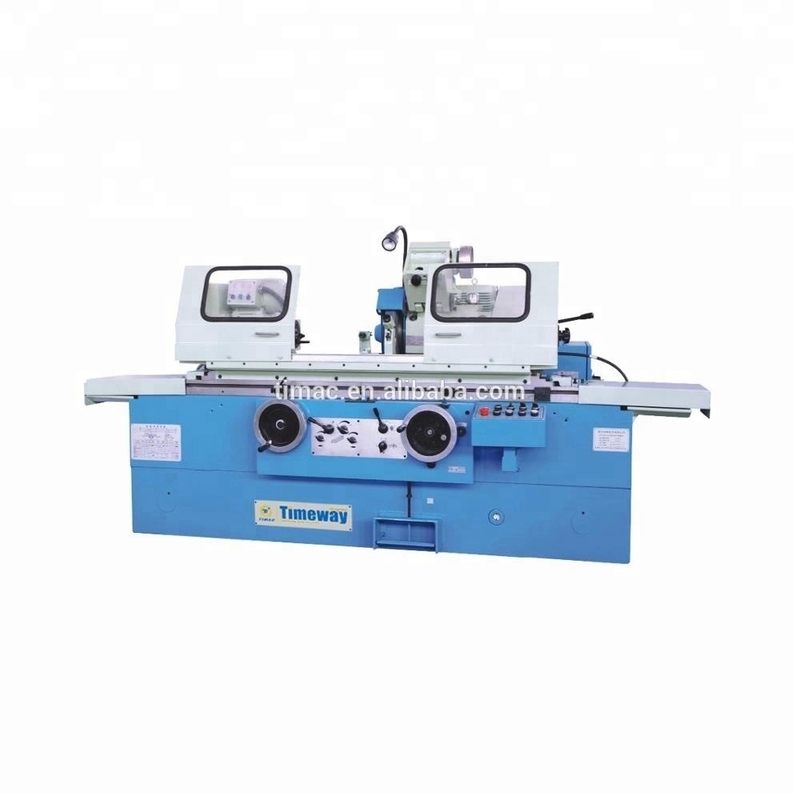

Newest High Precision Heavy-duty Universal Cylindrical Grinding Machine
UG-200A G-200A
Main Functions and Features
1. This machine is a major grinder professional advantages of manufacturing units in the G-320, UG-320 type cylindrical grinder on the basis of draw to improve heavy duty grinder, with high cutting precision, high rigidity and high efficiency. Suitable for grinding cylindrical and conical workpiece.
2. The workpiece of machine, cylindrical grinding wheel, the inner circle of the grinding wheel, oil pump and cooling pump by an independent motor drive.
3. The longitudinal movement of the machine table by the hydraulic continuously variable transmission can also be handwheel drive, table lubrication orifice compensated unloading form.
4. Grinding wheel frame transverse feeding fine turning can be made by the hydraulic feed and fast and automatic cycle, two feed hand wheel is also available to achieve the thickness.
5. Grinding wheel rack main shaft diameters, motor power increase, grinding wheel rack oil pool temperature rise is small, high grinding rate.
6. Machine moving parts with electrical, hydraulic and mechanical structure, safe operate.
Oil Cylinder
Main Accessories
- Cylindrical dresser
- Wheel balancing disc
- Complete set of electric equipment
- Wheel peripheral dresser
- Wheel hub
- Wheel balancing arbor
- Int. gringing attachment
- Measuring bridge plate
- Open-type steady rest
- Leveling wedge
Extra Accessories
- Wheel balancing stand
- Radius dresser
- Close-type center rest
- Extension bar
Technical Parameters
| Specifications | Units | G-200A | UG-200A | |
| Grinding diameter(OD) | With steady rest(min./max.) | mm | 8/60 | 8/60 |
| Without steady rest(min./max.) | mm | 8/200 | 8/200 | |
| Grinding diameter(ID) | With steady rest(min./max.) | mm | - | 35/100 |
| Without steady rest(min./max.) | mm | - | 25/100 | |
| Max. work weight | kg | 80 | 80 | |
| Max. grinding length | O.D | mm | 500/750 | 500/750 |
| I.D | mm | - | 125 | |
| Center height | mm | 135 | 135 | |
| Distance between centers | mm | 500/750 | 500/750 | |
| Grinding wheel dimensions(O.D*W*I.D) | mm | Max.Φ400*50*Φ203; Min.Φ300*50*Φ203 | Max.Φ400*50*Φ203; Min.Φ280*50*Φ203 | |
| Peripheral speed of grinding wheel | m/s | 35 | 35 | |
| Wheel size for int. grinding attachment | mm | - | Max.Φ50*25*Φ13; Min.Φ17*20*Φ6 | |
| Wheelhead spindle speed | rpm | 1670 | 1670 | |
| Wheelhead rapid advance & wighdrawal | mm | 50 | 50 | |
| Total motor power | kw | 5.43 | 6.52 | |
| Machine dimensions(L*W*H) | mm | 2500/3000*1800*1650 | 2500/3000*1800*1650 | |
| Machine weight | kg | 3040/3540 | 3200/3700 | |
| Working Accuracy | ||||
| O.D roundness | um | 1.5 | 1.5 | |
| Surface roughness | um | Ra0.32 | Ra0.32 | |
| I.D roundness | um | 2.5 | 2.5 | |
| Uniformwof dia. in longitudinal section | um | 5 | 5 | |
| O.D roundness by chuck | um | 2.5 | 2.5 | |
| I.D surface roughness | um | Ra0.63 | Ra0.63 | |
Universal Cylindrical Grinding Machine Series UG-200 UG-320 UG-500
UG-200H*800 UG-200HF*500
UG-320H*1000 UG-320H*2000
