UG-320H*1000 Universal Cylindrical Grinding Machine for Internal and External Grinding
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets >=1 sets |
| Packaging Details: | Wood case or wooden pallet |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Grinding Diameter(Outer)(mm): | 320 | Grinding Diameter(Inner)(mm): | 100 |
|---|---|---|---|
| Grinding Length(mm): | 3000 | Max. Length Of Workpiece (mm): | 3000 |
| Max. Weight Of Workpiece(kg): | 150 | Center Height (mm): | 180 |
| Surface Roughness(μm): | 0.63 | Year: | Latest Day |
| Voltage: | 380V 50Hz | Dimension(L*W*H): | 3605*1810*1515mm |
| Weight (KG): | 3700 | Power (kW): | 9 |
| Key Selling Points: | High Productivity | Warranty: | 1 Year |
| Showroom Location: | Malaysia, Canada, Turkey, Kyrgyzstan, Colombia, Nigeria, Uzbekistan, Thailand, Tajikistan, Ukraine, Pakistan | Applicable Industries: | Manufacturing Plant |
| Marketing Type: | Hot Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Engine, Gear, PLC, Other | Condition: | New |
| CNC Or Not: | Normal | Color: | According To Per Customer's Need |
| Center Height: | 180mm | Max. Workpiece Weight: | 150kg |
| Wheel Peripheral Velocity: | 35m/s | Workhead Speed: | 25-220(50HZ) Stepless |
| Grinding Internal Diameter: | 30-100mm | Grinding Outer Diameter: | 8-320mm |
| Max. Workpiece Length: | 3000mm | Surface Roundness(O.D/I.D): | 0.32/0.63um |
| Ginding Lenght And Diameter: | Customizations | Port: | China Port |
Product Description
Product Description

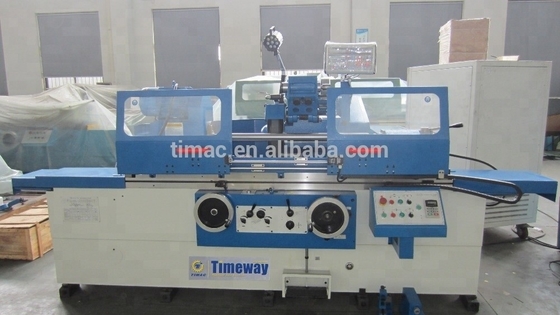

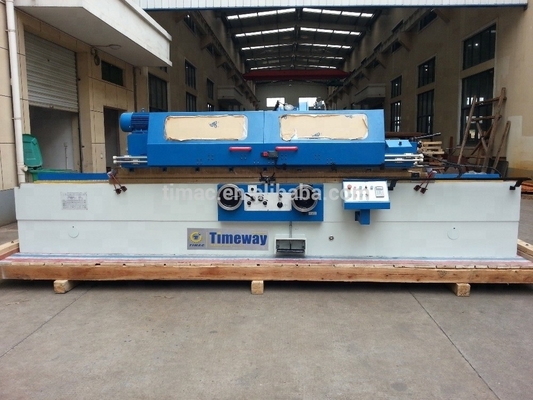

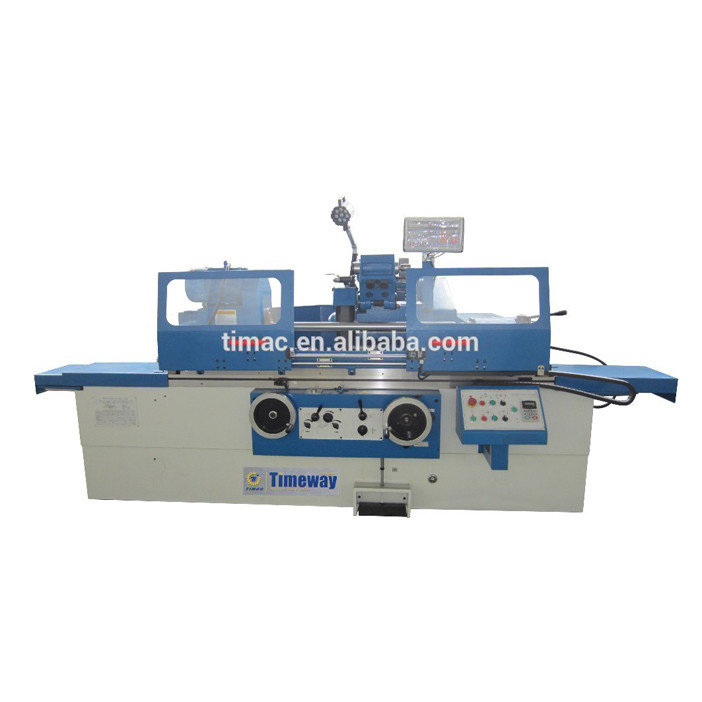

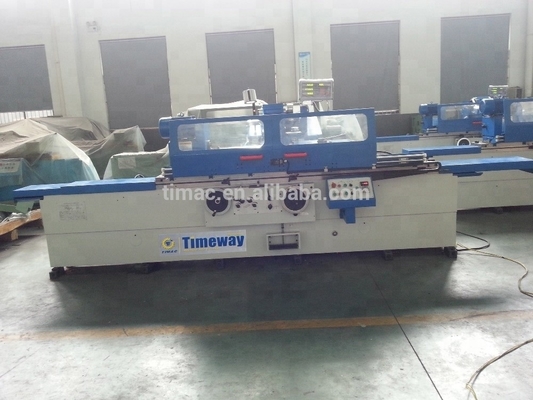

Universal Cylindrical Grinding Machine
Summary：

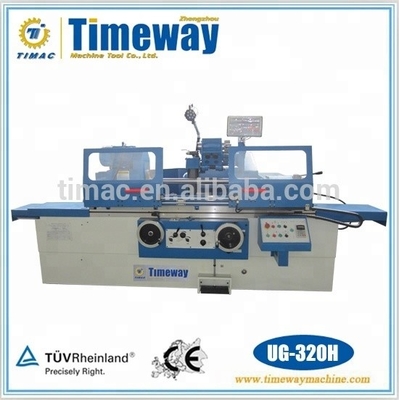

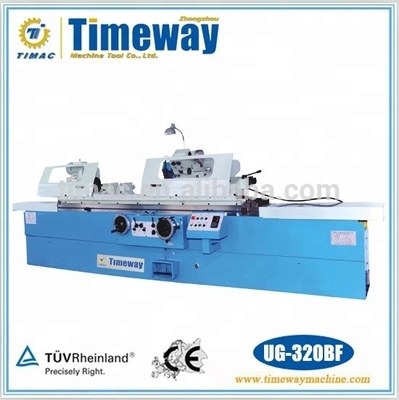

1. UG-320H and UG-320BF universl cylindrical grinder is an improved design of its predecessor, G-320 and UG-320A, with full retainment of their noteworthy merits. It is operated by hand and can be controlled and actuated either by power or by hydraulic system.
2. In comparison the machine is superior to UG-320A in the following field: greater rigidity and resistance to temperature change deformation of the machine body; large diameter for the grinding wheel spindle; Two sets of bearing consisting of four-shoes used as wheel spindle bearings, more power of the grinding wheel and use of small orifice lubricant restrictor for better table lubrication. All these improvements result in higher efficiency and better finsih in grinding performance.
Feature：
1.By swiveling the headstock, or wheelhead or table, components with different external or internal taper can be ground.
2.By turning down the internal grinding attachment, internal surface of components can be provided for grinding selection.
3.Workpiece, external and internal grinding wheels, hydraulic and coolant pumps are all driven separately by individual motors.
4.All the power moving portions of the machine are interlocked by electro hydraulic mechanism to ensure safety in operation.
Specification
Specifications | Units | UG-320H*1000 | UG-320H*1500 | UG-320H*2000 | UG-320H*3000 | |||
Grinding length(O.D/I.D) | mm | 1000/125 | 1500/125 | 2000/125 | 3000/125 | |||
Grinding Dia.(O.D/I.D) | mm | Φ8-Φ320/Φ30-Φ100 | ||||||
Center Height | mm | 180 | 180 | 180 | 180 | |||
Workpiece weight | kg | 150 | 150 | 150 | 150 | |||
Worktable speed | m/min | 0.1-4 | 0.1-4 | 0.1-4 | 0.1-4 | |||
Roundness(O.D/I.D) | um | 2.5/2.5 | 2.5/2.5 | 2.5/2.5 | 2.5/2.5 | |||
Surface Roughness(O.D/I.D) | um | Ra0.32/0.63 | Ra0.32/0.63 | Ra0.32/0.63 | Ra0.32/0.63 | |||
Total motor power | kw | 9 | 9 | 9 | 9 | |||
Machine weight | kg | 3700 | 4300 | 6600 | 8600 | |||
Main Accessories：
* Complete set of electric equipment
* Wheel peripheral dresser
* Wheel balancing mandrel
* Leveling wedge
* Int. grinding attachment
* Complete set of coolant equipment
* Wheel flanges
* Open type steady rest
* Three jaw chuck
* Wheel peripheral dresser
* Wheel balancing mandrel
* Leveling wedge
* Int. grinding attachment
* Complete set of coolant equipment
* Wheel flanges
* Open type steady rest
* Three jaw chuck
Extra Accessories:
* Close-type center rest
* Radius dresser
* Wheel balancing stand
* End-face dresser
* Radius dresser
* Wheel balancing stand
* End-face dresser
