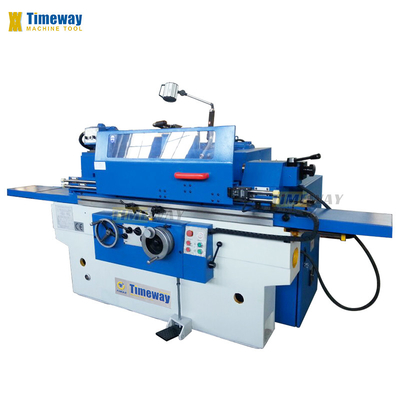

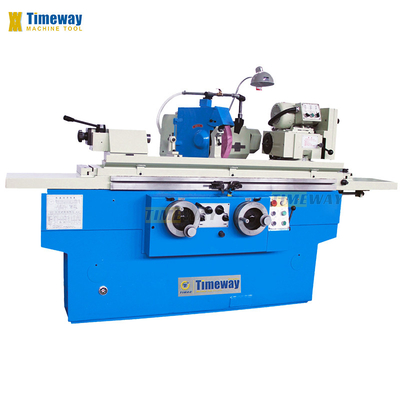

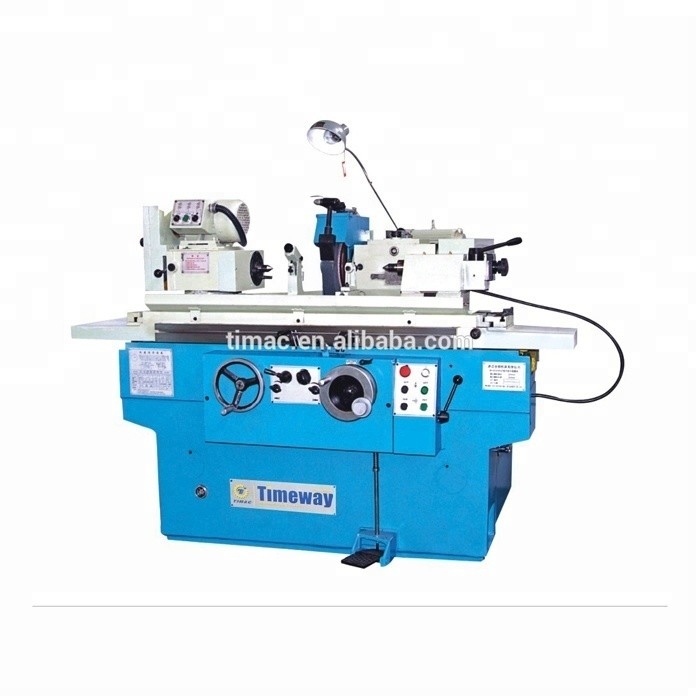

5.625kW Economical Wheel Speed 38m/s precision Cylindrical Grinder for Knife Grinding
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,000.00/sets 1-2 sets |
| Packaging Details: | Wood case or wooden pallet |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Type: | Knife Grinder | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Wheel Size(mm): | 400x50x203 |
| Voltage: | 380V 50Hz | Dimension(L*W*H): | 2500*1600*1500mm |
| Weight (KG): | 2500 | Power (kW): | 5.625 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Showroom Location: | Argentina, France, Romania, Viet Nam, Australia, Malaysia, Turkey, Chile, Brazil | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Building Material Shops |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Other | Center Height: | 135mm |
| Max. Workpiece Weight: | 50kg | Wheel Peripheral Velocity: | 38m/s |
| Swivel Angle Of Worktable: | -5 Deg To +9deg | Roundness(O.D): | 1.5um |
| Grinding Wheel Size: | 400*50*203mm | Surface Roughness: | Ra0.32um |
| Max. Grinding Length: | 500/800mm | Max. Grinding Diameter: | 200mm |
| Power: | 5.625kw | Port: | China Port |
Product Description
Products Description
Coolant tank | Wheel balancing stand |
Wheel flanges | Radirs dresser |
Support iron | |
Driving dog | |
Grinding wheel dresser | |
Wheel balancing mandrel | |
Open type steady rest | |
Carbide-tipped center |
Specifications | Unit | G-200H*500 | G-200H*800 | |
External grinding diameters | mm | Φ8-200 | Φ8-200 | |
Center height | mm | 135 | 135 | |
Max. travel of table | mm | 650 | 950 | |
Hydraulic traverse speed | m/min | 0.1-4 | 0.1-4 | |
Max. workpiece weight | kg | 50 | 50 | |
Grinding length external | mm | 500 | 800 | |
Swivel range of worktable | ° | -5- +9 | -3- +7 | |
Max. peripheral speed of grinding wheel | m/s | 38 | 38 | |
External wheel size | mm | Max:Φ400*50*Φ203 Min:Φ280*50*Φ203 | ||
O.D roundness | um | 1.5 | 1.5 | |
Surface roughness | um | Ra0.32 | Ra0.32 | |
Uniformity of dia. in longitudinal section | um | 5 | 5 | |
Workhead and tailstock center | Morse No.4 | Morse No.4 | ||
Machine motor power | kw | 5.625 | 5.625 | |
Overall dimensions(L*W*H) | mm | 2500*1600*1500 | 3000*1600*1500 | |
Machine weight | kg | 2500 | 3000 | |
Z-axis feed range | mm/r | 0.028-6.43 (93) | 0.028-6.43 (93) | |
Metric threads range (kinds) | mm | 0.5-224 (48) | 0.5-224 (48) | |
Inch threads range (kinds) | TPI | 72-1/8 (46) | 72-1/8 (46) | |
Module threads range (kinds) | MP | 0.5-112 (42) | 0.5-112 (42) | |
Diametrical threads range (kinds) | DP | 56-1/4 (45) | 56-1/4 (45) | |
Tailstock quill diameter | mm | Φ75 | Φ75 | |
Tailstock quill travel | mm | 150 | 150 | |
Tailstock quill taper | - | MT5 | MT5 | |
Main motor power | kw | 7.5 | 7.5 | |
Rapid feed motor power | kw | 0.3 | 0.3 | |
Coolant pump motor power | kw | 0.12 | 0.12 | |
Machine length | mm | 2382/2632/3132/3632/4632 | 2382/2632/3132/3632/4632 | |
Machine width | mm | 975 | 975 | |
Machine height | mm | 1230 | 1270 | |

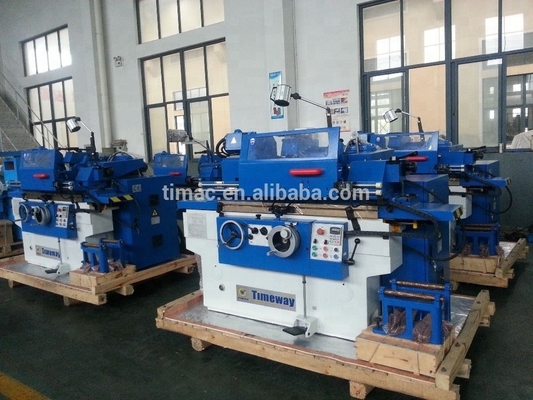

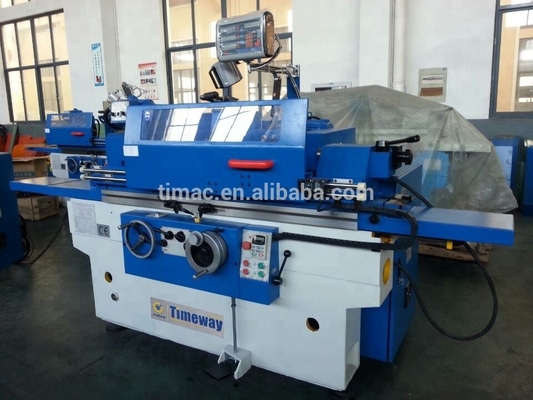

Machine Details
Why Choose Us
Renishaw laser interferometer (only for CNC horizontal lathe)：
Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
