High Precision Manual Mechanical-type Vertical Slotting Machine with Indexing
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | CE ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,000.00/sets 1-2 sets |
| Packaging Details: | Standard Package |
| Supply Ability: | 500 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Voltage: | 380V/50HZ |
|---|---|---|---|
| Dimension(L*W*H): | 1916*1305*1995mm | Warranty: | 1 Year |
| After-sales Service Provided: | Online Support, Engineers Available To Service Machinery Overseas | Color: | Optional |
| Max. Slotting Length: | 200mm | Ram Stroke: | 220 |
| Slotting Number Per Minute: | 32, 50, 80, 125(times/min.) | Inclination Of Ram: | 0 To 8 Deg |
| Worktable Diameter: | 500mm | Worktable Travel: | 500*500mm |
| Speed Of Main Motor: | 1430rpm | Weight: | 2200kg |
| Power: | 3kw(main Motor) | Port: | China Port |
Product Description

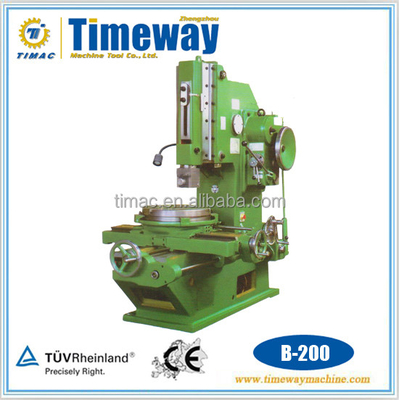

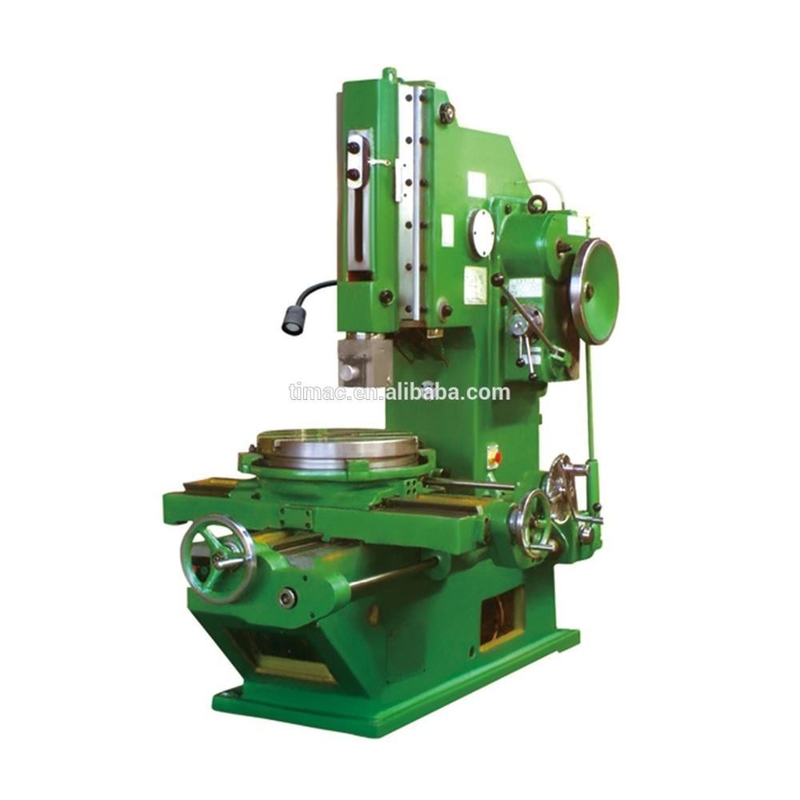

Mechanical Vertical Slotting Machine with Indexing
B-200 B-320
Applictions and Features
- Being designed for cutting various plane, formed surface and key way of workpiece, the machine is suitable for single piece or small batch production.
- The start and stop of the machine are carried out by a multiple-disk clutch and the reciprocation of the ram is achieved by a crank connecting link.
- An automatic mechanism for vertical, horizontal and rotary feeding together with its safety device is provided on the table. And there is also a rapid motion device for vertical, horizontal and rotary motion of the worktable which is equipped with an indexing gear for rotary motion.
Technical Parameter
Specification | Unit | B-320 | B-200 |
Ram storke | mm | 340 | 220 |
Maximum length of the ram slotting | mm | 320 | 200 |
Ram movement times | times min | 20.32.50.80 | 32.50.80.125 |
Tilt ram | ° | 0-8 | 0-8 |
Table diameter | mm | 630 | 500 |
Vertical adjustment of ram distance | mm | 315 | 230 |
Head bearing surface to the bed from the front walls | mm | 600 | 485 |
Between the work surface to the lower carriage distance | mm | 490 | 320 |
Table maximum longitudinal movement distance | mm | 630 | 500 |
Table maximum lateral movement distance | mm | 560 | 500 |
Maximum swivel table | ° | 360 | 360 |
Table aspect motorized feed range | mm | 0.08-1.21 | 0.08-1.21 |
Table rotation feed range | mm | 0.052-0.783 | 0.052-0.783 |
Motor power | kw | 4 | 3 |
Motor speed(calculated value) | r/min | 960 | 1430 |
Machine weight(about) | kg | 3000 | 2200 |
Overall dimensions(L*W*H) | mm | 2261x1495x2245 | 1916x1305x1995 |
