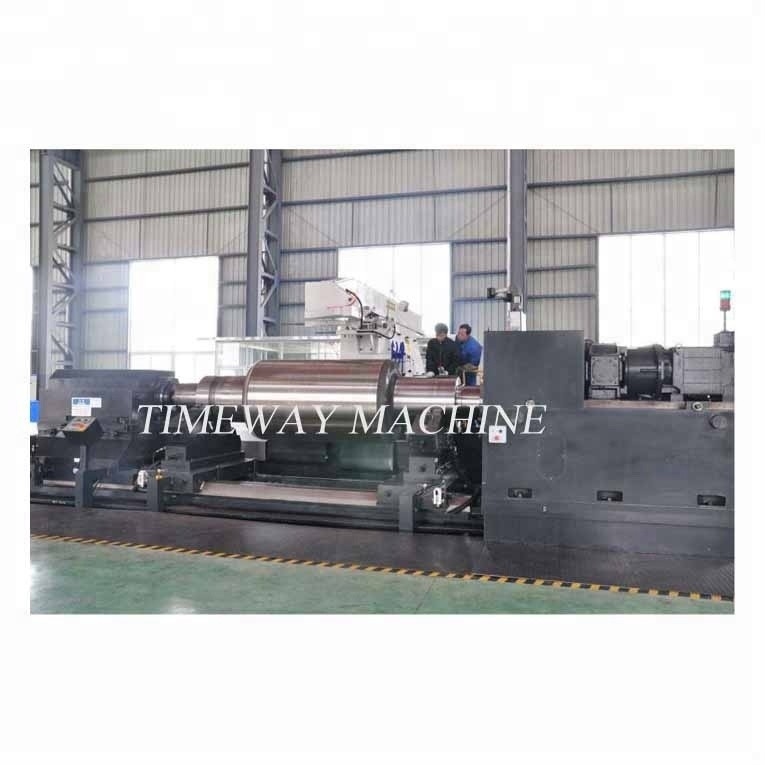

MK84160x6000/35 CNC Roll Grinder accuracy Roll Grinding for Long-lasting Results
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $130,000.00/sets 1-2 sets |
| Packaging Details: | Wooden case(fumigated) |
| Supply Ability: | 50 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Tube Mill Line |
|---|---|---|---|
| Weight (KG): | 15000 | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, Pump |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Applicable Industries: | Machinery Repair Shops | Showroom Location: | Kazakhstan, Uzbekistan, Malaysia, Australia |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Cnc Roll Grinder: | MK84160x6000/35 |
| Warrany: | 1 Year | Port: | China Port |
Product Description
CNC Roll Grinding Machine
CNC Roll Grinder
Model: MK84160x6000/35
1. Roll parameters:
As per parameters in the documents provided by customers.
2 Main precision indexes:
2.1 Cylindrical grinding
| Concentricity | ±0.002 mm |
| Parallelism | ±0.002mm |
| Roughness | Ra 0.32μm |
2.2 Convex-concave grinding
| Convex-concave symmetry | 1000.002 |
| Profile deviation | ±0.003mm/m |
| Coaxiality | 0.002 mm |
| Roughness | Ra 0.2μm |
2.3 Free curve grinding
| Profile deviation | ±0.003mm/m |
| Coaxiality | 0.002mm |
| Roughness | Ra 0.32μm |
3. Main technical data:
| S/N. | Specification | Unit | MK84160x6000/35 |
| 1 | Maximum grinding diameter | mm | 1600 |
| 2 | Minimum grinding diameter | mm | 200 |
| 3 | Maximum grinding length (distance between centers) | mm | 6000 |
| 4 | Maximum Roll Weight | T | 35 |
| 5 | Maximum input power(approximately) | KW | 230 |
| 6 | Total weight | T | Approximately 100 |
| 7 | Area that it covers | 17m×6.5m | |
| 8 | Output power of grinding wheel motor (AC spindle motor) | KW | 100 |
| 9 | Output power of headstock motor (AC spindle motor) | KW | 55 |
| 10 | Carriage (Z-axis) | ||
| 11 | Range of movement speed | mm/min | 1-6000 |
