1600mm Metal Crankshaft Grinder for Precision Grinding in Food Beverage Industry
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | ISO, CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $65,000.00/sets 1-2 sets |
| Packaging Details: | wooden / plywood case, pallet |
| Supply Ability: | 500 Set/Sets per Year |
|
Detail Information |
|||
| Type: | Crankshaft Grinding Machine | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Voltage: | As Require |
| Dimension(L*W*H): | As Table | Weight (KG): | 6000 |
| Power (kW): | 9.82 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | Romania, South Africa, Peru, Indonesia |
| Applicable Industries: | Restaurant, Farms, Manufacturing Plant, Construction Works , Energy & Mining, Retail, Machinery Repair Shops, Building Material Shops, Food & Beverage Factory, Advertising Company | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Engine, Gear |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Crankshaft Grinder: | Metal Crankshaft Grinding Machine |
| Max. Grinding Length: | 1600mm | Max. Grinding Diameter: | 580mm |
| Power: | As Model | Weight: | 6000kg |
| Port: | China Port | ||
Product Description

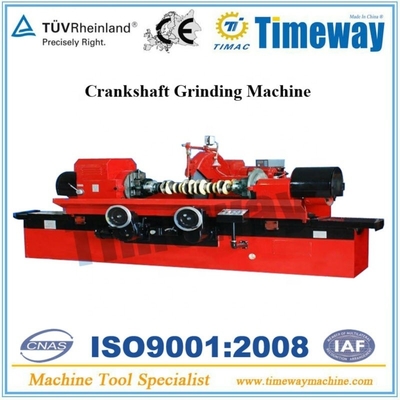

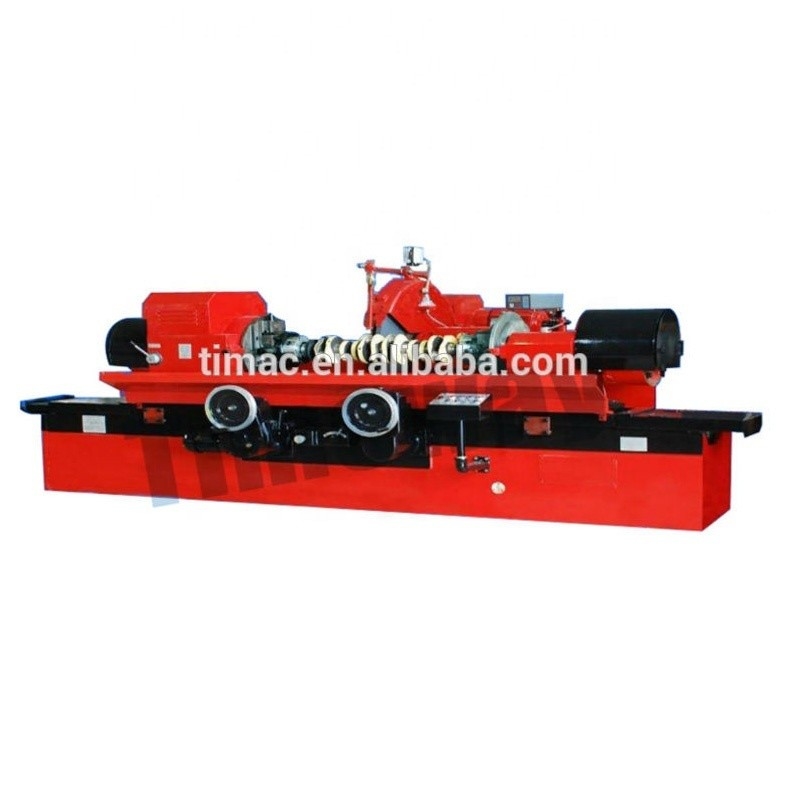

Crankshaft Grinding Machine QM-600A (φ580x1600mm)
This machine is intended for use in the automobile, tractor, diesel engine works and their repairing shops to grind both crankshaft journals and crankshaft arms.
Features:
1. Flexible belt drive for speed change - 3 speeds of work spindle obtainable;
2. Two types of chucks on headstock and tailstock - called union chuck and cross chuck, provided for users to select according to their own preference;
3. Friction clutch used in the headstock transmission chain for easy adjustment;
4. Table traverse operated both by hand and by power;
5. Rapid approach & withdrawal of wheel carriage effected by hydraulic means;
6. The wheel spindle being 80mm in diameter has good rigidity and strength;
7. Rolling guideways employed for movement of wheel carriage;
8. Table and wheel carriage lubricated automatically by oil pump circulation;
9. A digital device for cross feed display, and a hydrostatic & dynamic wheel spindle available as optional elements.
| Specification | Unit | QM-600Ax16 | QM-600Ax18 | QM-600Ax20 |
| Max. work swing dia. x Max. length | mm | φ580x1600 | φ580x1800 | φ580x2000 |
| Max. swing over table | mm | 580 | 580 | 580 |
| Work dia. ground with steady rest | mm | φ30~φ100 | φ30~φ100 | φ50~φ120 |
| Throw of crankshaft | mm | 110 | 110 | 120 |
| Max. work length ground: in 3-jaw chuck | mm | 1400 | 1600 | 1800 |
| between centers | mm | 1600 | 1800 | 2000 |
| Max. work weight | kg | 120 | 120 | 150 |
| Center height | mm | 300 | 300 | 300 |
| Work speed | r/min | 25, 45, 95 | 25, 45, 95 | 30, 45, 65, 100 |
| Max. cross movement | mm | 185 | 185 | 185 |
| Wheel-head rapid approach & withdrawal | mm | 100 | 100 | 100 |
| per grad of cross feed handwheel | mm | - | - | - |
| Wheel feed per turn of cross feed handwheel | mm | 0.005 | 0.005 | 0.005 |
| Wheel spindle speed | r/min | 740, 890 | 740, 890 | 740, 890 |
| Wheel peripheral speed | m/sec | 25.6~35 | 25.6~35 | 25.6~35 |
| Wheel size | mm | φ900x32xφ305 | φ900x32xφ305 | φ900x32xφ305 |
| Table travel per turn of handwheel coarse | mm | 5.88 | 5.88 | 5.88 |
| fine | mm | 1.68 | 1.68 | 1.68 |
| Table swivel(taper 18/100) | degree | 5°, taper 9/100 | 5°, taper 9/100 | 5°, taper 9/100 |
| Table swivel per grad of scale(taper 1:50) | 1°, taper 1/100 | 1°, taper 1/100 | 1°, taper 1/100 | |
| Overall capacity of motors | kw | 9.82 | 9.82 | 11.12 |
| Overall dimensions(LxWxH) | mm | 4166x2037x1584 | 4166x2037x1584 | 4900x2037x1584 |
| Weight | kg | 6000 | 6200 | 7000 |
| Ovality(new standard) | mm | 0.005 | 0.005 | 0.005 |
| Cylindricity | mm | 0.01 | 0.01 | 0.01 |
| Roughness Ra | um | 0.32 | 0.32 | 0.32 |
