Small Type CNC Vertical Slotting Machine 460*320mm Worktable Travel KND1000M Control
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $100,000.00/sets 1-2 sets |
| Packaging Details: | Standard Package |
| Supply Ability: | 500 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Voltage: | 380V/50HZ | Dimension(L*W*H): | 2150*2150*2200mm |
| Warranty: | One Year | Key Selling Points: | Multifunctional |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | Canada, United States, Philippines, Pakistan, Thailand, Chile, Romania, Kyrgyzstan |
| Weight (KG): | 1500 KG | Color: | Optional |
| Max. Slotting Length: | 180mm | Ram Stroke Adjustment: | 80mm |
| Ram Movement Times Per Minute: | 45/60/90times | Worktable Size: | 600*320mm |
| Worktable Travel(X/Y): | 460*320mm | Rapid Feed Speed: | 5m/min |
| X/Y-axis Motor Torque: | 6N.m | Control Type: | KND1000M CNC System |
| Port: | China Port | ||
Product Description
Products Description

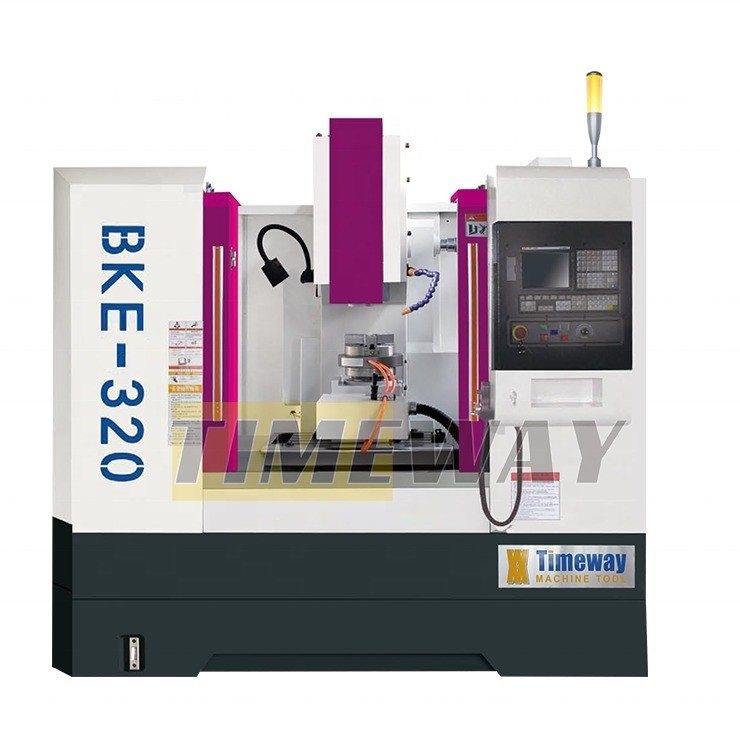

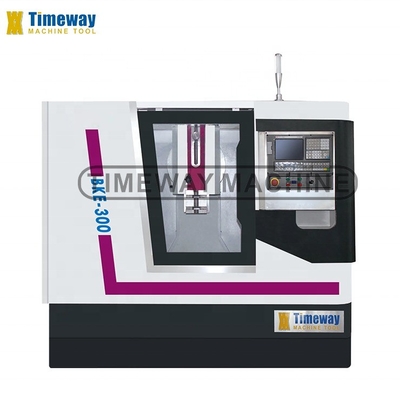

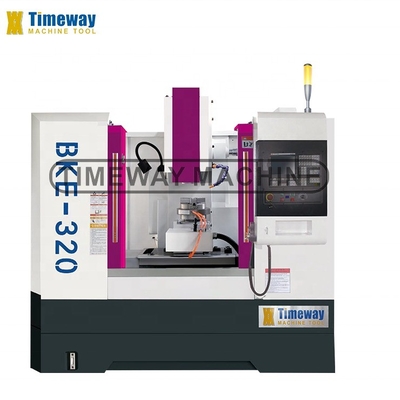

Specifications | Unit | BKE-180 | BKE-300 | BKE-320 |
Ram max. slotting length | mm | 180 | 300 | 320 |
Ram vertical adjustment stroke | mm | 80 | 75 | 315 |
Ram movement times | times/min | 46, 60, 90 | 30-180 | 20, 32, 50, 80 |
Work table size | mm | 600x320 | 550x405 | 600x320 |
Travel of table | mm | 460/320 | 280/330 | 620/560 |
Distance from ram to column | mm | 400 | 505 | 600 |
Distance from ram nose to table | mm | 480 | 540 | 490 |
X/Y-axis rapid feed speed | m/min | 5 | 5 | 5 |
Worktable rotary angle (optional) | ° | 360° | 360° | 360° |
X-axis motor torque | N.m | 6 | 6 | 7.7 |
Y-axis motor torque | N.m | 6 | 6 | 7.7 |
Main motor power | kw | 1.5/2.2 | 3.7 | 4 |
Machine weight | kg | 1500 | 2800 | 3700 |
Packing size (LxWxH） | cm | 220x210x230 | 230x220x230 | 280x240x250 |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
