Centerless Grinding MachineTM1040A The Perfect Machine for Precision Grinding
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | C E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $19,200.00/sets >=1 sets |
| Packaging Details: | In plywood cases. |
| Supply Ability: | 200 Set/Sets per Month . |
|
Detail Information |
|||
| Type: | Knife Grinder | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Voltage: | 220v |
| Dimension(L*W*H): | 1550x1300x1400mm | Weight (KG): | 2000 |
| Power (kW): | 7.5 | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Showroom Location: | Russia, Turkey, Thailand, Uzbekistan |
| Applicable Industries: | Manufacturing Plant, Energy & Mining, Machinery Repair Shops | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Other |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Machine Tool: | Centerless Grinder |
| Max. Grinding Length: | 140mm | Max. Grinding Diameter: | 40mm |
| Power: | 7.5kw | Weight: | 2000kg |
| Warranty Period: | 1 Year | Port: | China Port |
Product Description

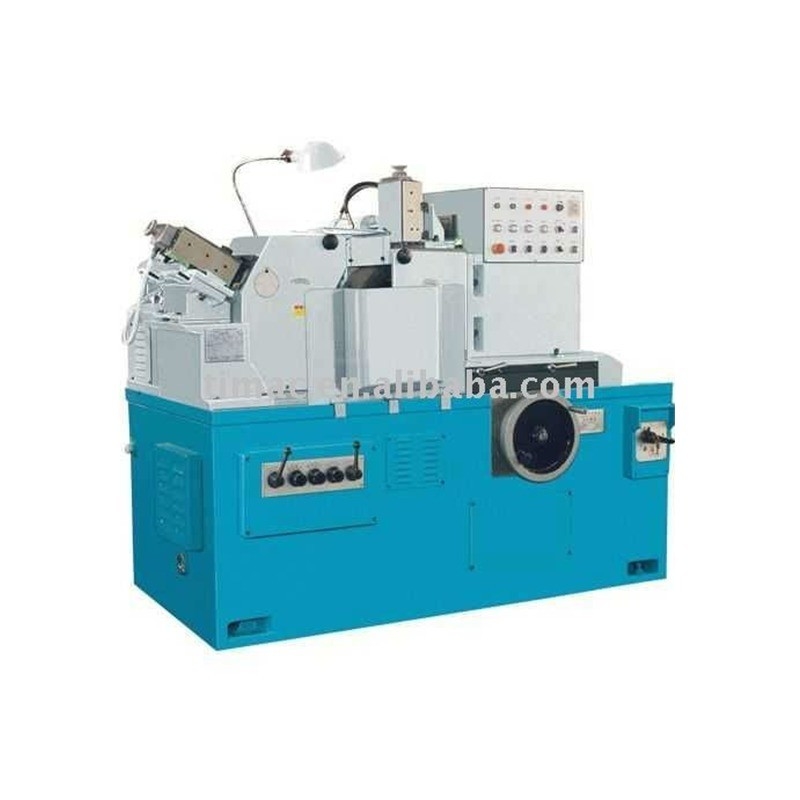

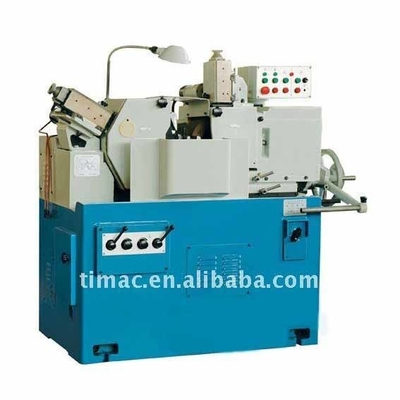

Centerless Grinder Centerless Grinding MachineTM1040A
Features:
* The layout of the machine is that its grinding wheelhead is fixed and regulating wheelhead is movable.
* The grinding wheel spindle is supported on multiple-segment hydrodynamic oil-film bearings and designed in cantilever structure, featuring convernien in changing grinding wheel
* AC frequency converter is used for changing the regulating wheel speed infinitely
* The machine is equipped with a plunge-cut mechanism.
Applications:
The machine is mainly used for through-feed grinding of cylindrical surface of ring and shaft-type parts, as well as for plunge-cut grinding of various stepped, conicaland cylindrical surface in semi-automatically.
| Specification | Unit | TM1040A | |
| Grinding diameter | For through feed grinding | mm | 2-40 |
| For infeed grinding | mm | 7-40 | |
| Max.grinding length with standard work rest | For through feed grinding | mm | 140 |
| For infeed grinding | mm | 120 | |
| Griding wheel specifications | mm | P350x125x127 | |
| Regulating wheel specifications | mm | PSA250x125x75 | |
| Grinding wheel speed | r/min | 1870 | |
| Regulating wheel speed | r/min | 10-180 stepless | |
| Swiveling angle of regulating wheel | in vertical plane | degree | -2~+4 |
| in horizontal plane | degree | 0~+3 | |
| Feed amount per division of feed handwheel | mm | 0.002 | |
| Feed amount per division of the dresser | mm | 0.01 | |
| Height of centerliness of two wheels to the bottom of work-rest | mm | 190 | |
| Height of centerliness of two wheels to the floor | mm | 985 | |
| Total power | kw | 7.5 | |
| Power of grinding wheel motor | kw | 1.5 | |
| Power of regulating wheel motor |
| 3N-50HZ 380V | |
| Overall dimesion(LxWxH) | mm | 1550x1300x1400 | |
| Machine weight | kg | 2000 | |
Grinding accuracy
| Roundness | 0.002mm |
| Cylindricity | 0.003mm |
| Surface roughness | 0.32um |
