320mm Max. Slotting Length Vertical Slotting Machine for Metal
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,000.00/sets 1-2 sets |
| Packaging Details: | Standard Package |
| Supply Ability: | 500 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Voltage: | 380V/50HZ | Dimension(L*W*H): | 1930x1365x 2270mm |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Power (kW): | 0.75 Kw | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Other |
| Showroom Location: | Egypt, Italy, Philippines, Indonesia, India, Russia, Thailand, Chile, South Africa | Weight (KG): | 2500 KG |
| Max. Slotting Length: | 320 Mm | Inclination Of Ram: | 0 To 8 Deg |
| Worktable Diameter: | 630 Mm | Worktable Travel: | 560x540 Mm |
| Max. Section Of Tool: | 25x40 Mm | Max. Slotting Force: | 8 KN |
| Max. Loading Weight Of Worktable: | 500 Kg | Speed Of Main Motor: | 960 Rpm |
| Weight: | 2500 Kg | Port: | China Port |
Product Description
Products Description

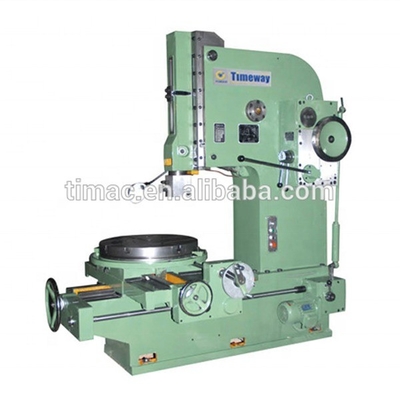

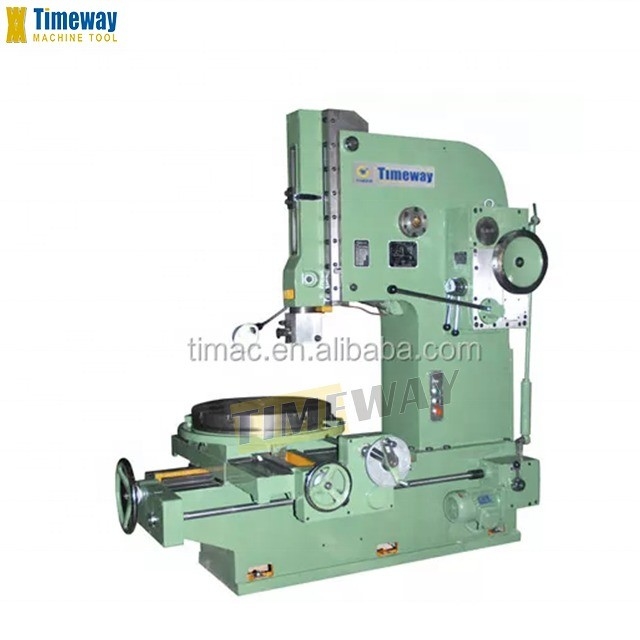

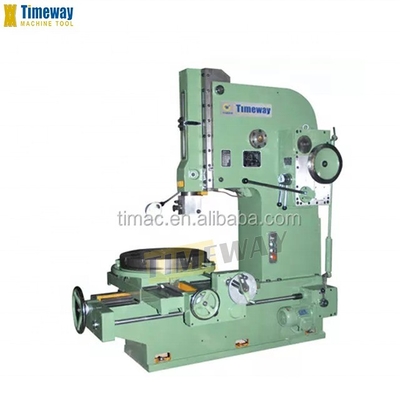

Being designed for cutting various plane, formed surface and key way of workpiece, the machine is suitable for single piece or small batch production.
The start and stop of the machine are carried out by a multiple-disk clutch and the reciprocation of the ram is achieved by a crank connecting link.
An automatic mechanism for vertical, horizontal and rotary feeding together with its safety device is provided on the table. And there is also a rapid motion device for vertical, horizontal and rotary motion of the worktable which is equipped with an indexing gear for rotary motion.
The start and stop of the machine are carried out by a multiple-disk clutch and the reciprocation of the ram is achieved by a crank connecting link.
An automatic mechanism for vertical, horizontal and rotary feeding together with its safety device is provided on the table. And there is also a rapid motion device for vertical, horizontal and rotary motion of the worktable which is equipped with an indexing gear for rotary motion.
Specification | Unit | C-B200 | C-B320 | C-B400 |
Max. slotting length | mm | 200 | 320 | 400 |
Number of ram reciprocation per minute | time/min. | 32,50,80,125 | 20,32,50,80 | 20,32,50,80 |
Inclination of ram | deg. | 0-8 | 0-8 | 0-8 |
Diameter of worktable | mm | Φ460 | Φ630 | Φ630 |
Adjusting vertical distance of slide block | mm | 215 | 370 | 420 |
Distance from tool holding surface to column front | mm | 480 | 600 | 600 |
Distance from worktable surface to underside of slide rack | mm | 320 | 470 | 620 |
Max. longitudinal travel of worktable | mm | 440 | 560 | 560 |
Max. transverse travel of worktable | mm | 420 | 540 | 540 |
Max. rotary angle of worktable | deg. | 360 | 360 | 360 |
Power feed range of worktable in longitudinal and transverse direction | mm | 0.054-1.24 | 0.054-1.24 | 0.054-1.24 |
Rotary feed range of worktable | deg. | 0.035-0.805 | 0.035-0.805 | 0.035-0.805 |
Max. size of slotting tool(L*H) | mm | 25x40 | 25x40 | 25x40 |
Max. slotting force | KN | 5 | 8 | 8 |
Max. loading weight on worktable | kg | 400 | 500 | 500 |
T-slot width in the center of worktable | mm | 18H8 | 18H8 | 18H8 |
Power supply of main electric motor | kw | 3 | 3 | 3 |
Speed of main motor | rpm | 1420 | 960 | 960 |
Power of motor for rapid traverse | Kw | 0.75 | 0.75 | 0.75 |
Speed of motor for rapid traverse | rpm | 1390 | 1390 | 1390 |
Net weight | kg | 2200 | 2500 | 2900 |
Machine dimensions(L*W*H) | mm | 1717x1221x1885 | 1930x1365x2270 | 1970x1365x2310 |
