220V/380V Voltage Normal CNC Crankshaft Grinding Machine for Industrial Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | CE ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $59,000.00/sets 1-2 sets |
| Packaging Details: | In plywood cases. |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal, Cylindrical Grinding Machine | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Voltage: | 220V/380V |
| Dimension(L*W*H): | As Tablesize | Weight (KG): | 6500 |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Showroom Location: | France, Romania, Mexico, Spain, Canada, United States, Italy, Germany | Applicable Industries: | Manufacturing Plant, Energy & Mining, Machinery Repair Shops |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Gear, Gearbox | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Free Spare Parts |
| Machine Tool: | Grinding Machine | After Warranty Service: | Video Technical Support |
| Local Service Location: | France, United Kingdom, Mexico, Algeria, Chile, Spain, Russia, Australia | Port: | China Port. |
Product Description

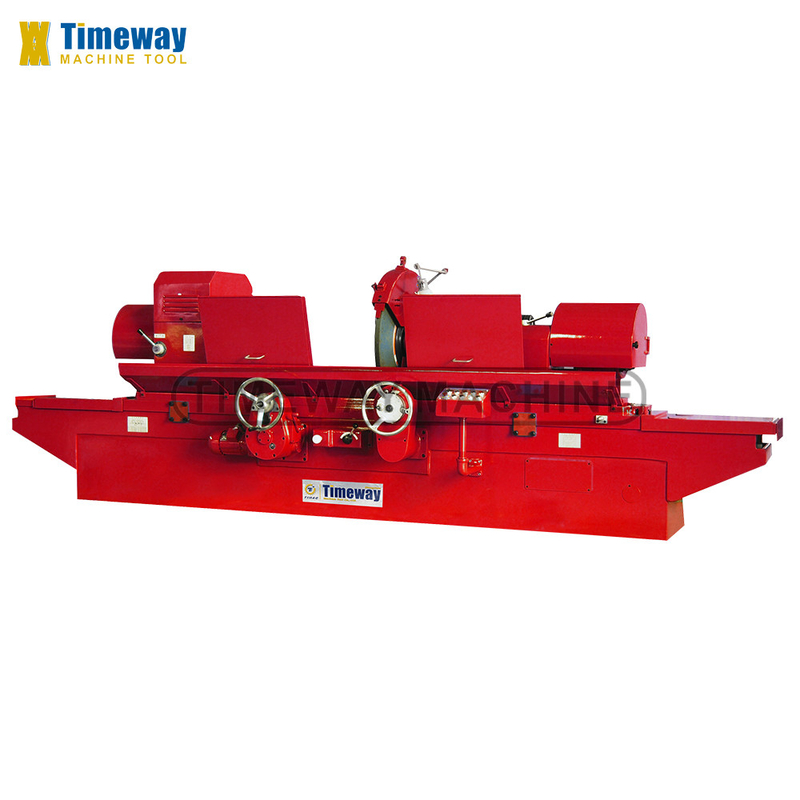

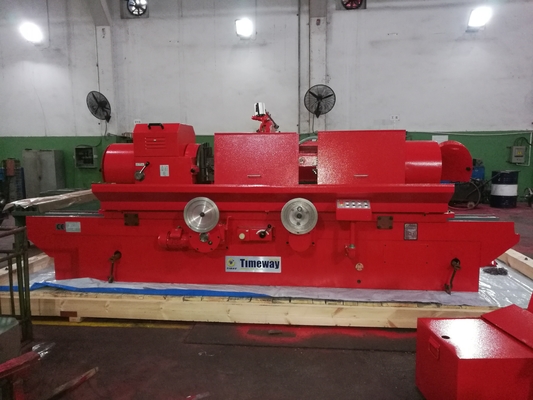

Crankshaft grinding machine
Features:
The crankshaft grinding machine is used in automobile, tractor, diesel engine works and their repair shops to grind the journals and crankpins of crankshaft, also used in large engineering machinery and diesel engines for ships to grind crankshaft.
1. 4 different work speeds are obtainable by making use of double-speed motor & the belts in workhead.
2. Union chuck are used in the headstock and tailstock for adjusting eccentricity up to 120mm.
3. Friction coupling is used in the headstock transmission chain for its easy adjustment.
4. Table longitudinal traverse is operated either by hand or by power.
5. Wheelhead rapid approach and withdraw is effected by hydraulic device.
6. Rolling guideways are used on wheelhead and made by high quality material. The wheel spindle being of 80mm in diameter has good rigidity and strength.
7. Plastic coated bed ways with less friction.
8. The bed ways and wheelhead ways are lubricated in automatic cycle by means of oil pump.
9. The digital display device can be optional.
| Specifications | Unit | QM-600A | QM-600Ax18 | QM-600Ax20 | QM-600C | QM-630A |
| Max. work swing dia. x Max. length | mm | φ580x1600 | φ580x1800 | φ580x2000 | Φ600x1600 | Φ630x1800 |
| Max. swing over table | mm | 580 | 580 | 580 | 600 | 630 |
| Work dia. ground with steady rest | mm | φ30~φ100 | φ30~φ100 | φ50~φ120 | φ30~φ100 | φ50~φ120 |
| Throw of crankshaft | mm | 110 | 110 | 120 | 110 | 120 |
| Max. work length ground: in 3-jaw chuck | mm | 1400 | 1600 | 1800 | 1400 | 1600 |
| between centers | mm | 1600 | 1800 | 2000 | 1600 | 1800 |
| Max. work weight | kg | 120 | 120 | 150 | 120 | 150 |
| Center height | mm | 300 | 300 | 300 | 300 | 315 |
| Work speed | r/min | 25, 45, 95 | 25, 45, 95 | 30, 45, 65, 100 | 25, 45, 85 | 30,45,65,100 |
| Max. cross movement | mm | 185 | 185 | 185 | 185 | 185 |
| Wheelhead rapid approach & withdrawal | mm | 100 | 100 | 100 | 100 | 100 |
| per grad of cross feed handwheel | mm | 1 | 1 | 1 | 1 | 1 |
| Wheel feed per turn of cross feed handwheel | mm | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 |
| Wheel spindle speed | r/min | 740, 890 | 740, 890 | 740, 890 | 740, 890 | 740, 890 |
| Wheel peripheral speed | m/sec | 25.6~35 | 25.6~35 | 25.6~35 | 25.6~35 | 25.6~35 |
| Wheel size | mm | φ900x32 xφ305 | φ900x32 xφ305 | φ900x32 xφ305 | φ900x32 xφ305 | φ900x32 xφ305 |
| Table travel per turn of handwheel coarse | mm | 5.88 | 5.88 | 5.88 | 5.88 | 5.88 |
| fine | mm | 1.68 | 1.68 | 1.68 | 1.68 | 1.68 |
| Table swivel(taper 18/100) | degree | 5 | 5 | 5 | - | 5 |
| Table swivel per grad of scale(taper 1:50) | 10' | 10' | 10' | - | 10' | |
| Overall capacity of motors | kw | 9.82 | 9.82 | 11.12 | 9.82 | 11.12 |
| Overall dimensions(LxWxH) | mm | 4166x2037 x1584 | 4166x2037 x1584 | 4166x2037 x1584 | 4166x2037 x1584 | 4166x2037 x1584 |
| Weight | kg | 6000 | 6200 | 7000 | 6000 | 6500 |
| Ovality(new standard) | mm | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 |
| lindricity | mm | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
| Roughness Ra | um | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 |
Standard Accessories:

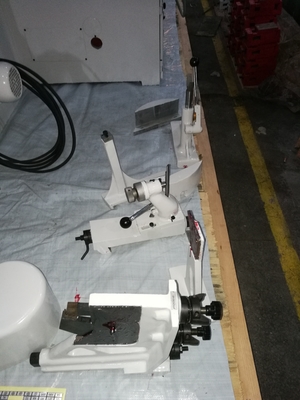

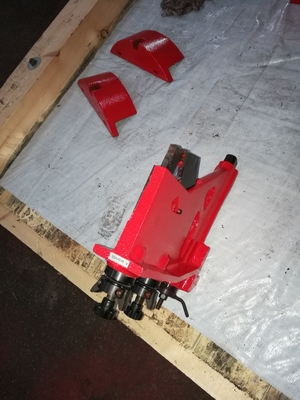

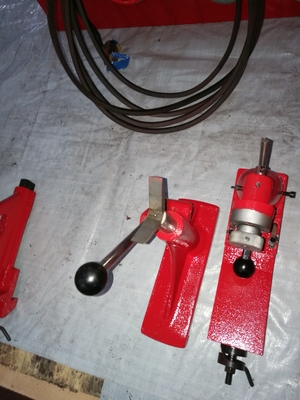

Jaw chucks, Wheel dresser, Steady rest, Wheel balancing arbor, Leveling wedge, Wheel adaptor, Driving god, Vertical aligning stand, Horizontal aligning stand.
Optional Accessories:
Wheel balancing stand, Hanging measuring device, End dresser, Centering device, Digital display device.
| Why choose TIMEWAY MACHINE? |
