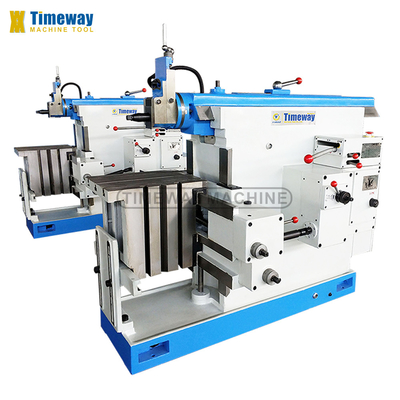

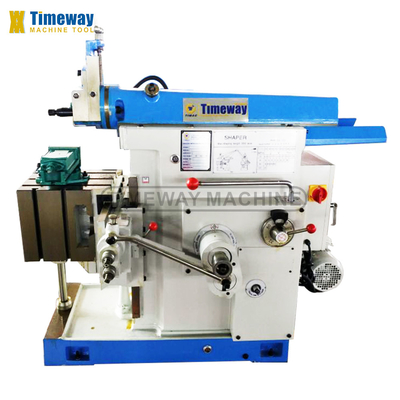

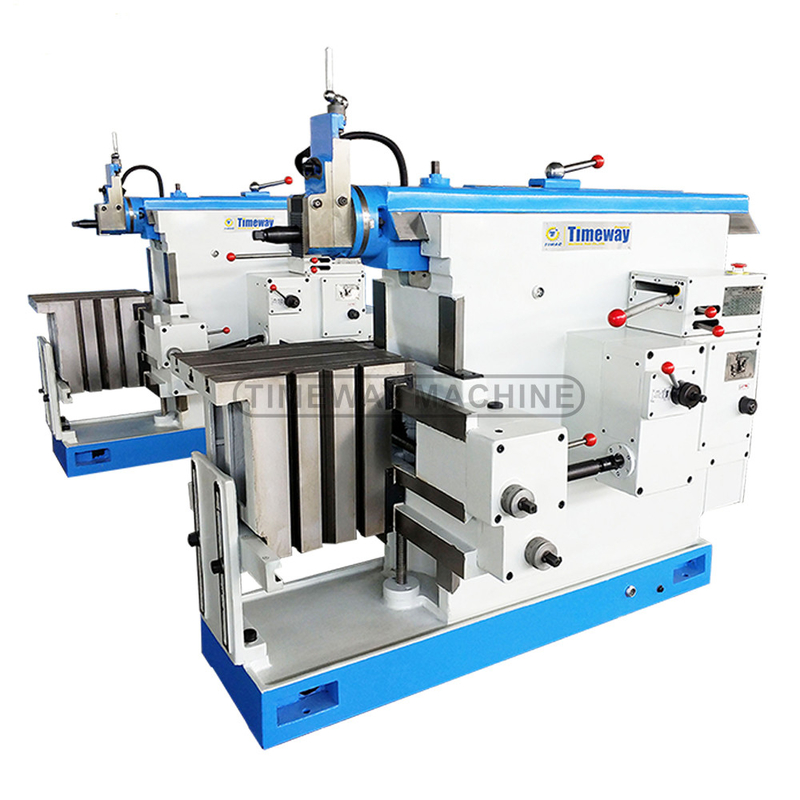

1 Mental Shaping Machine B6050 for Heavy-duty Shaping at 1800 KG
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,500.00/sets >=1 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Voltage: | As Buyer's Request | Dimension(L*W*H): | 1943x1160x1533 Mm |
| Warranty: | 12 Months | Key Selling Points: | High Safety Level |
| Power (kW): | 3 | Applicable Industries: | Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops |
| Showroom Location: | Canada, United Kingdom, United States, Brazil, Peru, Indonesia, Pakistan, Mexico, Russia, Thailand, Chile, Romania, South Africa, Australia | Weight (KG): | 1800 KG |
| Power: | 3KW | Weight: | 1800KG |
| Max. Shaping Length: | 500 Mm | Max. Vertical Travel Of Tool Head: | 110 Mm |
| After-sales Service Provided: | Online Support | Warranty Service: | 1 Year |
| COLOR: | Customized Option | Max. Horizontal Travel Of Table: | 500 Mm |
| Max. Vertical Travel Of Table: | 300 Mm | Vice Measurements: | 240x64x215 Mm |
| Port: | China Port | ||
Product Description
Product Description
Features:
1. This machine is designed for shaping plane and formed surfaces.
2. If used for shaping plane surfaces, T-slots and dovetail slots, etc.
3. On narrow and long workpieces, the machine will obtain much higher productivity.
4. With the equipment of a special vice or a dividing head, the machine can be send for processing the end surfaces and slots with equal distance on cylindrical or rectangular workpieces.
1. This machine is designed for shaping plane and formed surfaces.
2. If used for shaping plane surfaces, T-slots and dovetail slots, etc.
3. On narrow and long workpieces, the machine will obtain much higher productivity.
4. With the equipment of a special vice or a dividing head, the machine can be send for processing the end surfaces and slots with equal distance on cylindrical or rectangular workpieces.
Specification | Unit | B6050 | |||
Max. Shaping length | mm | 500 mm | |||
Max. distance from lower edge of ram to table | mm | 370 mm | |||
Max. travel of table (Horizontal/Vertical) | mm | 500 mm/300 mm | |||
Max. swivel angle of table (Without vice/With vice) | ° | ±90°/±50° | |||
Max. vertical travel of tool head | mm | 110 mm | |||
Frequency of ram stroke | times/min | 15, 24, 37, 51, 64, 80, 102, 126, 158 times/min | |||
Table feed per ram stroke | |||||
Pawl riding over 1 ratchet tooth (Vertical/Horizontal) | mm mm | 0.0845 mm/0.133 mm | |||
Pawl riding over 10 ratchet teeth (Vertical/Horizontal) | mm | 0.845 mm/1.33 mm | |||
Motor | r/min | 3 kw, 1420 r/min | |||
Vice measurements (Width xDepth x Max. Opening) | mm | 240x64x215 mm | |||
Overall dimensions (LXWXH) | mm | 1943x1160x1533 mm | |||
Packing size (LXWXH) | mm | 2150x1340x1470 mm | |||
Net weight | kg | 1800 kg | |||
Gross weight | kg | 2100 kg |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
