1750 KG SM-630 Shaping Machine Advanced Technology for Production
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | ISO, CE Standard |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,500.00/sets >=1 sets |
| Packaging Details: | In plywood cases. |
| Supply Ability: | 400 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Voltage: | As Request | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Power (kW): | 3 |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops | Showroom Location: | Italy, Germany, Indonesia, Thailand, Australia |
| Weight (KG): | 1750 KG | After-sales Service Provided: | Online Support |
| Machine Tool: | Shaping Machine | Power: | 3kw |
| Max. Planing Length: | 630mm | Worktable Size: | 630x400mm |
| Warranty Period: | 1 Year | Port: | China Port. |
Product Description

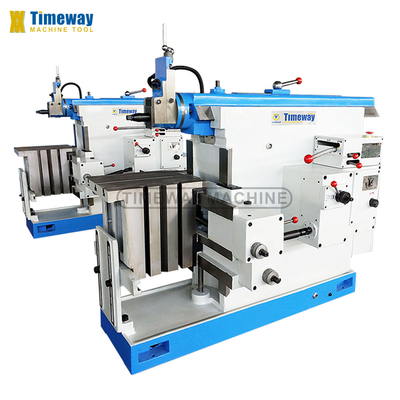

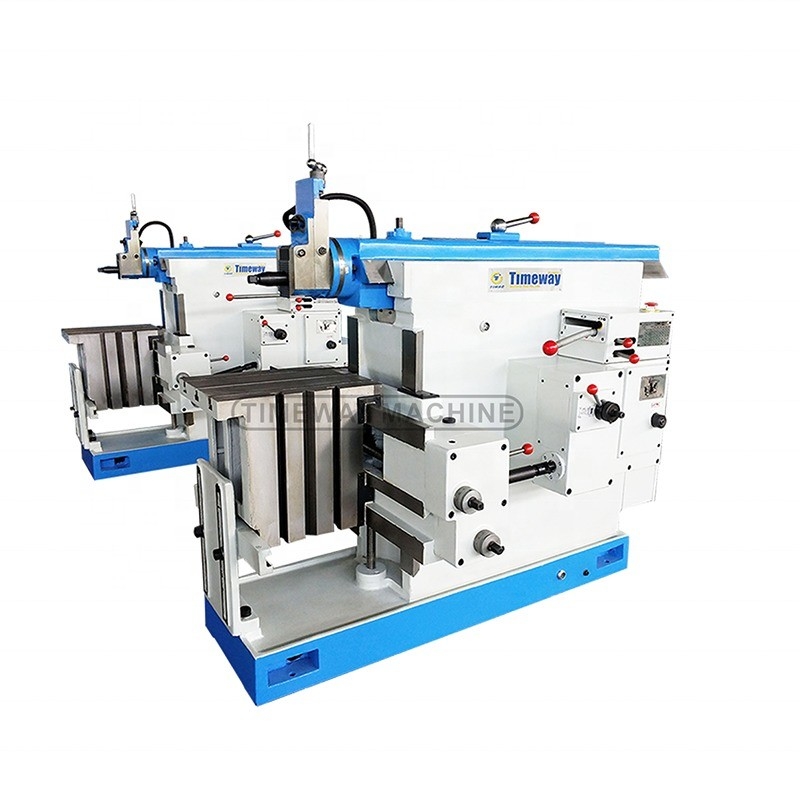

SM-630 Shaping Machine
| Specification | Unit | SM-630 | |
| Max. planing length | mm | 630 | |
| Max. distance between ram bottom and worktable surface | mm | 385 | |
| Max. horizontal travel distance of worktable | mm | 630 | |
| Max. vertical travel distance of worktable | mm | 360 | |
| Worktable size | mm | 630x400 | |
| Travel of tool head | mm | 120 | |
| Number of ram strokes/min | mm | 14, 20, 28, 40, 56, 80 | |
| Range of table power speed | Horizontal | mm | 0.2-2.5 12steps |
| Vertical | mm | 0.08-1.00 12steps | |
| T-slot width | mm | 18 | |
| Main motor power | kw | 3 | |
| N.W/G.W | kg | 1750/1950 | |
Features:
1. The main cutting motion of the machine is linear motion being converted from circular motion of gears by link block mechanism.
2. With smooth transmission, short over run and less consume of power, the machine is easy to start and stop.
3. If being provided with a tool lifter, the machine table can obtain rapid motion in vertical and horizontal direction.
4. The machine, with pleasing appearance and stable accuracy, can be operated and maintained conveniently.
