Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
 |
600mm Max. Diameter Crankshaft Grinding Machine QM-600A for Benefit
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | CE ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $65,000.00/sets 1-2 sets |
| Packaging Details: | Wooden case(Can be fumigated) |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Crankshaft Grinding Machine | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Wheel Size(mm): | 80x90x120 |
| Year: | 2022 | Voltage: | 220V/380V |
| Dimension(L*W*H): | As Require | Weight (KG): | 6000 |
| Power (kW): | 6.5 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | Romania, Russia, Malaysia, Canada, United States, Thailand, Chile, Uzbekistan, Brazil, United Kingdom, Saudi Arabia |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Building Material Shops | Marketing Type: | Hot Product 2022 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Gear, Gearbox, Other, Pump |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Crankshaft Grinding Machine: | Crankshaft Grinding Machine |
| Max. Grinding Length: | As Model | Max. Grinding Diameter: | 600 |
| Weight: | As Model | Power: | 7.5kw |
| Warranty Period: | 1 Year | Product Name: | Crankshaft Grinding Machine |
| Name: | Crankshaft Grinder Machine | Port: | China Port |
Product Description
Product Description

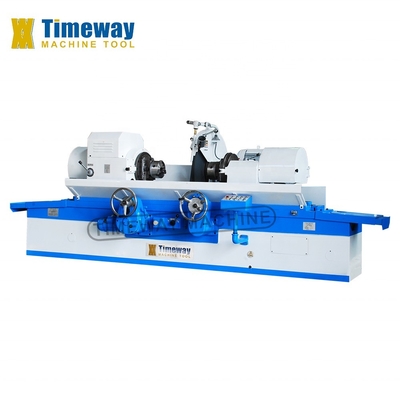

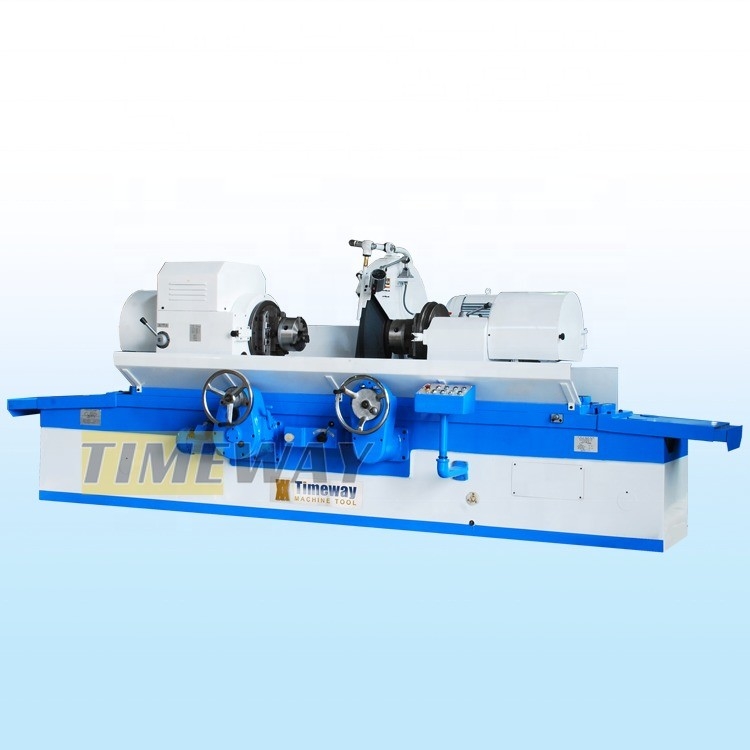

Crankshaft Grinding Machine
Specification
Model | Unit | QM-600A | QM-600Ax18 | QM-600Ax20 | QM-630A |
Max. work swing dia. x Max.length | mm | Φ580x1600 | Φ580x1800 | Φ580x2000 | Φ630x1800 |
Max. swing over table | mm | 580 | 580 | 580 | 630 |
Work diameter ground with steady rest | mm | Φ30-Φ100 | Φ30-Φ100 | Φ50-Φ120 | Φ50-Φ120 |
Throw of crankshaft | mm | 110 | 110 | 120 | 120 |
between centers | mm | 1600 | 1800 | 2000 | 1800 |
Max. work weight | kg | 120 | 120 | 150 | 150 |
Center height | mm | 300 | 300 | 300 | 315 |
Weight | kg | 6000 | 6200 | 7000 | 6500 |
Ovality (new standard) | mm | 0.005 | 0.005 | 0.005 | 0.005 |
Cylindricity | mm | 0.01 | 0.01 | 0.01 | 0.01 |
Roughness | μm | 0.32 | 0.32 | 0.32 | 0.32 |
Positive Comments From Customers
Company Profile

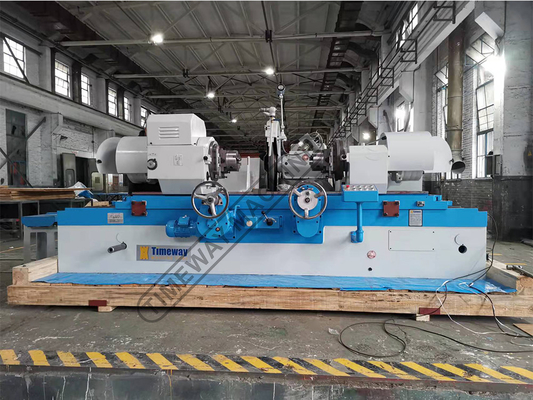

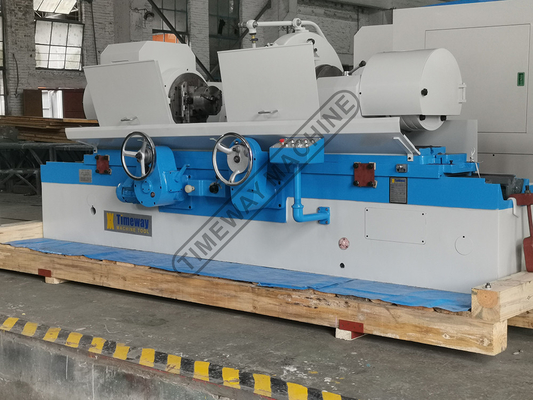

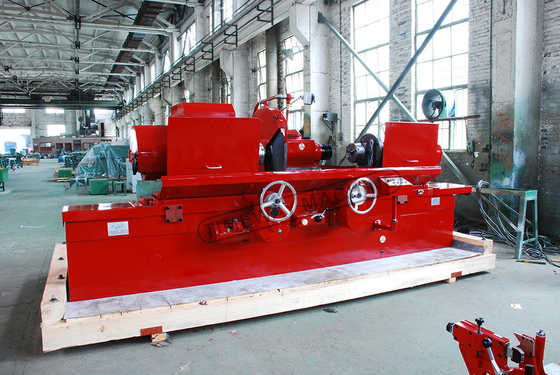

Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
