220/380V Voltage Heavy Duty Hydraulic Slotting Machine B-320 with High Cutting Force
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $9,800.00/sets >=1 sets |
| Packaging Details: | Wooden case(can be fumigated) |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, Bearing, Motor, Gear, Pump |
| Voltage: | 220/380V | Dimension(L*W*H): | 1945x1325x1980mm |
| Warranty: | 1 Year | Key Selling Points: | High Safety Level |
| Power (kW): | 3 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops |
| Showroom Location: | Germany, Viet Nam, Saudi Arabia, Indonesia, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Chile | Weight (KG): | 2400 KG |
| Slotting Machine: | B-200, B-320 | After Warranty Service: | Online Support |
| After-sales Service Provided: | Video Technical Support | Local Service Location: | Pakistan |
| Max.slotting Length: | 200/320mm | Max.cutting Force: | 7500KN |
| Max.weight Of Workpiece: | 500kg | Table Diameter: | 630mm |
| Warranty Period: | 1 Year | Port: | China Port |
Product Description

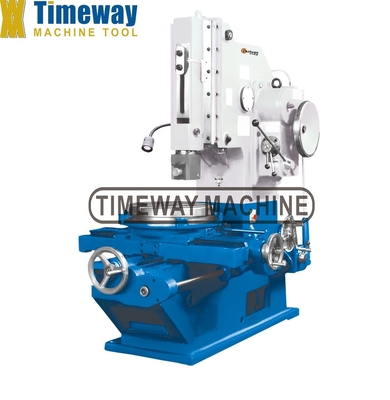

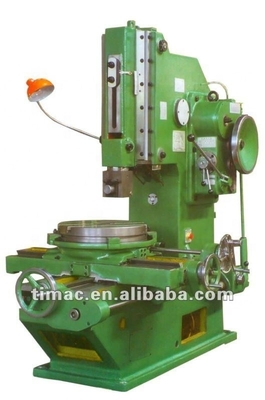

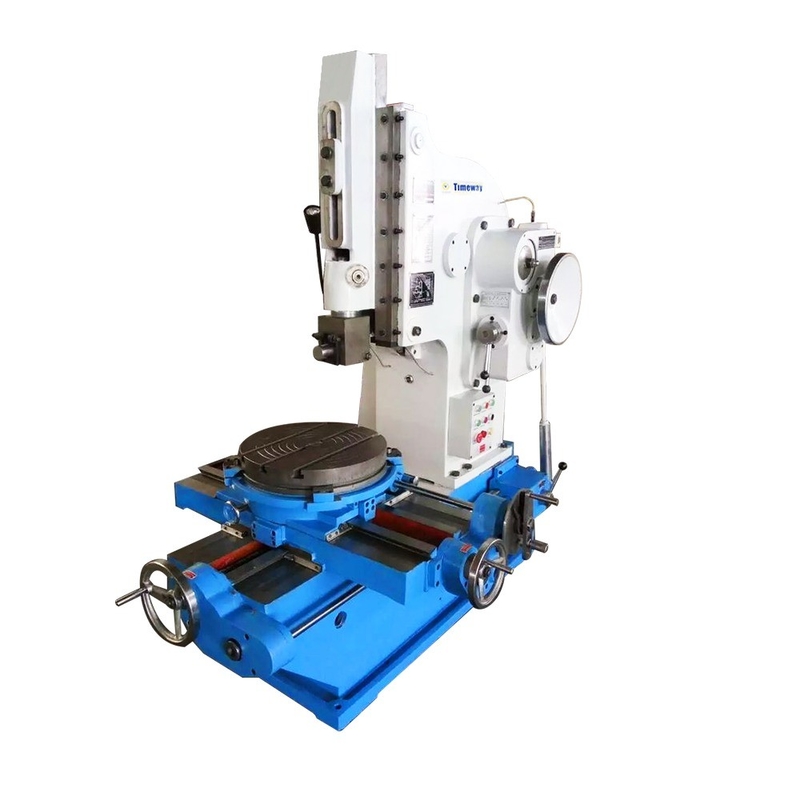

Heavy duty Hydraulic Slotting Machine B-320
Features:
1. This machine tool is used process planes, surfaces, key seating, etc, and it is suitable for the single-piece or small-batch production workshop.
2. The main transmission mechanism is to transmit the throw-over motion of the rocker arm into the to-and-fro motion of the ram the operating plant form can move vertically and horizontally and revolve it is able to achieve automatic feed and hand operating feed Also it can move fast in case of breakdown, the platform will automatically stop feeding and achieve limit safety.
3. When the machine tool is started, stop using electromagnetic clutch so as to achieve concentration operation of the machine tool.
4. This machine is carefully designed and it is characteristic of standardization, generalization, serialization, high degree automation, also it is of reasonable distribution, compact structure, well-balanced proportion, good outer looks and convenient maintenance.
5. The lubrication of the machine tool is brought by the oil pump, and lubrication oil is transmitted to various points by the oil-transmitting rubes with convenient adjustment.
6. The electric equipment of the machine tool is fixed in the bed at the back part of the lower bed it is safe and reliable because there are concentrated push buttons in the upper bed.
8. As for other power source conditions raised by the customer. Special orders of goods supply can be affected through negotiation
| Specification | B-200 | B-320 |
| Max.slotting length | 200mm | 320mm |
| Max.dimensions of wodplece(L*H) | 485*200mmm | 600*320mm |
| Max.weight of workpiece | 400kg | 500kg |
| Max.cutting force | 5500N | 7500N |
| No.of strokes per minutem | 32,50,80,125,r ,p,m | 20.32.50.80.r.p.m |
| Vertical ajustment of ram | 230mm | 315mm |
| Inclination of ram | 0-8deg | 0-8deg |
| Distance between tool holdingsurface and column front | 485mm | 600mm |
| Max.tool shank size (W*H) | 25*40mm | 25*40mm |
| Table diameter | 500mm | 630mm |
| Distance between table surface and low end of ram | 320mm | 490mm |
| Max.longitudinal travel of table | 500mm | 620mm |
| Max.cross travel of table | 500mm | 560mm |
| Range of table longitudinal and cross power feeds | 0.08-1.12mm | 0.08-1.12mm |
| Range of table power feeds | 0.052o-0.783deg | 0.052°-0.7893deg |
| Power of rapid drive motor | 3kw | 4kw |
| Rotating speeed of main drive motor | 1430r.p.m | 960r.p.m |
| Overall dimensions (L*W*H) | 1945*1325*1980mm | 2290*1525*2285mm |
| Weight(approx) | 2400kg | 3500kg |
| Why choose TIMEWAY MACHINE? |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
