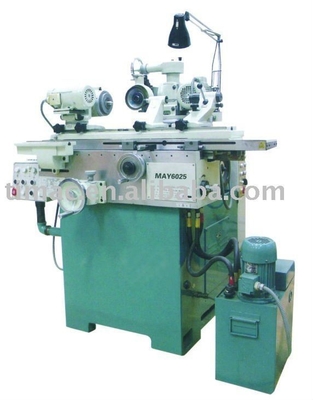

1520x1133x1173mm Universal Tool Grinding Machine with Advanced Technology
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $9,900.00/sets 1-2 sets |
| Packaging Details: | Wooden case(Can be fumigated) |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal Tool Grinding Machine | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Voltage: | As Require |
| Dimension(L*W*H): | 1520x1133x1173mm | Weight (KG): | 1700 |
| Power (kW): | 3 | Warranty: | 1 Year, 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | Viet Nam, Russia, Turkey, Peru, Chile, Uzbekistan, Brazil |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Building Material Shops | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Other |
| Universal Tool Grinding Machine: | Universal Tool Grinding Machine | Max.swing Diameter Over Table: | 200mm |
| Max.workpiece Length: | 500mm | Max.weight Of Workpiece: | 10kg |
| Surface Roughness: | Ra0.63 | Port: | China Port |
Product Description

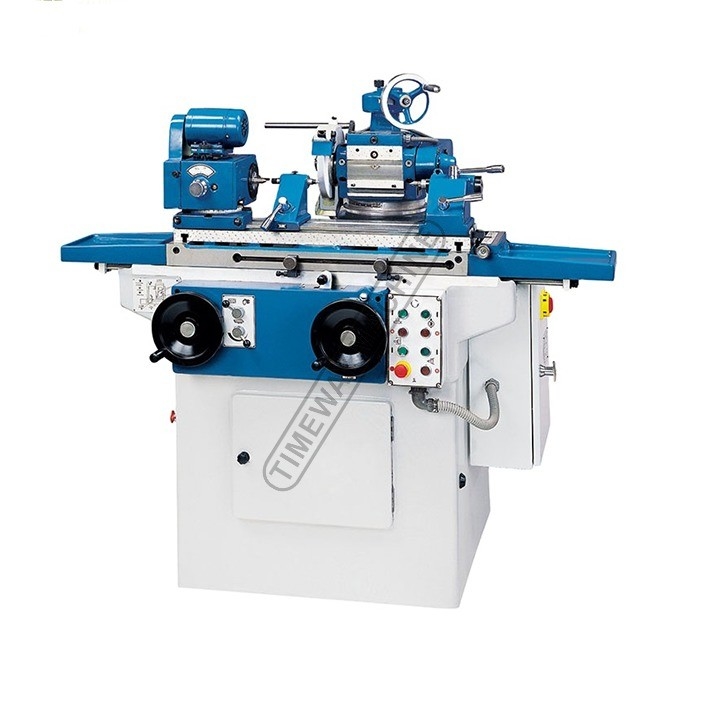

Universal Tool Grinding Machine
| Specification | 2M9120A | 2MA9125 | |
| Max.swing diameter over table | Φ200mm | Φ250mm | |
| Max.workpiece length | 500mm | ||
| Size for surface Grinding | 300×125mm | ||
| Size for cutter grinding | Φ200×500mm | ||
| Max.weight of Workpiece | 10kg | ||
| Workhead spindle speeds | 110, 200, 300rpm | 60, 90, 120, 175, 235 , 345rpm | |
| Workhead swivel | ±90º | ||
| Max.traverse of the wheelhead - Vertical/Cross | 200/200mm | 250/200mm | |
| Wheelhead spindle speeds | 2500rpm | ||
| Speed of wheelhead up-down travel |
| 280/mm/min | |
| Internal grinding spindle speed | 13500rpm | ||
| Longitudinal table travel,hand control | 480mm | ||
| Table traverse speed | <7m/min | ||
| Max.swivel of table | ±45º~-30º | ||
| Total power | 2.905kw | 2.995kw | |
| Overall dimensions | 1520×1133×1173mm | 1520×1220×1630mm | |
| Size of case | 1900×1400×1630mm | 1900×1400×1630mm | |
| Gross Weight/Netweight | 1700/1285kg | 1780/1380kg | |
| Working Accuracy | Circularity | External: 0.0015mm | |
|
|
| Internal: 0.0025mm | |
|
| Circularity | Ra0.32m | |
|
| Surface roughness | Ra0.63µm | |
