3460x2130x3720mm BY-630E Vertical Slotting Machine with 630mm Stroke
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $55,000.00/sets 1-2 sets |
| Packaging Details: | wooden case or Pallet (can be fumigated) |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | Gearbox, Motor, Gear |
| Voltage: | As Customer's Request | Dimension(L*W*H): | 3460x2130x3720mm |
| Warranty: | 12 Months | Key Selling Points: | Automatic |
| Power (kW): | 11 | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Energy & Mining |
| Showroom Location: | Turkey, Germany, Peru, Romania | Weight (KG): | 11000 KG |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Product Name: | Vertical Slotting Machine |
| Model: | BY-630E | Max. Slotting Length: | 630mm |
| Max. Stroke Length Of Ram: | 630mm | Warranty Period: | 1 Year |
| Port: | China Port | ||
Product Description

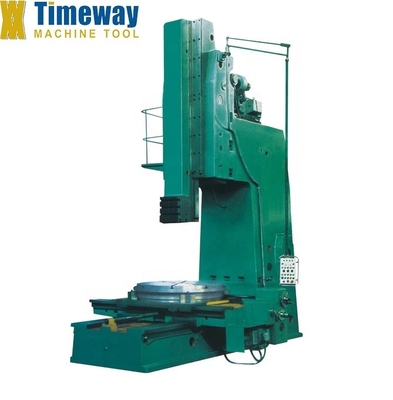

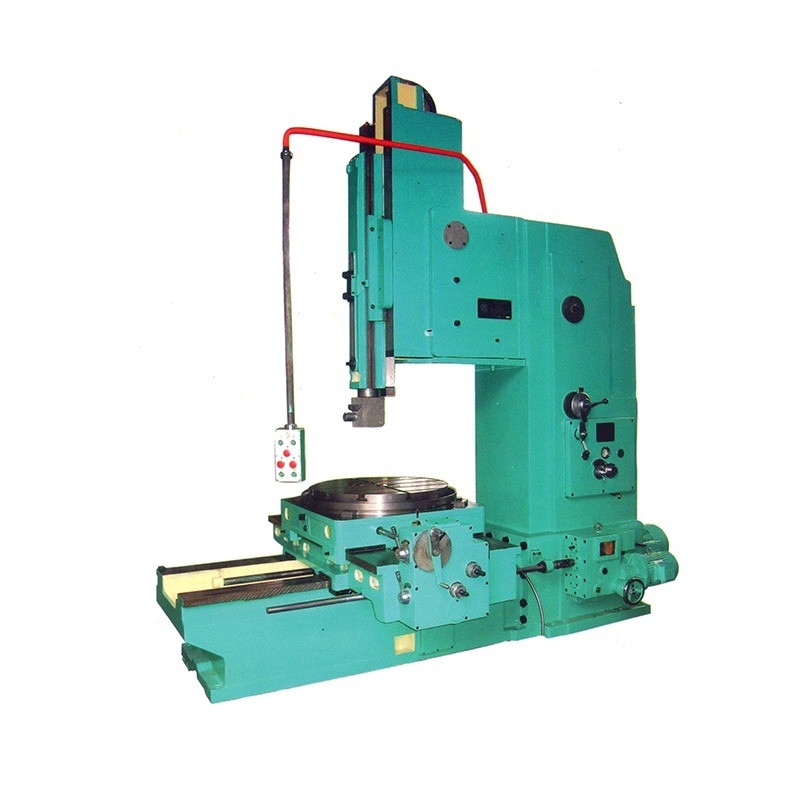

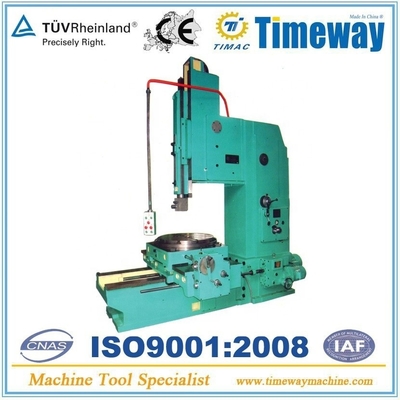

BY-630E Vertical Slotting Machine
Features:
1. The Hydraulic Slotting Machine is designed for slotting various plane, formed surface (include cambered surface)
and key way of workpiece, the machine is suitable for single piece or small batch production.
2. The feed of worktable have three different directions (longitudinal, cross and rotary), so the workpiece can be processed in various surface only need one setup.
3. The ram reciprocation hydraulic transmission mechanism and worktable hydrofeederare equiped.
4. The speed of ram is invariant in each stroke, the speed of ram and the worktable movement can be adjustable in stepless way.
5. The hydraulic console has reversing mechanism for the ram reversing and oil feeding.
6. Besides hydraulic and hand feed, the worktable also has longitudinal, cross and rotary rapid motion of independent motor drive.
| Specifications | Unit | BY-500E | BY-630E |
| Max. stroke length of ram | mm | 500 | 630 |
| Min. stroke length of ram | mm | 125 | 125 |
| Max. slotting length | mm | 500 | 630 |
| Distance of vertical adjust of ram | mm | 430 | 550 |
| Extreme high speed for work stroke of ram | m/min | 22 | 22 |
| Extreme low speed for work stroke of ram | m/min | 5 | 5 |
| Speed ratio of work stroke and return stroke of ram |
| 1 : 1.45 | 1 : 1.45 |
| Speed adjust for work stroke |
| stepless | stepless |
| Max. slotting force | KN | 19.6 | 19.6 |
| Distance from tool holding surface to column front | mm | 1032 | 1189 |
| Distance from worktable surface to underside of slide rack | mm | 740 | 795 |
| Max. longitudinal travel of worktable | mm | 1235 | 1125 |
| Max. transverse travel of worktable | mm | 820 | 880 |
| Diameter of worktable | mm | 900 | 1000 |
| Inclination of ram | ° | 0~10 | 0~10 |
| Range of vertical feed (stepless) | mm | 0~0.6 | 0~0.6 |
| Range of horizontal feed (stepless) | mm | 0~1.36 | 0~1.36 |
| Range of rotary feed (stepless) | ° | 0°~1° 15' | 0°~1° 15' |
| Max. loading weight on worktable | kg | 2000 | 2000 |
| T-slot width in the center of worktable | mm | 22H8 | 22H8 |
| Power of main motor |
| 11KW | 11KW |
| Power of motor for rapid move of table |
| 1.5KW | 1.5KW |
| Net weight (approx) | kg | 11000 | 12000 |
| Dimensions of machine tool (LxWxH) | mm | 3460x2130x3720 | 3730x2350x4587 |
| Flatness of machined surface | mm | 0.015 | 0.015 |
| Verticality of machined surface | mm | 0.025 | 0.025 |
| Surface roughness |
| 6.3 | 6.3 |
| Verticality of machined side surface against base | mm | 0.02 | 0.02 |
| Why choose TIMEWAY MACHINE? |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
