Max. Slotting Length 200/320/400mm Vertical Slotting Machine for Superior Performance
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | ISO, CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $45,000.00/sets 1-1 sets |
| Packaging Details: | wooden case or pallet (can be fumigated) |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, Bearing, Gearbox, Motor, Gear |
| Voltage: | As Buyer's Request | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Power (kW): | 3 |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Restaurant, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining | Showroom Location: | Canada, United Kingdom, United States, Italy, Brazil, Peru, Pakistan, Russia, Chile, UAE, South Africa, Malaysia, Australia |
| Weight (KG): | 2500 KG | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Slotter: | Slotting Machine | Power: | 3KW |
| Max.slotting Length: | 200/320/400mm | Diameter Of Worktable: | 460mm |
| Max. Rotary Angle Of Table: | 360mm | Surface Roughness: | 6.3 |
| Max. Worktable Load: | 400/400/500kg | Max. Slotting Force: | 5/5/8 |
| Port: | China Port | ||
Product Description
Products Description
Features:

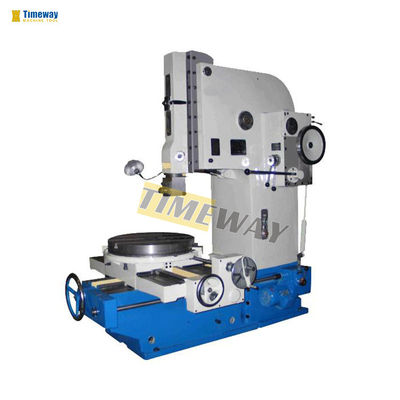

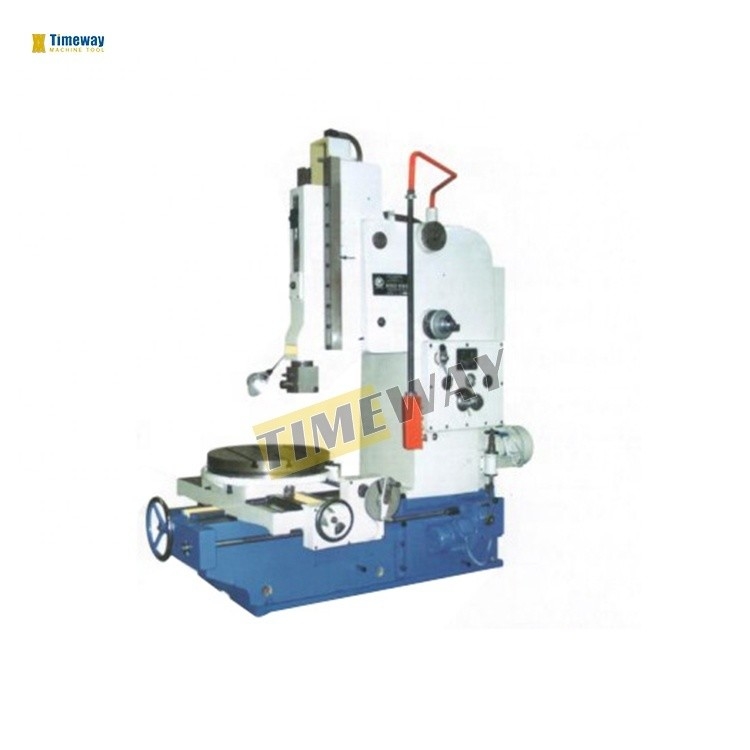

1. Being designed for slotting various plane, formed surface ( include cambered surface) and key way of workpiece, the machine is suitable for single piece or small batch production.
2. The start and stop of the machine are carried out by a multiple-disk clutch and the reciprocation of the ram is achieved by a crank connecting link.
3. An automatic mechanism for vertical, horizontal and rotary feeding together with its safety device is provided on the table.
4. It has a rapid motion device for vertical, horizontal and rotary motion of the table which equipped with an indexing gear for rotary motion.
1. Being designed for slotting various plane, formed surface ( include cambered surface) and key way of workpiece, the machine is suitable for single piece or small batch production.
2. The start and stop of the machine are carried out by a multiple-disk clutch and the reciprocation of the ram is achieved by a crank connecting link.
3. An automatic mechanism for vertical, horizontal and rotary feeding together with its safety device is provided on the table.
4. It has a rapid motion device for vertical, horizontal and rotary motion of the table which equipped with an indexing gear for rotary motion.
Specifications | Unit | B-200E | B-320E | B-400E |
Max. slotting length | mm | 200 | 320 | 400 |
Number of ram reciprocation per minute | mm | 32, 50, 80, 125 | 20, 32, 50, 80 | 20, 32, 50, 80 |
Inclination of ram | mm | 0-8 | 0-8 | 0-8 |
Diameter of worktable | mm | φ460 | φ630 | φ630 |
Adjusting vertical distance of slide block | m/min | 200 | 315 | 315 |
Distance from tool holding surface to column front | m/min | 480 | 600 | 600 |
Distance from worktable surface to slide rack | / | 320 | 455 | 615 |
Max. longitudinal travel of worktable | mm | 420 | 560 | 560 |
Max. transverse travel of worktable | mm | 420 | 535 | 535 |
Max. rotary angle of worktable | mm | 360 | 360 | 360 |
Feed range of worktable in longitudinal & transverse direction | mm | 0.054-1.24 | 0.054-1.24 | 0.054-1.24 |
Rotary feed range of worktable | ° | 0.035-0.85 | 0.035-0.805 | 0.035-0.805 |
Max. size of slotting tool (LxW) | mm | 25x40 | 25x40 | 25x40 |
Max. slotting force | / | 5 | 8 | 8 |
Max. loading weight on worktable | kg | 400 | 500 | 500 |
T-slot width in the center of worktable | mm | 18H8 | 18H8 | 18H8 |
Power supply of main electric motor | kw | 3 | 3 | 3 |
Speed of main motor | / | 1420 | 960 | 960 |
Power of motor for rapid transverse | kw | 0.75 | 0.75 | 0.75 |
Speed of motor for rapid traverse | / | 1390 | 1390 | 1390 |
Net weight (approx) | kg | 2200 | 2500 | 2900 |
Dimensions of machine tool (LxWxH) | mm | 1717x1221x1885 | 1930x1365x2270 | 1970x1365x2310 |
Flatness of machined surface | mm | 0.015 | 0.015 | 0.015 |
Verticality of machined surface | mm | 0.025 | 0.025 | 0.025 |
Surface roughness | / | 6.3 | 6.3 | 6.3 |
Verticality of machined side surface against base | mm | 0.02 | 0.02 | 0.02 |
