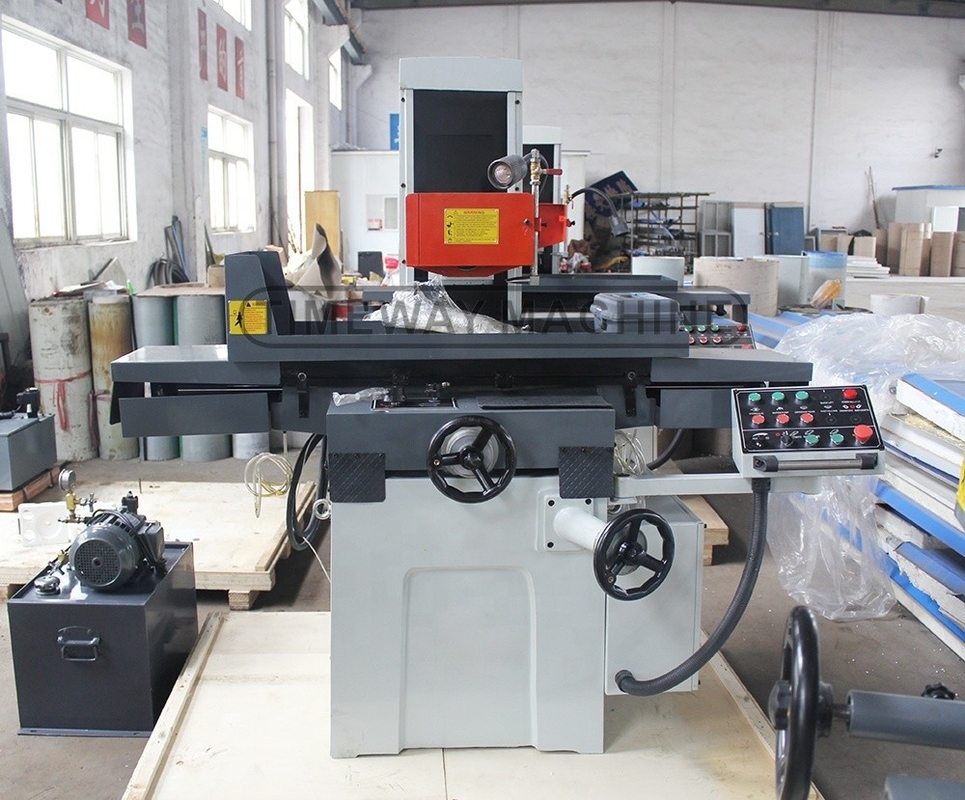

1.5kW Power Hydraulic Surface Grinding Machine Saddle Moving Type 850KG Weight
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,500.00/sets 1-2 sets |
| Packaging Details: | Wooden case/Pallet(can be fumigated) |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 450 | Wheel Size(mm): | 200 |
| Surface Roughness(μm): | 0.02 μm | Table Size(mm): | 460x180 |
| Table Travel (X) (mm): | 500 | Table Travel (Y) (mm): | 200 |
| Year: | 2021 | Voltage: | 220/380V |
| Dimension(L*W*H): | 1080x1190x1870mm | Weight (KG): | 850 |
| Power (kW): | 1.5 | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Showroom Location: | India, Indonesia, UAE, Mexico, France, Turkey, South Korea, Russia, Malaysia, Philippines, Thailand, Uzbekistan, United Kingdom, Peru, Ukraine, Pakistan, United States |
| Marketing Type: | Hot Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Other | Applicable Industries: | Manufacturing Plant, Construction Works |
| Type: | Surface Grinding Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Column Moving Surface Grinder: | Column Moving Surface Grinder | Max. Grinding Length: | 450 |
| Power: | 1.5kw | Weight: | 850kg |
| Grinding Wheel: | 200x20x31.75 | Product Name: | Hydraulic Surface Grinder |
| After Warranty Service: | Online | Color: | Customers' Request |
| Port: | China Port | ||
Product Description
Products Description
* The machine is reasonable in structure, good ragidity, beautiful appearance, convenient operation. * Using precision plastic guide surface and precision scraping, grinding imported hydraulic transmission, drive by synchronous. * The main mechanical valve is a special valve grinder, is divided into two parts, the mechanical commutation control, throttle control. Throttle control part and unloading function, can realize the station start and stop. * Grinding can be all kinds of plane and complex shaped surface, suitable for motor without grinding the feed , according to user needs with a permanent magnet sucker or electromagnetic sucker.
Specification | Unit | KGS-1545AH | KGS-2050AH | KGS-2550AH |

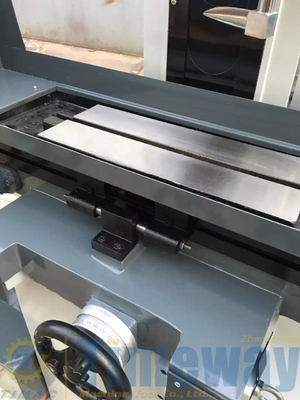

Table size | mm | 460×180 | 480×200 | 540×250 |
Table travel(X/Y) | mm | 500×190 | 520×220 | 560×260 |
Max. grinding area | mm | 500×190 | 520×200 | 540×250 |
Distance from table surface to spindle center | mm | 450 | 450 | 450 |
Wide/number of T-slot | mm | 12×1 | 14×1 | 14×1 |
Table longitudinal speed (stepless) | m/min | 3-23 | 3-20 | 3-20 |
Cross feed - Continuous - Intermittent | mm/min mm/time | 150 0-5 | 150 0-5 | 150 0-5 |
Cross feed handwheel - Revolutions - Graduations | mm | 2.5 0.02 | 2.5 0.02 | 4 0.02 |
Vertical feed handwheel - Revolutions - Graduations | mm | 1.25 0.01 | 1.25 0.01 | 2 0.01 |
Grinding wheel size | mm | 200×20×31.75 | 200×20×31.75 | 200×20×31.75 |
Spindle speed | rpm | 2850 | 2850 | 2850 |
Main motor power | kw | 1.5 | 1.5 | 1.5 |
Cooling pump power | kw | 0.04 | 0.04 | 0.04 |
Hydraulic motor power | kw | 1.5 | 1.5 | 1.5 |
Hydraulic pressure | Mpa | 3 | 0.04 | 3 |
Oil tank capacity | L | 80 | 80 | 80 |
Max. flowout | L/min | 18 | 18 | 18 |
Surface parallelism | mm | 0.005/300 | 0.005/300 | 0.005/300 |
Surface roughness | um | Ra0.32 | Ra0.32 | Ra0.32 |
Net weight | kg | 700 | 1050 | 1110 |
Gross weight | kg | 800 | 1150 | 1220 |
Packing size(L×W×H) | mm | 1850×1200×1860 | 1680×1140×1720 | 1980×1540×1970 |

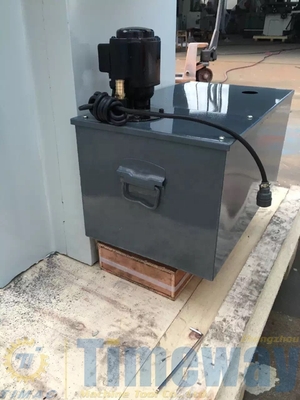

· Balancing shaft · Balancing station · Grinding wheel · Work lamp | · Magnetic clamping plate · Grinding wheel dresser · Cooling system · Operating tools |
