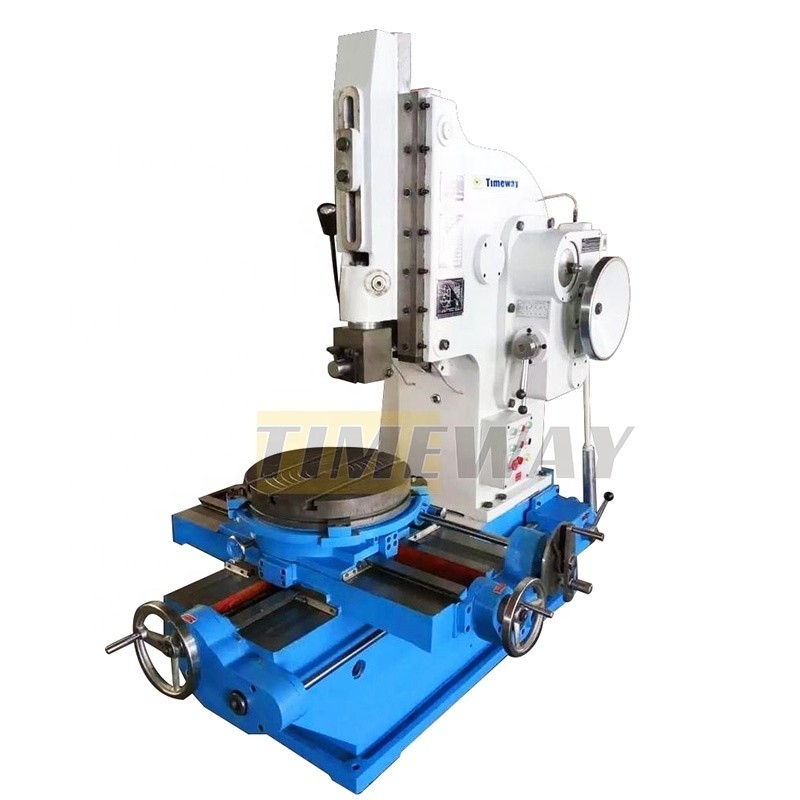

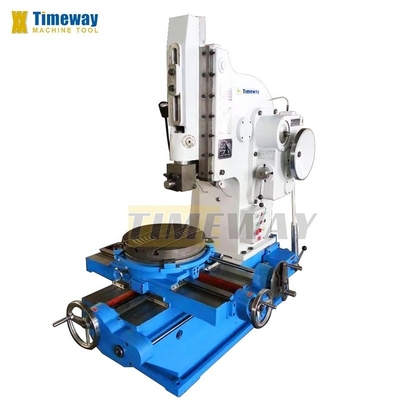

High Accuracy Vertical Slotter B5032 with 3 kw Main Motor Power Gear Shaping Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,800.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Type: | Gear Shaping Machine | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Bearing, Motor |
| Voltage: | 220/380V | Dimension(L*W*H): | 1916*1305*1995 Mm |
| Warranty: | 1 Year | Key Selling Points: | Energy Saving |
| Weight (KG): | 2200 | Power (kW): | 3 Kw |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops | Showroom Location: | Egypt, Canada, Turkey, Italy, France, Peru, Indonesia, Russia, Thailand |
| Name: | Shaper Machine | Keyword: | Slotter Machine |
| Model: | B-200 | Max. Cutting Depth: | 200 Mm |
| Vertical Adjustable Distance Of Ram: | 230 Mm | Table Diameter: | 500 Mm |
| Worktable Longitudinal Travel: | 500 Mm | Worktable Cross Travel: | 500 Mm |
| Main Motor Power: | 3 Kw | Machine Weight: | 2200 Kg |
| Port: | China Port | ||
Product Description
Products Description
Specification | Unit | B-200 | B-320 | B-400 |
Max. cutting depth | mm | 200 | 320 | 400 |
Ram movement times | times/min | 20, 32, 50, 80 | 20, 32, 50, 80 | 20, 32, 50, 80 |
Vertical adjustable distance of ram | mm | 230 | 315 | 315 |
Ram swivel angle | ° | 0-8° | 0-8° | 0-8° |
Table diameter | mm | 500 | 630 | 630 |
Distance from tool support surface to column | mm | 485 | 600 | 600 |
Distance from lower surface of carriage to table | mm | 320 | 490 | 690 |
Worktable longitudinal travel | mm | 500 | 630 | 620 |
Worktable cross travel | mm | 500 | 560 | 560 |
Worktable longitudinal & cross feed rate | mm | 0.08-1.21 | 0.08-1.21 | 0.08-1.21 |
Worktable rotary feed rate | ° | 0.052-0.783 | 0.052-0.783 | 0.052-0.783 |
Main motor power | kw | 3 | 4 | 4 |
Main motor speed | rpm | 1430 | 960 | 960 |
Machine weight | kg | 2200 | 3000 | 3700 |
Machine dimensions (LxWxH) | mm | 1916x1305x1995 | 2261x1495x2245 | 2290x1525x2485 |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
