2022 Year Semi-Auto Camshaft Grinding Machine with Advanced Technology
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $50,000.00/sets 1-1 sets |
| Packaging Details: | WOODEN CASE |
| Supply Ability: | 300 Set/Sets per Month . |
|
Detail Information |
|||
| Type: | Semi-auto Camshaft Grinding Machine | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Year: | 2022 |
| Voltage: | 220/380V | Dimension(L*W*H): | 3800x1670x1700 |
| Weight (KG): | 5000 | Power (kW): | 11 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Showroom Location: | Romania, Russia, United States, Chile, Brazil, United Kingdom | Applicable Industries: | Restaurant, Farms, Manufacturing Plant, Home Use, Food & Beverage Shops, Construction Works , Energy & Mining, Retail, Food Shop, Machinery Repair Shops, Building Material Shops, Food & Beverage Factory, Hotels, Advertising Company, Printing Shops, Garment |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Gear, Gearbox | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Semi-auto Camshaft Grinding Machine: | Semi-auto Camshaft Grinding Machine | Max. Grinding Length: | 1250 |
| Max. Grinding Diameter: | 180 | Power: | 11KW |
| Port: | China Port | ||
Product Description

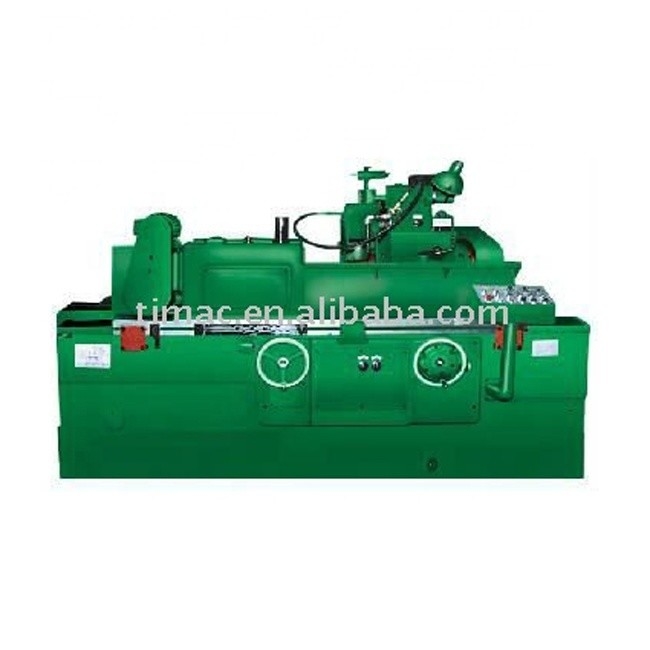

Semi-auto Camshaft Grinding Machine
Features:
1. GB8318 semi-auto camshaft grinding machine can carry out semi-automatic circulation grinding of all the cam and eccentric wheel rim in the camshaft.
2. Grinding wheel cutting, table traveling and contour plate dividing all can be automatically processed , ensuring the high efficiency, suitable for mass production of car, diesel engine etc.
3. With automatism-grinding copying attachment, high precision and stable performance.
| Specification | Unit | GB8318 | ||
| Max. swing diameter x Max. distance between centers | mm | 180x1250 | 180x500 | |
| Working capacity | Working piece O.D | mm | 20-180 | |
| Max. length | mm | 1250 | 500 | |
| Max. weight | kg | 60 | ||
| Max. hoisting | mm | 20 | ||
| Center height | mm | 100 | ||
| Distance between centers | mm | 1250 | 500 | |
| Overall dimensions(LxWxH) | mm | 180x1250: 3800x1670x1700 | ||
| 180x500: 2700x1670x1700 | ||||
| Working accuracy | Parallelism Of Camshaft Element Axis | mm | 0.005 | |
| Roughness Rate | μm | Ra0.63 | ||
| Weight of machine | kg | 5000 | 4500 | |
| Motor power | Total power | kw | 11.325 | |
| Grinder power | kw | 7.5 | ||
Standard accessories:
1. Automatism-grinding copying attachment;
2. Balance dabber;
3. Machine Sizing Block;
4. Centre;
5. Centre rest.
Optional accessories:
Grinding wheel balancer
