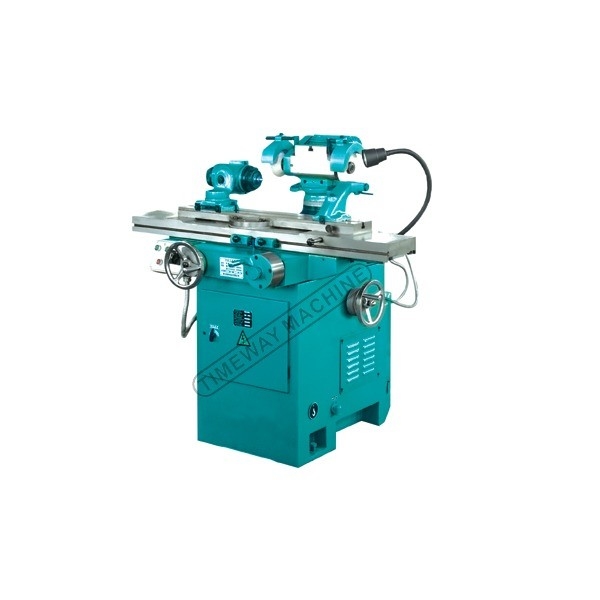

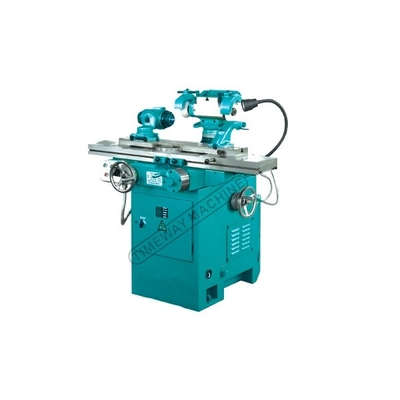

Competitive Metal Universal Tool Grinding Machine with Vertical Slide Travel of 230mm
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,000.00/sets 1-2 sets |
| Packaging Details: | WOODEN CASE(CAN BE FUMIGATED) |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Knife Grinder | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Voltage: | As Require |
| Dimension(L*W*H): | 1820x1550x1640mm | Weight (KG): | 1100 |
| Power (kW): | 3.15KW | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | Russia, Turkey, Peru, Chile, Brazil, Algeria |
| Applicable Industries: | Manufacturing Plant, Retail, Machinery Repair Shops, Building Material Shops | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Bearing, Other |
| UNIVERSAL TOOL GRINDER: | TOOL GRINDING | Max.Workpiece Diameter: | 250mm |
| Vertical Slide Travel: | 230mm | Cross Slide Travel: | 250mm |
| Warranty Period: | 1year | Port: | ANY CHINA PORT |
Product Description

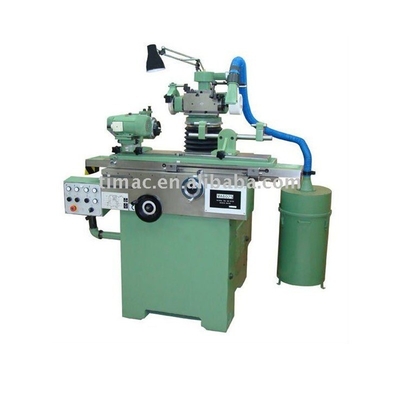

UNIVERSAL TOOL GRINDING MACHINE
1. SHARPENING END MILLING CUTTER
2. SHARPENING CONE REAMER
| Specification | MA6025 | MAY6025 | MAG6025 | MAYG6025 |
| Distance bewteen workhead nd tailstock centers | 545mm | |||
| Distance bewteen left tailstock and right tailstock centers | 650mm | |||
| Max.Workpiece diameter | 250mm | |||
| Height of centers | 130mm | |||
| Max.lenth for cylindrical grinding | 270 | |||
| Work table travel by hand | 400mm | |||
| Work table travel by hydraulically | 400mm | 400mm | ||
| Swivel range of table to eight side | ±45° | |||
| Vertical/Cross slide travel | 230/250mm | |||
| Vertical movement speed of wheelhead by power | 280mm/min | |||
| Max./min distance between table surface and grinfing spindle | 298/48mm | |||
| Horizontal swivel range of wheelhead | 360° | |||
| Grinding spindle inclinable | ±15° | |||
| Grinding spindle speed | 2700, 4000, 5500rpm | |||
| Tota power | 3.15KW | |||
| Overall dimensions | 1340×1320×1320mm | |||
| Size of case | 1820×1550×1640mm | |||
| Gross weight/Net weight(kg) | 1300/1100 | 1300/1150 | 1300/1150 | 1350/1250 |
STANDARD ACCESSORIES:
| 1set-Universalworkhead |
| 1set-Left-head tailstock |
| 1set-Center gauge |
| 1set-Wheel dresser |
| 3set-wheel guards |
| 1set-Right gand tailstock |
| 1set-Universal |
| 1set-Machine vice |
| 1set-Wheel balancing stand |
| 5set-Grinding wheels and Frange |
| 1set-Extender spindle |
OPTIONAL ACCESSORIES:
| 1 set-Helical grinding accessories |
| 1Set-Universal wheel dresser |
| 1 set drill grinding attachment |
| 1set-Taper reamer grinding attachment |
| 1Set-Three-jaw chuck |
| 1set-Circulay permanent-magnetic chuck |
| 1set-Universal revtangular permanent- magnetic chuck |
| 1set-Dust extractor |
| 1set-Wet grinding equipment |
| 1set-Extended grinding wheel spindle |
| 14Piece-Spring collet chuck |
| 1set-Worktable micro-feeding mechanism |
| 1set-Worktable longitudinal digital display unit |
| 1set-Double end side wheel dresser |
| 1set-Griudg tachment for spcerical cutters |
| 1set presition wheel dresser |
| 1set universal grinding head |
WORK ACCURACY:
| Work Accuracy | MA6025 MAY6025 | MAG6025 MAGY6025 |
| Linearity | 00.005mm | 0.003mm |
| Roughness of surface | Ra:0.63µm | Ra:0.32µm |
Why Choose Us
| Why choose TIMEWAY MACHINE? |
1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 70 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving.
