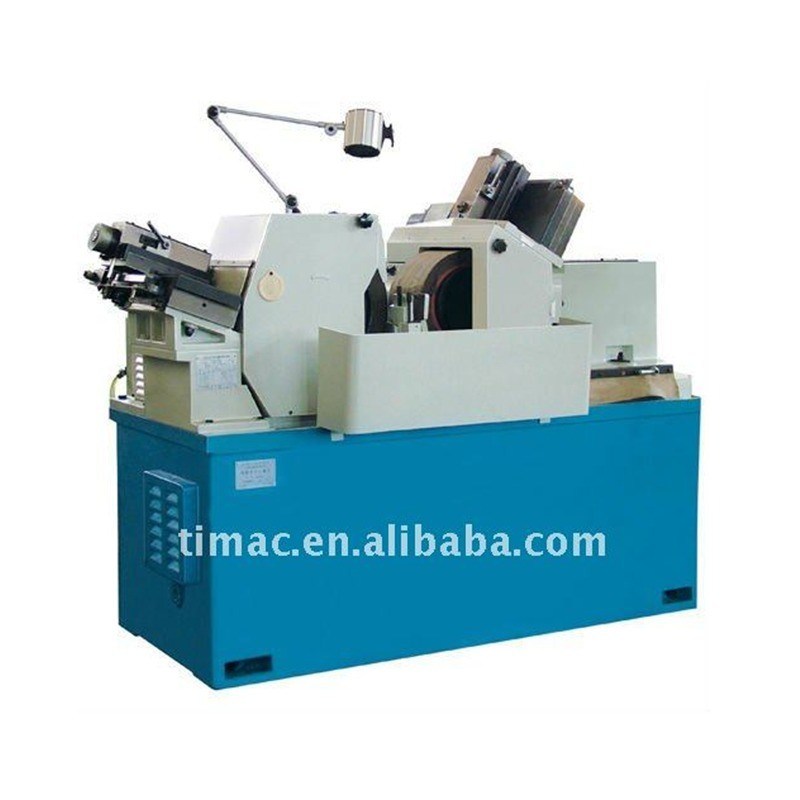

10kW Power High Precision Centerless Grinder TM1020G for Fast and Accurate Grinding
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | ISO, CE Standard |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $24,857.00/sets 1-2 sets |
| Packaging Details: | In plywood cases. |
| Supply Ability: | 400 Set/Sets per Month . |
|
Detail Information |
|||
| Type: | Centerless Grinder | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Wheel Size(mm): | 350x125x203mm |
| Voltage: | 220/380V | Dimension(L*W*H): | 1800x2150x1350 |
| Weight (KG): | 2000 | Power (kW): | 10 |
| Warranty: | 1 Year, 1 Year | Key Selling Points: | High Productivity |
| Showroom Location: | France, Viet Nam, South Africa, Russia, Turkey, Kazakhstan | Applicable Industries: | Manufacturing Plant, Construction Works , Machinery Repair Shops, Advertising Company |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Other | After-sales Service Provided: | Online Support |
| Machine Tool: | Centerless Grinder | Max. Grinding Diameter: | 20mm |
| Power: | 10kw | Weight: | 2000kg |
| Port: | China Port | ||
Product Description
High-precision Centerless Grinder
Features:
* The layout of the machine is that its grinding wheelhead is fixed and regulating wheelhead is movable.
* The grinding wheel spindle is supported on multiple-segment hydrodynamic oil-film bearings and designed in cantilever structure, featuring convernien in changing grinding wheel
* AC frequency converter is used for changing the regulating wheel speed infinitely
* The machine is equipped with a plunge-cut mechanism.
* A stepping motor or servomotor is used for the feed movement of the regulating wheel.
* Cooling system equipped with auto dual-filtering device with papefilter and magnetic separator.
| Specification |
| Unit | TM1020G |
| Grinding diameter | For through feed grinding | mm | 0.5-20 |
| For infeed grinding | mm | 3-20 | |
| Max.grinding length with standard work rest | For through feed grinding | mm | 100 |
| For infeed grinding | mm | 95 | |
| Griding wheel specifications | mm | P350x125x203 | |
| Regulating wheel specifications | mm | PSA250x125x127 | |
| Grinding wheel speed | r/min | 1870 | |
| Reegulating wheel speed | r/min | 20-210 stepless | |
| Swiveling angle of regulating wheel | in vertical plane | degree | -1~+4 |
| in horizontal plane | degree | -1~+3 | |
| Feed amount per division of feed handwheel | mm | 0.002 | |
| Height of centerliness of two wheels to the bottom of work-rest | mm | 155 | |
| Power of grinding wheel motor | kw | 10 | |
| Overall dimesion(LxWxH) | mm | 1800x2150x1350 | |
| Machine weight | kg | 2000 | |
Grinding accuracy
| Roundness | 0.001mm |
| Cylindricity | 0.003mm |
| Surface roughness | 0.16um |
