200mm Universal Cylindrical Grinder UG-200 x 500 Versatile Applications Weight KG 3000
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $13,500.00/sets 1-2 sets |
| Packaging Details: | Veneer box or wooden case/pallets(can be fumigated) |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Grinding Diameter(Outer)(mm): | 200 | Grinding Diameter(Inner)(mm): | 100 |
|---|---|---|---|
| Grinding Length(mm): | 500 | Max. Length Of Workpiece (mm): | 500 |
| Max. Weight Of Workpiece(kg): | 100 | Center Height (mm): | 135 |
| Wheel Size(mm): | 400 | Table Travel (X) (mm): | 500 |
| Table Travel (Y) (mm): | 205 | Surface Roughness(μm): | 0.08 |
| Voltage: | As Per Customer's Request | Weight (KG): | 3000 |
| Key Selling Points: | High Productivity | Warranty: | 1 Year |
| Showroom Location: | Germany, Mexico, Australia, South Africa, Spain, Canada, United States, Italy | Applicable Industries: | Farms, Manufacturing Plant, Food & Beverage Shops, Machinery Repair Shops, Building Material Shops |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Gearbox, Engine | Condition: | New |
| CNC Or Not: | Normal | Type: | Cylindrical Grinding Machine |
| Cylindrical Grinding Machine: | Universal Cylindrical Grinder | Dia. Ground (O.D): | 5-200 Mm |
| Dia. Ground (I.D): | 25-100 Mm | Workhead Motor Power: | 1.1kw |
| Tailstock Quill Travel: | 30 Mm | Workhead Spindle Speed: | 25-380 Rpm (stepless) |
| Table Swivel Angle (CW): | 3° | Surface Roughness: | 0.08μm |
| Port: | China Port | ||
Product Description

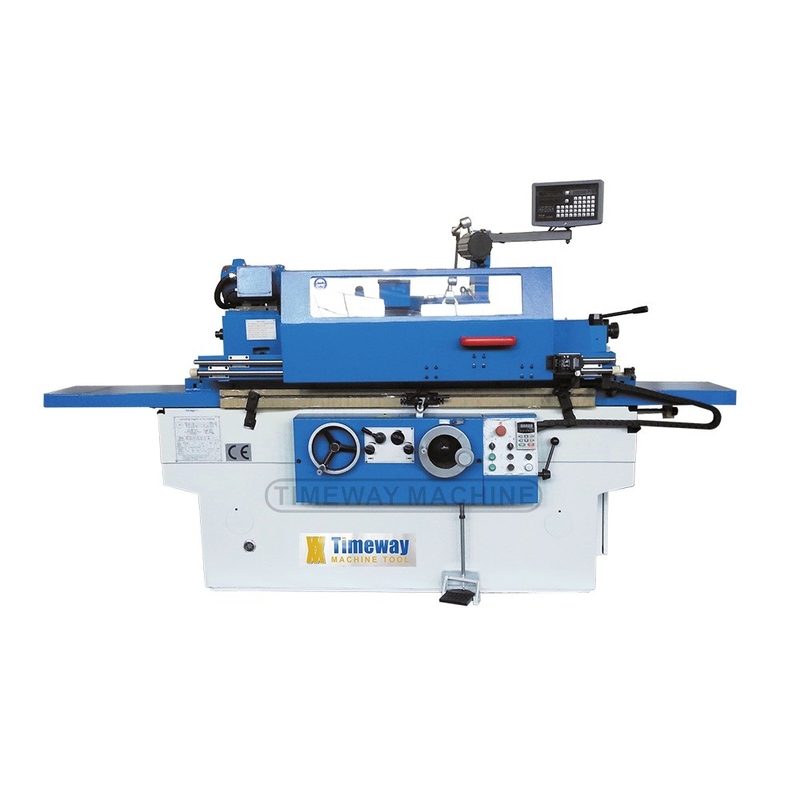

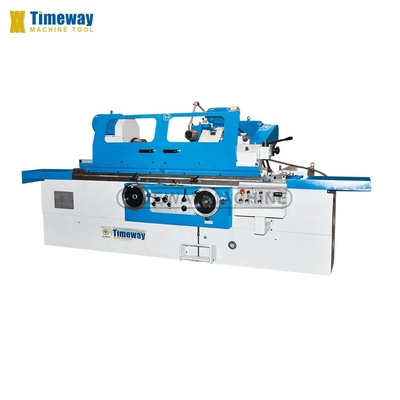

200mm Universal Cylindrical Grinder UG-200 x 500

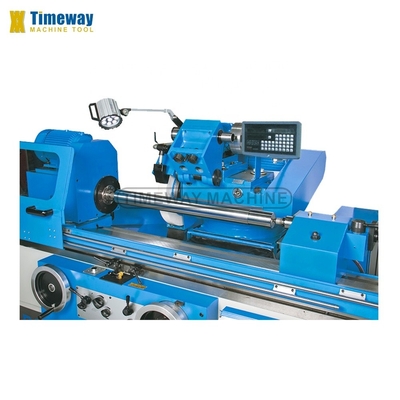

Image Details :

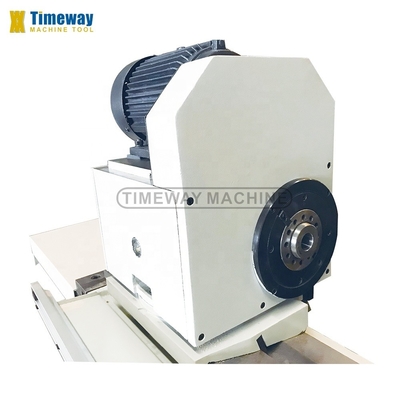

*For UG-series, the workhead can be rotate to any position within its conterclock direction 90°, so it can be suitable for grinding inner or outer surface of taper.
*For UG-series, the cylindrical grinding machine has internal grinding apparatus, internal grinding spindle is supported by precise roll-bearing.
1.The workhead adopts inverter motor to realize stepless speed adjustment.
2.The longitudinal movement of the worktable is driven by hydraulic or by handwheel. The worktable can rotate to a certain degree so as to be suitable for grinding taper.
3.The wheelhead cross feed is driven by hydraulic, which realizes automatic periodical feed and rapid feed. It can also do rough and fine feed through handwheel.
4.Wheelhead spindle is supported by bimetal shell bearing, which make the spindle have high rigidity and stability, ensure heavy, excellent finishing surface.
5.The workhead spindle, wheelhead spindle, internal grinding spindle, coolent pump, hydrodynamic and hydrostatic oilpump are driven by separate motors.

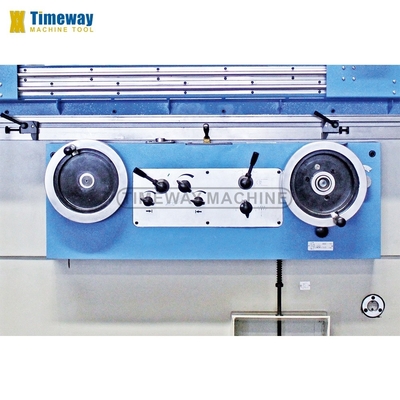

6.Each moving parts of the machine has electric, hydraulic and mechanic interlock structure the machine is well designed with pleasing appearance, all control lever are centralized in panel make operating easy.
7.The wheel dresser can be assembled on the worktable surface of on the tailstock.

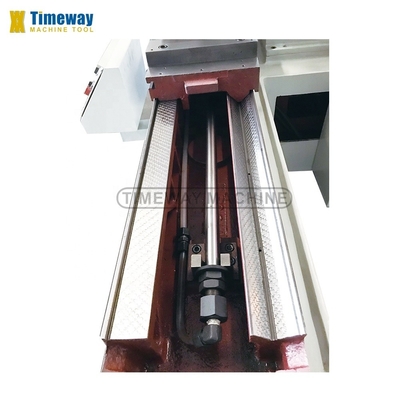

8.The one-piece bed is made of high quality cast iron, rails surface hardened and precision grinding, high stability and high rigidity.
9.The base table slide way with TF material and been precision manual scraped; The wheel head slide way is V-flat rails with liner-roller, high precision and low motion friction.
10.Times testify: The well designed structure ensure excellent processing capability.
Parameter:
| Specification | Unit | UG-200 | UG-320 | UG-400 |
| Distance between centers | mm | 500/750 | 1000/1500/2000/3000 | 1000/1500 |
| Center height | mm | 135 | 180 | 220 |
| Dia. ground (O.D) | mm | 5-200 | 8-320 | 15-400 |
| Dia. ground (I.D) | mm | 25-100 | 30-100 | 16-125 |
| Grinding length (O.D) | mm | 500/750 | 1000/1500/2000/3000 | 1000/1500 |
| Grinding length (I.D) | mm | 125 | 125 | 125 |
| Loading capacity | kg | 100 | 150 | 150 |
| Workhead swivel angle | ° | +90° | +90° | 90° |
| Workhead spindle taper | - | MT4 | MT4 | MT4 |
| Workhead spindle speed | rpm | 25-380 (stepless) | 25-220 (stepless) | 18/37/74/155 |
| Wheelhead spindle speed | rpm | 1670 | 1670 | 1360 |
| Wheelhead rapid feed travel | mm | 50 | 50 | 50 |
| Wheelhead cross travel | mm | 205 | 246 | 310 |
| Wheelhead swivel angle | ° | ±10° | ±30° | ±30° |
| Wheelhead feed of handwheel per rev. (rough/fine) | mm | 2/0.5 | 2/0.5 | 2/0.5 |
| Wheelhead feed of handwheel per gra. (rough/fine) | mm | 0.01/0.0025 | 0.01/0.0025 | 0.01/0.0025 |
| External grinding wheel size | mm | 400x50x203 | 400x50x203 | Max. 500x50x203; Min: 380x50x203 |
| Max. peripheral speed of grinding wheel | m/s | 35 | 35 | 28-35 |
| Internal grinding spindle speed | rpm | 10000/15000 | 10000/15000 | 10000/20000 |
| Internal grinding wheel size | mm | Max: 50x25x13, Min: 17x20x6 | Max: 50x25x13, Min: 17x20x6 | Max: 80x32x20, Min: 15x16x5 |
| Table feed of handwheel per rev. | mm | 6 | 6 | 6 |
| Table swivel angle (CW) | ° | 3° | 3°/3°/2°/2° | 3° |
| Table swivel angle (CCW) | ° | 9° /8° | 7°/6°/5°/3° | 7°/6° |
| Table longitudinal feed speed | m/min | 0.1-4 | 0.1-4 | 0.1-4 |
| Tailstock quill taper | - | MT4 | MT4 | MT4 |
| Tailstock quill travel | mm | 30 | 30 | 30 |
| External grinding motor power | kw | 4 | 5.5 | |
| Internal grinding motor power | kw | 1.1 | 1.1 | |
| Workhead motor power | kw | 1.1 | 1.5 | |
| Gross weight | tons | 3/3.2 | 5.3/6.1/7.9/9.9 | 4.8/5.5 |
| Packing size (LxWxH) | cm | 235/275x203x205 | 322/422/540/739x200x205 | 353/447x195x196 |
Standard accessories:
Measuring bridge plate,
Open steady rest,
Wheel flange,
Wheel extractor,
Balancing arbor,
Grinding wheel,
Coolant tank,
Carbide tripped center,
Driving dog,
Wheel dresser (Without diamond pen),
Work lamp,
Levelling wedge,
Internal grinding attachment (UG),
3-jaw chuck (UG),
Extension shaft (UG),
Internal grinding wheel (UG),
Full set tools,
Operation manual (English edition).
Optional accessories:
Balancing stand,
Magnetic separator,
Paper filter,
Center grinding attachment,
Close steady rest,
End wheel dresser,
Radius wheel dress,
DRO.
