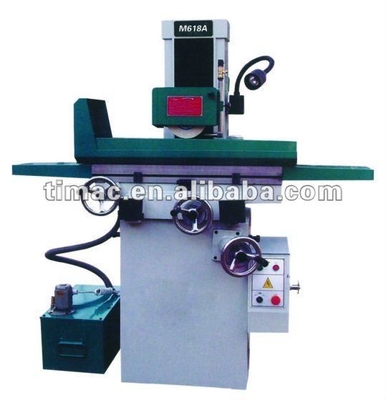

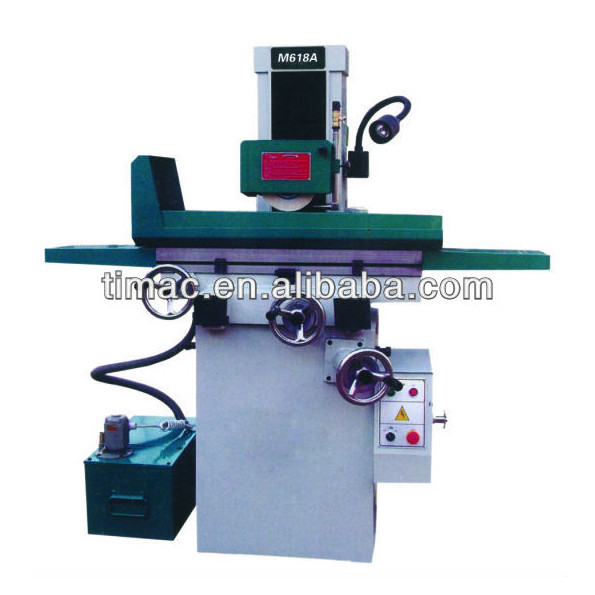

Manufacturing Plant Hand Surface Grinder for M618A Small Manual Surface Grinding Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,900.00/sets 1-2 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Voltage: | 220/380V | Weight (KG): | 750 |
| Warranty: | 1year | Key Selling Points: | High Precision |
| Applicable Industries: | Manufacturing Plant | Type: | Surface Grinding Machine |
| After-sales Service Provided: | Online Support | Max. Grinding Length: | 500 |
| Power: | 1100 | Port: | China Port |
Product Description
Manual Surface Grinding Machine with Horizontal Spindle and Reciprocating Table
Features:
*The manual surface grinding machine adopt the V-type guide, bring transmission by synchronous belt. *Meanwhile, the machine adopt the exceeding precise P4 level ball bearing for spindle, having complete attachment with electromagnetic chuck or the dense chuck of permanent magnetism.
*The machine have the simple and convenient operation, low noise, high precision for processing, steady mechanical performance, reliable hydraulic system of table longitudinal movement.
Model | Unit | M618A |
Table Size(L×W) | mm | 460x180 |
Max. table travel | mm | 500x190 |
Max. workpiece to be ground | mm | 500x190 |
Max. distance of table to spindle center | mm | 335 |
Table slide-way | V-type rail with steel ball | |
Cross feed on handwheel per revolution | mm | 2.5 |
per graduation | mm | 0.02 |
Vertical feed on handwheel per revolution | mm | 1.25 |
per graduation | mm | 0.01 |
Wheel speed | r.p.m | 2850 |
Wheel size(dia.×width×bore ) | mm | 200×16×31.75 |
Spindle motor | w | 1100 |
Coolant pump | w | 40 |
Net weight | kg | 650 |
Gross weight | kg | 750 |
Overall dimension(L×W×H) | m | 1.55x1.06x1.59 |
Packing size(L×W×H) | m | 1.06x1.17x1.87 |
Standard Accessories:
Tool box, Balancing stand/balancing bar, Handwheel nut, Flange wrench, Screwdriver, Balancing screw, Open-end wrench, Inner hexagon spanner, Wheel dresser holder, Machine stand pad, Wheel flange, Wheel dresser, Chuck.
Optional Accessories:
Tiltable permanent chuck, Demagnetizer, Overhead parallel dresser, Angle dresser, Radius dresser, Precision vice, Dust suction device, Digital readout system, Working light, Wheel flange.
