Hydraulic Surface Grinding Machine with 3 mpa Pressure and Stable Performance
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $28,500.00/sets 1-2 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal, Surface Grinding Machine | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Voltage: | 220/380V |
| Weight (KG): | 1300 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Showroom Location: | India, Mexico, South Africa, Morocco, Thailand, Indonesia |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Engine, Gear, Other |
| After-sales Service Provided: | Online Support | Max. Grinding Length: | 630mm |
| Power: | 2200 Kw | Warranty Period: | 1 Year |
| Spindle Motor: | 40 W | Working Pressure: | 3 Mpa |
| Coolant Pump: | 40w | Net Weight: | 1200kg |
| Port: | China Port | ||
Product Description

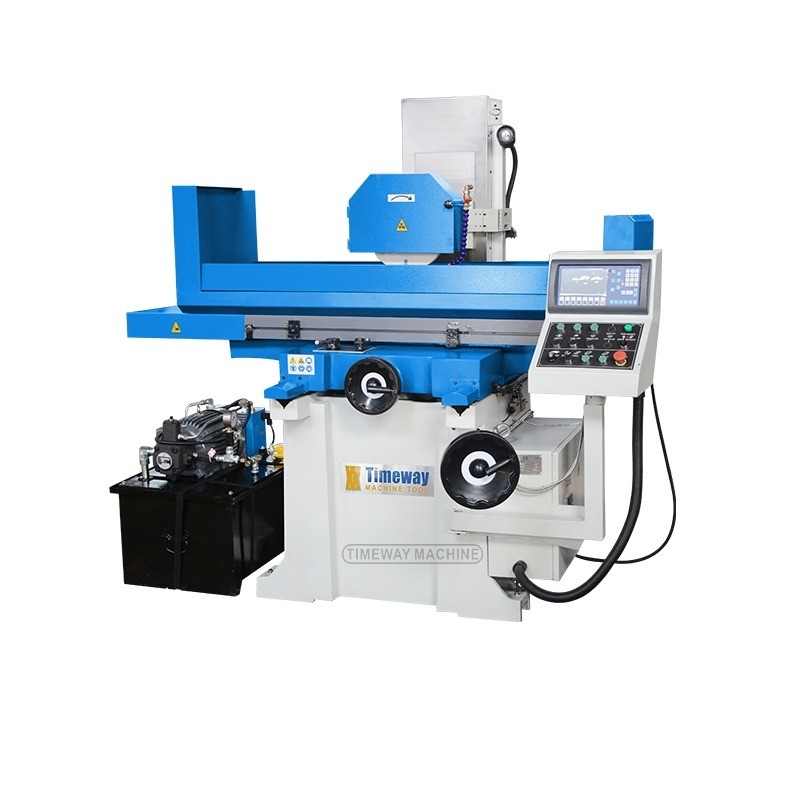

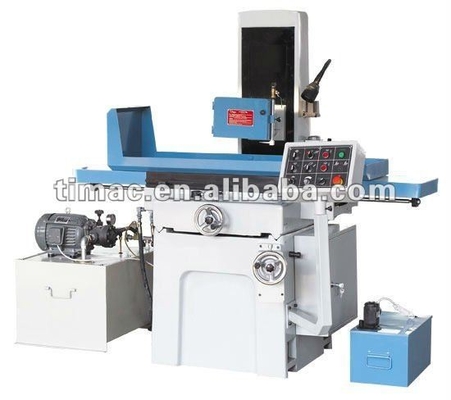

Hydraulic Surface Grinding Machine
Features:
*The manual surface grinding machine adopt the V-type guide, bring transmission by synchronous belt. *Meanwhile, the machine adopt the exceeding precise P4 level ball bearing for spindle, having complete attachment with electromagnetic chuck or the dense chuck of permanent magnetism.
*The machine have the simple and convenient operation, low noise, high precision for processing, steady mechanical performance, reliable hydraulic system of table longitudinal movement.
| Model | Unit | MY300 | MY300A |
| Table Size(L×W) | mm | 600×300 | 750×300 |
| Max. table travel | mm | 630×320 | 780×320 |
| Max. workpiece to be ground | mm | 630×310 | 780×310 |
| Max. distance of table to spindle center | mm | 550 | 550 |
| Table slide-way | V-type rail with steel ball | Double V-type rail | |
| Cross feed on handwheel per revolution | mm | 2.5 | 2.5 |
| per graduation | mm | 0.02 | 0.02 |
| Vertical feed on handwheel per revolution | mm | 1.25 | 2 |
| per graduation | mm | 0.01 | 0.01 |
| Wheel speed | r.p.m | 2850 | 1450 |
| Wheel size(dia.×width×bore ) | mm | 200×20×31.75 | 250×25×76 |
| Spindle motor | w | 2200 | 2200 |
| Hydraulic station motor | w | 1500 | 2250 |
| Working pressure | mpa | 3 | 4 |
| Max. flow | l/min | 20 | 18 |
| Fuel tank capacity | l | 80 | 80 |
| Coolant pump | w | 40 | 40 |
| Net weight / Gross weight | kg | 1200/1330 | 1300/1430 |
| Overall dimension(L×W×H) | m | 1.90×1.53×1.83 | 1.88×1.48×1.85 |
| Packing size(L×W×H) | m | 1.98×1.53×2.03 | 1.91×1.50×2.03 |
Standard Accessories:
Tool box, Balancing stand/balancing bar, Handwheel nut, Flange wrench, Screwdriver, Balancing screw, Open-end wrench, Inner hexagon spanner, Wheel dresser holder, Machine stand pad, Wheel flange, Wheel dresser, Chuck.
Optional Accessories:
Tiltable permanent chuck, Demagnetizer, Overhead parallel dresser, Angle dresser, Radius dresser, Precision vice, Dust suction device, Digital readout system, Working light, Wheel flange.
