Small Multi- Grinding Machine 2M2190A Versatile Tool Grinder with Long Service Life
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY, TIMAC |
| Certification: | CE, ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,000.00/sets >=1 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Wheel Size(mm): | 200x20x75mm |
| Year: | 2020 | Voltage: | Customized |
| Dimension(L*W*H): | 1520x1133x1173 Mm | Weight (KG): | 1285 |
| Power (kW): | 2.905 | Warranty: | 1 Year |
| Key Selling Points: | Long Service Life | Showroom Location: | France, Australia, South Korea, Russia, Italy, Thailand, Germany |
| Applicable Industries: | Farms, Manufacturing Plant, Home Use, Construction Works , Energy & Mining, Retail, Machinery Repair Shops, Building Material Shops, Advertising Company | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Bearing, Gearbox, Pump |
| Machine Type: | Tool Grinder | Function: | Grinding Surface And Cylindrical |
| Max. Grinding Diameter: | 200mm | Grinding Length: | 500mm |
| Loading Capacity: | 10kg | Grinding Surface Size: | 300x125mm |
| Workhead Swivel Angle: | 90 | Wheelhead Spindle Speed: | 2500r/min |
| Internal Grinding Spindle Speed: | 13500r/min | Color: | Cutomized |
| After-sales Service Provided: | Online Support, Field Maintenance And Repair Service, Video Technical Support, Field Installation, Commissioning And Training | After Warranty Service: | Video Technical Support |
| Local Service Location: | France, Thailand, Italy, Russia, Germany | Port: | China Port |
Product Description

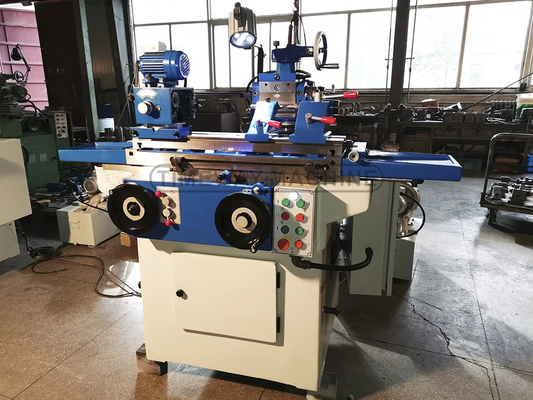

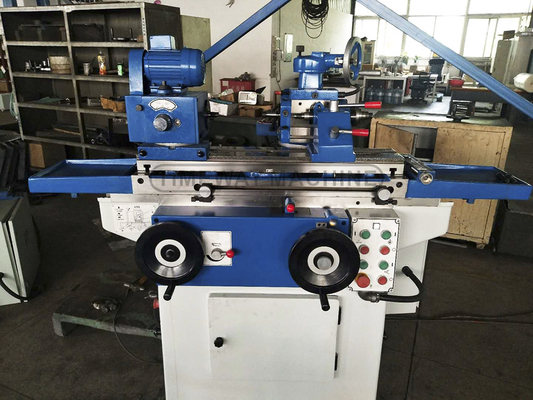

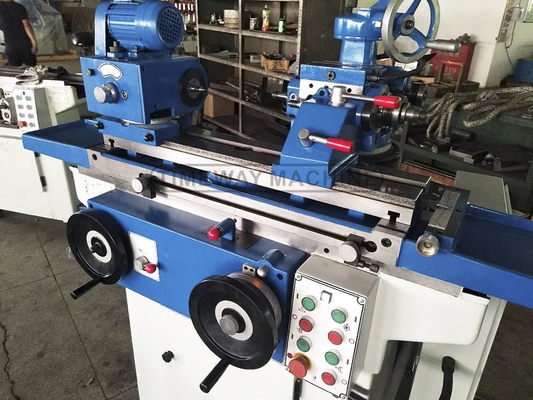

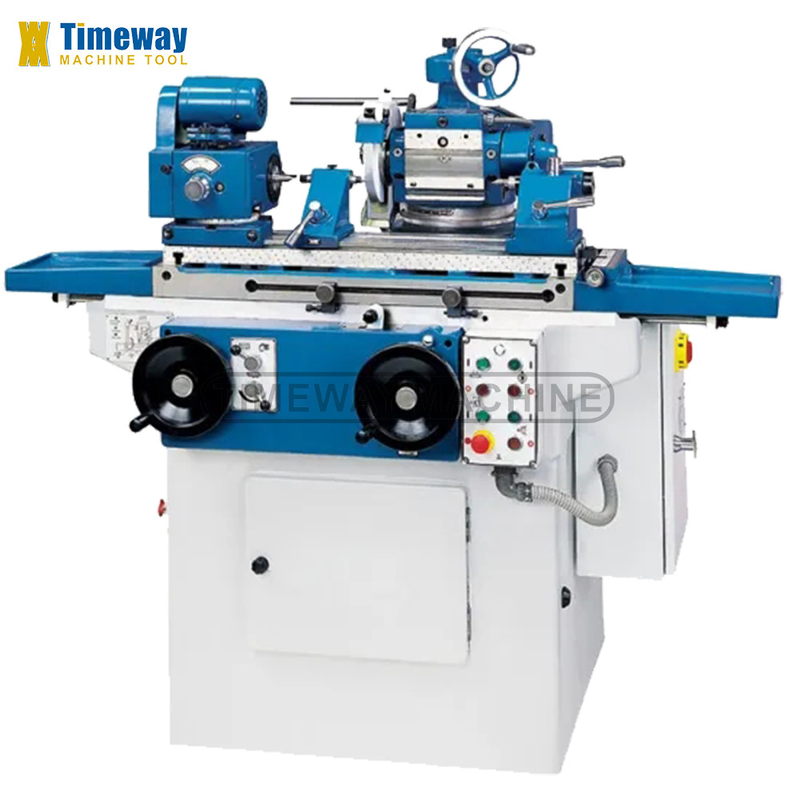

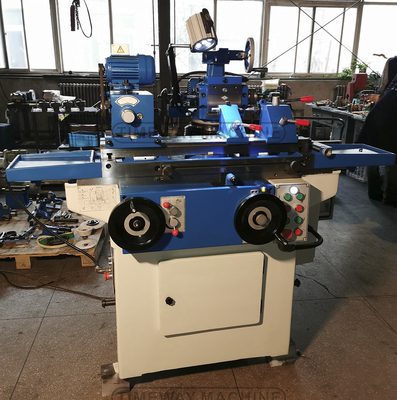

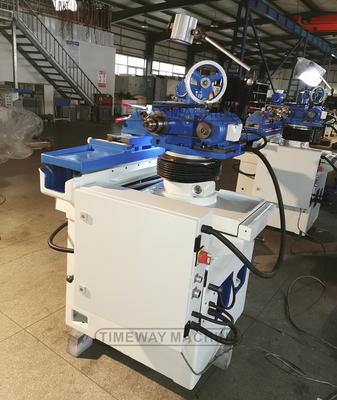

Small Multi-use Grinding Machine 2M2190A
Features:
1. The muti-use grinding machine not only can grind the internal & external cylindrical and conical workpiece, plane, vertical plane, cant and groove and also can easily grind cutters.
2. The grinding wheel runs well and easily adjustment.
3. The worktable can reciprocate automatically driven by hydraulic, and also can driven by manual hydraulic servo device.
Functions show:
Internal grinding Grinding saw blade
Grinding straight groove hob blade Grinding Vertical mill blade
Technical parameter:
| Specification | 2M9120A | 2MA9125 | |
| Max.swing diameter over table | Φ200mm | Φ250mm | |
| Max.workpiece length | 500mm | ||
| Size for surface Grinding | 300×125mm | ||
| Size for cutter grinding | Φ200×500mm | ||
| Max.weight of Workpiece | 10kg | ||
| Workhead spindle speeds | 110, 200, 300rpm | 60, 90, 120, 175, 235 , 345rpm | |
| Workhead swivel | ±90º | ||
| Max.traverse of the wheelhead - Vertical/Cross | 200/200mm | 250/200mm | |
| Wheelhead spindle speeds | 2500rpm | ||
| Speed of wheelhead up-down travel |
| 280/mm/min | |
| Internal grinding spindle speed | 13500rpm | ||
| Longitudinal table travel,hand control | 480mm | ||
| Table traverse speed | <7m/min | ||
| Max.swivel of table | ±45º~-30º | ||
| Total power | 2.905kw | 2.995kw | |
| Overall dimensions | 1520×1133×1173mm | 1520×1220×1630mm | |
| Size of case | 1900×1400×1630mm | 1900×1400×1630mm | |
| Gross Weight/Netweight | 1700/1285kg | 1780/1380kg | |
| Working Accuracy | Circularity | External: 0.0015mm | |
| Internal: 0.0025mm | |||
| Circularity | Ra0.32m | ||
| Surface roughness | Ra0.63µm | ||
Standard Accessories:
- Coolant equipment; Grinding wheel
- Internal grinding wheelhead
- Extended grinding wheel spindle
- Three-jaw chuck
- Centre
- Half centre
- Left tailstock
- Driving dogs
- Wheel dresser without diamond
- Wheel pullers
- Vee-belt
- Flanges for grinding wheel
- Wheel guards
Optional Accessories:
- Dust collector
- Center gauge
- Universal wheel dresser
- Tool grinding head
- Rectangular magnetic chuck
- Permanent magnet chuck
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
