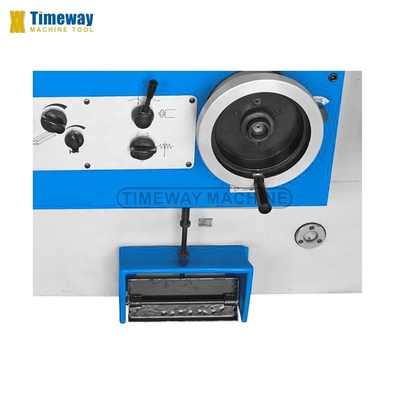

roll-bearing. 1.The longitudinal movement of the worktable is driven by hydraulic or by handwheel. The worktable can rotate to a certain degree
so as to be suitable for grinding taper.

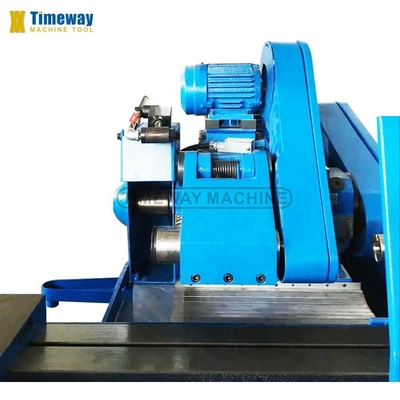

2.The wheelhead cross feed is driven by hydraulic, which realizes automatic periodical feed and rapid feed. It can also do rough
and fine feed through handwheel.
3.Wheelhead spindle is supported by Bimetal Shell Bearing, which make the spindle have high rigidity and stability, ensure heavy,
excellent finishing surface.
4.The one-piece bed is made of high quality cast iron, rails surface hardened and precision grinding, high stability and high
rigidity.
5.Times testify: The well designed structure ensure excellent processing capability; The base table slide way with TF material and
been precision manual scraped; The wheel head slide way is V-flat way, with liner-roller.

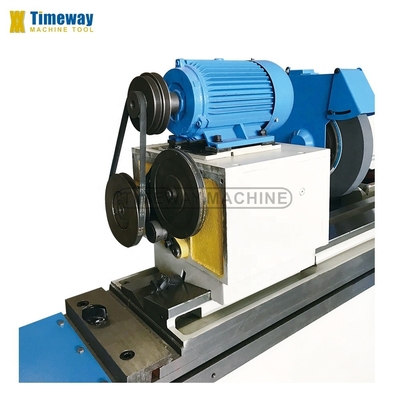

6.The workhead spindle, wheelhead spindle, internal grinding spindle, coolent pump, hydrodynamic and hydrostatic oilpump are
driven by separate motors.
7.Each moving parts of the machine has electric, hydraulic and mechanic interlock structure the machine is well designed with
pleasing appearance, all control lever are centralized in panel make operating easy.
8.The wheel dresser can be assembled on the worktable surface of on the tailstock.
Standard accessories:
Measuring bridge plate,
Open steady rest,
Wheel flange,
Wheel extractor,
Balancing arbor,
Grinding wheel,
Coolant tank,
Coolant tank,
Carbide tripped center,
Driving dog,
Wheel dresser (Without diamond pen),
Work lamp,
Levelling wedge,

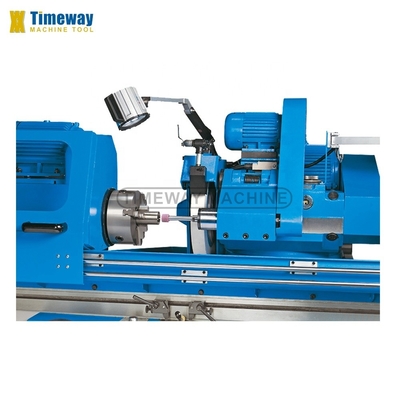

Internal grinding attachment (UG),
3-jaw chuck (UG),
Extension shaft (UG),
Internal grinding wheel (UG),
Full set tools,
Operation manual(English edition).
Optional accessories:
Balancing stand,
Magnetic separator,
Paper filter,
Center grinding attachment,
Close steady rest,
End wheel dresser,
Radius wheel dress,
DRO.
