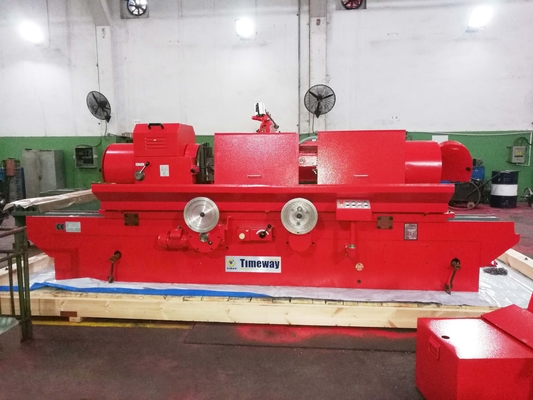

Customized Color Precision QM600A Crankshaft Grinding Machine Automatic Grinding Tools
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $99,000.00/sets >=1 sets |
| Packaging Details: | Wooden case/pallet(can be fumigated) |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| No-load Speed(rpm): | 890 Rpm | Blade Size(mm): | 900x32x305mm |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Bearing, Gearbox, Motor, Gear, Pump | Condition: | New |
| Voltage: | 220/380V | Dimension(L*W*H): | 4166x2037x1584 |
| Weight (KG): | 6000 | Power (kW): | 11 |
| Key Selling Points: | Automatic | Warranty: | 1 Year |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Energy & Mining | Showroom Location: | Canada, United States, Italy, Germany, Mexico, Spain, South Africa, Australia |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | CRANKSHAFT: | GRINDING MACHINE |
| Max. Work Swing Dia. X Max. Length: | 580x1600mm | Max. Swing Over Table: | 580mm |
| Throw Of Crankshaft: | 110mm | Center Height: | 300mm |
| Max. Cross Movement: | 185mm | Type: | Cut Off Machine |
| Wheel Size: | 900x32x305mm | Color: | Customized Color |
| Port: | China Port | ||
Product Description
Product Description

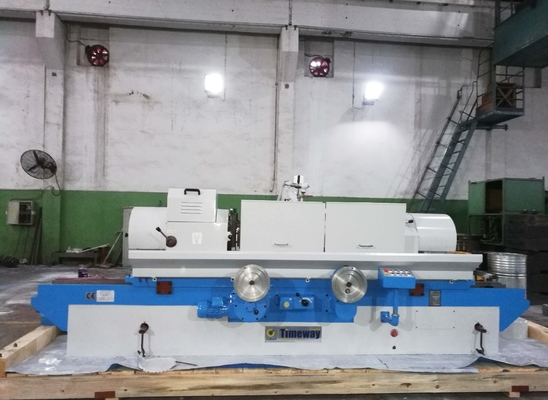

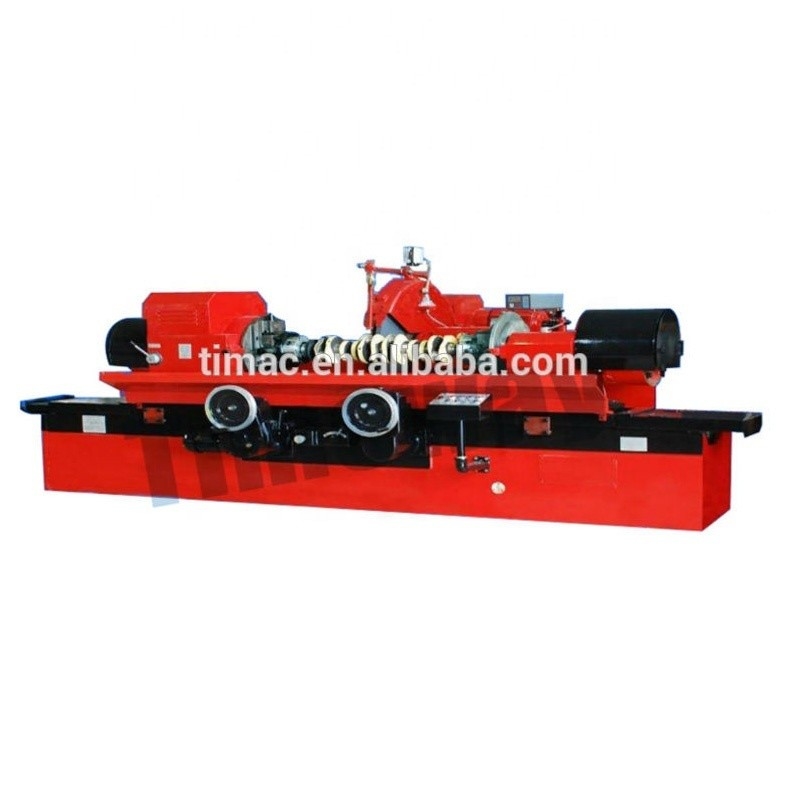

Crankshaft Grinding Machine
Specification
Specifications | Unit | QM-600A | QM-600Ax18 | QM-600Ax20 | QM-600C | QM-630A |
Max. work swing dia. x Max. length | mm | φ580x1600 | φ580x1800 | φ580x2000 | Φ600x1600 | Φ630x1800 |
Max. swing over table | mm | 580 | 580 | 580 | 600 | 630 |
Work dia. ground with steady rest | mm | φ30~φ100 | φ30~φ100 | φ50~φ120 | φ30~φ100 | φ50~φ120 |
Throw of crankshaft | mm | 110 | 110 | 120 | 110 | 120 |
Max. work length ground: in 3-jaw chuck | mm | 1400 | 1600 | 1800 | 1400 | 1600 |
between centers | mm | 1600 | 1800 | 2000 | 1600 | 1800 |
Max. work weight | kg | 120 | 120 | 150 | 120 | 150 |
Center height | mm | 300 | 300 | 300 | 300 | 315 |
Max. cross movement | mm | 185 | 185 | 185 | 185 | 185 |
Wheel spindle speed | r/min | 740, 890 | 740, 890 | 740, 890 | 740, 890 | 740, 890 |
Wheel peripheral speed | m/sec | 25.6~35 | 25.6~35 | 25.6~35 | 25.6~35 | 25.6~35 |
Wheel size | mm | φ900x32xφ305 | φ900x32xφ305 | φ900x32xφ305 | φ900x32xφ305 | φ900x32xφ305 |
Weight | kg | 6000 | 6200 | 7000 | 6000 | 6500 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
