400KN Horizontal Hydraulic Internal Broaching Machine for Accurate Machining
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $180,000.00/sets 1-2 sets |
| Packaging Details: | Standard package |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Motor, Gear |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Weight (KG): | 10500 | Applicable Industries: | Manufacturing Plant, Other |
| Showroom Location: | Pakistan, Morocco, Kenya, Argentina, UAE, Romania, Bangladesh, Uzbekistan | Color: | Customized |
| Number Of Broaching Stations: | 1 | Rated Pulling Force: | 400KN |
| Max. Broaching Stroke: | 2000mm | Broaching Tool Length Range: | 600-2050mm |
| Max. Outer Of Workpiece: | 640mm | Working Speed: | 1.5-7m/min |
| Machine Weight: | 10500kg | Machine Size: | 8640*2055*1375mm |
| Total Power: | 37kw | Port: | China Port |
Product Description
Summary
Machine Applications

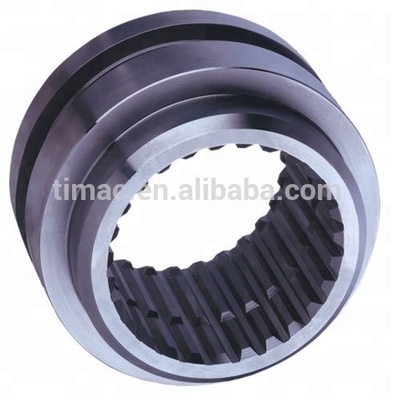

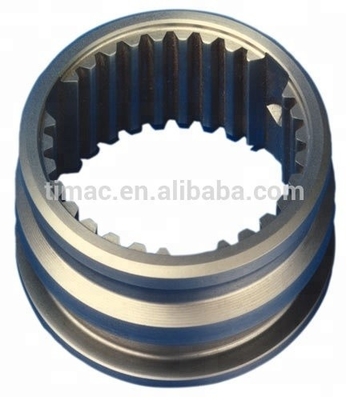

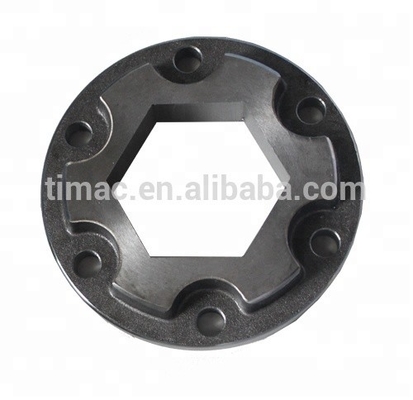

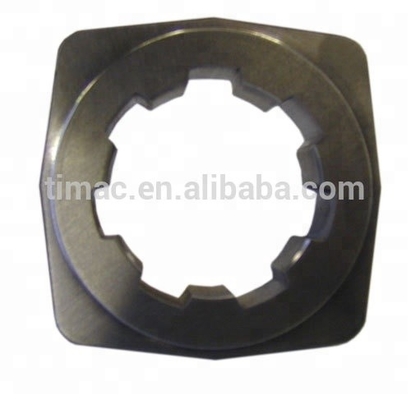

* The machine is applicable to machining inner holes of various types of parts, such as round holes, splined holes, holes with single key, involute profile and holes with internal spline.
Product Description

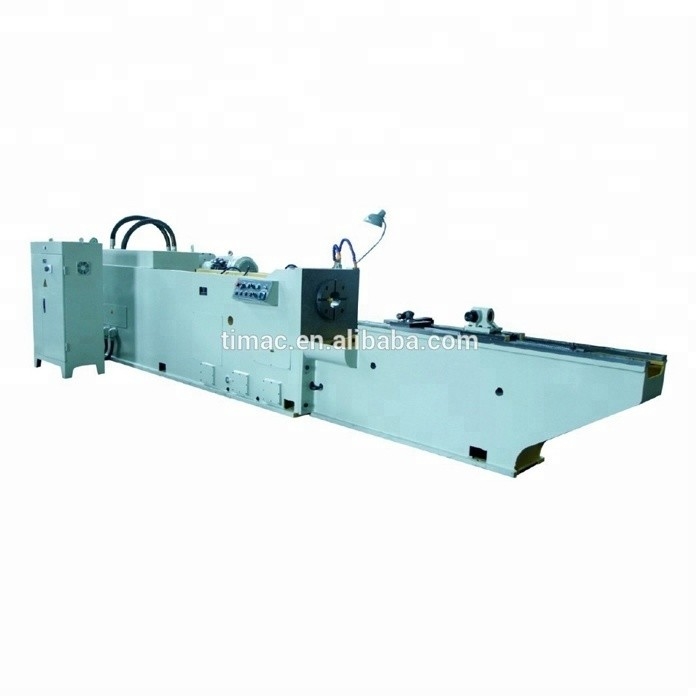

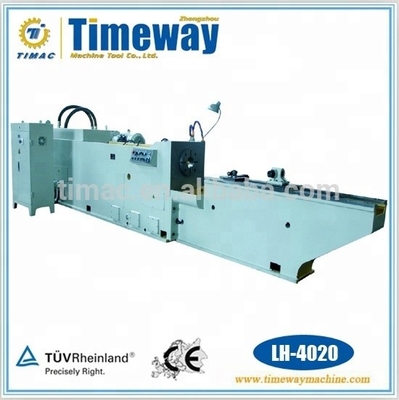

Horizontal Hydraulic Internal Broaching Machine
Features：
* Driven by hydraulic power, the machine with an overload safety device works steadily and enables stepless speed change.
* Broaching tool is fully escorted during the whole stroke.
* The machine is equipped with high-pressure coolant chip flushing unit.
* The machine has three operating modes: automatic cycling, semi-automatic cycling, and segmented cycling.
* The hydraulic oil tank can be equipped with a set of fully functional oil cooler, which make the broaching machine be able to work under normal oil temperature for long time.
* The machine adopts centralization lubrication device and automatical chip removing device.
* Broaching tool is fully escorted during the whole stroke.
* The machine is equipped with high-pressure coolant chip flushing unit.
* The machine has three operating modes: automatic cycling, semi-automatic cycling, and segmented cycling.
* The hydraulic oil tank can be equipped with a set of fully functional oil cooler, which make the broaching machine be able to work under normal oil temperature for long time.
* The machine adopts centralization lubrication device and automatical chip removing device.
Specification
Specifications | Units | LH-1012 | LH-4020 | LH-6020 |
Number of broaching stations | 1 | 1 | 1 | |
Rated pulling force | KN | 100 | 400 | 600 |
Max. stroke length | mm | 1250 | 2000 | 2000 |
Length range of broaching tool | mm | 600-1300 | 600-2050 | 600-2050 |
Hole diameter of worktable | mm | Φ100 | Φ150 | Φ250 |
Max. outer diameter of workpiece | mm | Φ570 | Φ640 | Φ680 |
Working speed | m/min | 2-11 | 1.5-7 | 1-6 |
Returning speed | m/min | 14-25 | 12-20 | 5-14 |
Machine total power | Kw | 15 | 37 | 55 |
Machine net weight | kg | 4800 | 10500 | 12000 |
Positive Comments From Customers
Company Profile
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
