580x1600 Max. Work Swing Dia. x Max. Length Crankshaft Grinding Machine at 220V/380V
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $100,000.00/sets >=1 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Circular Saw Machine |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel | Voltage: | 220V/380V |
| Rated Power: | 11kw | Dimension(L*W*H): | 4166x2037x1584mm |
| Warranty: | One Year | Key Selling Points: | High-accuracy |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Brazil, Mexico, Russia, Kazakhstan |
| Weight (KG): | 6000 KG | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| CRANKSHAFT: | GRINDING MACHINE | Max. Work Swing Dia. X Max. Length: | 580x1600 |
| Max. Swing Over Table: | 580 | Throw Of Crankshaft: | 110 |
| Max. Work Weight: | 120 | Center Height: | 300 |
| Work Speed: | 25, 45, 95 | Max. Cross Movement: | 185 |
| Color: | Customer Choose | Port: | China Port |
Product Description
Product Description

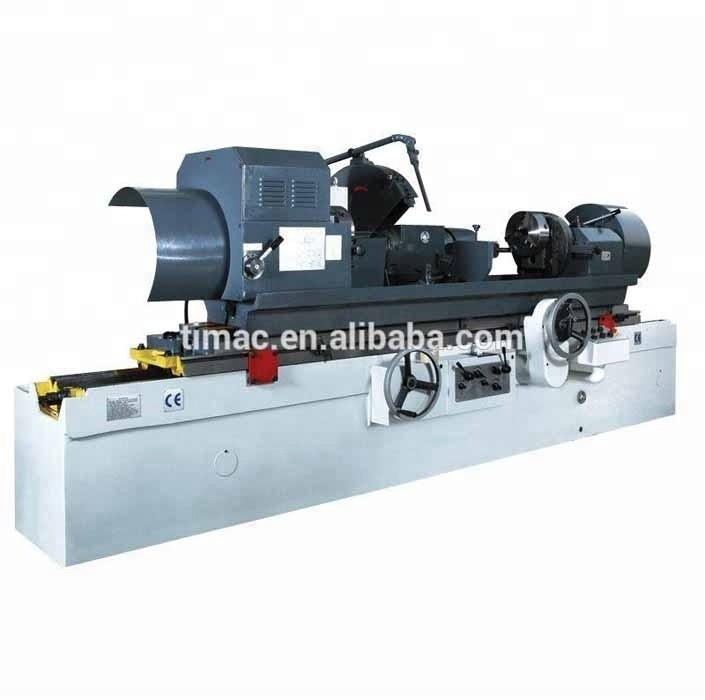

CRANKSHAFT GRINDING MACHINE
Feature
1. 4 different work speeds are obtainable by making use of double-speed motor & the belts in workhead.
2. Union chuck are used in the headstock and tailstock for adjusting eccentricity up to 120mm.
3. Friction coupling is used in the headstock transmission chain for its easy adjustment.
4. Table longitudinal traverse is operated either by hand or by power.
5. Wheelhead rapid approach and withdraw is effected by hydraulic device.
6. Rolling guideways are used on wheelhead and made by high quality material. The wheel spindle being of 80mm in diameter has good rigidity and strength.
7. Plastic coated bed ways with less friction.
8. The bed ways and wheelhead ways are lubricated in automatic cycle by means of oil pump.
9. The digital display device can be optional.
2. Union chuck are used in the headstock and tailstock for adjusting eccentricity up to 120mm.
3. Friction coupling is used in the headstock transmission chain for its easy adjustment.
4. Table longitudinal traverse is operated either by hand or by power.
5. Wheelhead rapid approach and withdraw is effected by hydraulic device.
6. Rolling guideways are used on wheelhead and made by high quality material. The wheel spindle being of 80mm in diameter has good rigidity and strength.
7. Plastic coated bed ways with less friction.
8. The bed ways and wheelhead ways are lubricated in automatic cycle by means of oil pump.
9. The digital display device can be optional.
Specification
Specifications | Unit | QM-600A | QM-600Ax20 | QM-600C | QM-630A |
Max. work swing dia. x Max. length | mm | φ580x1600 | φ580x2000 | Φ600x1600 | Φ630x1800 |
Max. swing over table | mm | 580 | 580 | 600 | 630 |
Work dia. ground with steady rest | mm | φ30~φ100 | φ50~φ120 | φ30~φ100 | φ50~φ120 |
Throw of crankshaft | mm | 110 | 120 | 110 | 120 |
Max. work length ground: in 3-jaw chuck | mm | 1400 | 1800 | 1400 | 1600 |
between centers | mm | 1600 | 2000 | 1600 | 1800 |
Max. work weight | kg | 120 | 150 | 120 | 150 |
Center height | mm | 300 | 300 | 300 | 315 |
Work speed | r/min | 25, 45, 95 | 30, 45, 65, 100 | 25, 45, 85 | 30,45,65,100 |
Max. cross movement | mm | 185 | 185 | 185 | 185 |
Wheelhead rapid approach & withdrawal | mm | 100 | 100 | 100 | 100 |
Wheel spindle speed | r/min | 740, 890 | 740, 890 | 740, 890 | 740, 890 |
Overall capacity of motors | kw | 9.82 | 11.12 | 9.82 | 11.12 |
Overall dimensions(L x W x H) | mm | 4166x2037x1584 | 4166x2037x1584 | 4166x2037x1584 | 4166x2037x1584 |
Weight | kg | 6000 | 7000 | 6000 | 6500 |
Ovality(new standard) | mm | 0.005 | 0.005 | 0.005 | 0.005 |
Cylindricity | mm | 0.01 | 0.01 | 0.01 | 0.01 |
Roughness Ra | um | 0.32 | 0.32 | 0.32 | 0.32 |
Standard Accessories:
Jaw chucks,
Wheel dresser,
Steady rest,
Wheel balancing arbor,
Leveling wedge,
Wheel adaptor,
Driving god,
Vertical aligning stand,
Horizontal aligning stand.
Wheel dresser,
Steady rest,
Wheel balancing arbor,
Leveling wedge,
Wheel adaptor,
Driving god,
Vertical aligning stand,
Horizontal aligning stand.

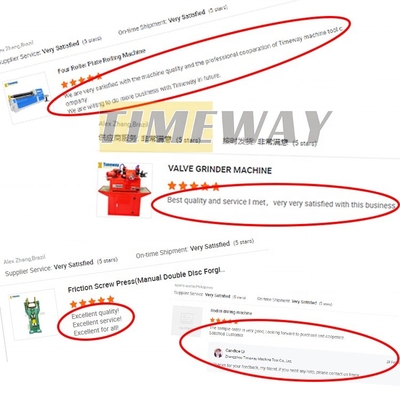

Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile

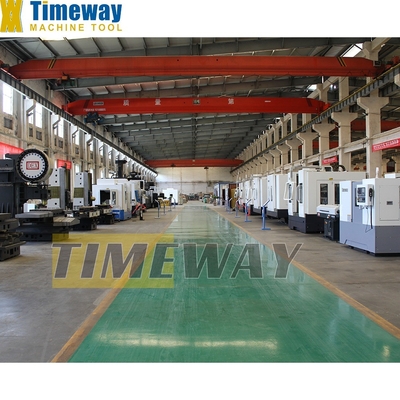

Factory Display：
