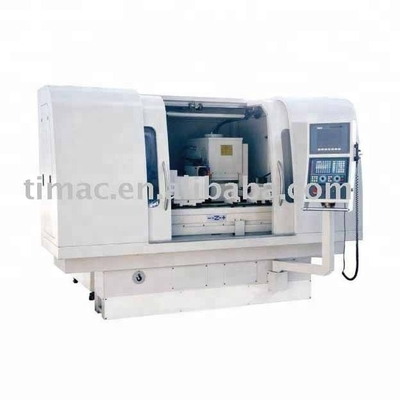

Max. Grinding Diameter Universal CNC Cylindrical Grinder for Precise Results
Product Details:
Place of Origin: | China |
Brand Name: | TIMAC TIMEWAY |
Certification: | CE ISO |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | $100,000.00/sets >=1 sets |
Packaging Details: | Wooden case/Pallet(can be fumigated) |
Supply Ability: | 100 Set/Sets per Month |
Detail Information |
|||
Type: | Universal, Cylindrical Grinding Machine | CNC Or Not: | CNC |
---|---|---|---|
Condition: | New | Wheel Size(mm): | 400x50x127 |
Voltage: | 220V/380V | Dimension(L*W*H): | As Table Size |
Weight (KG): | 4000 | Power (kW): | 4 |
Warranty: | 1 Year, 1year | Key Selling Points: | High Productivity |
Showroom Location: | Australia, Russia, Brazil | Applicable Industries: | Manufacturing Plant |
Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
Core Components: | Motor, Other | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Universal CNC Cylindrical Grinder: | Universal CNC Cylindrical Grinder | Max. Grinding Length: | As Model |
Max. Grinding Diameter: | As Work Table | Weight: | As Model |
Power: | 4KW | Port: | China Port |
Product Description
Product Description

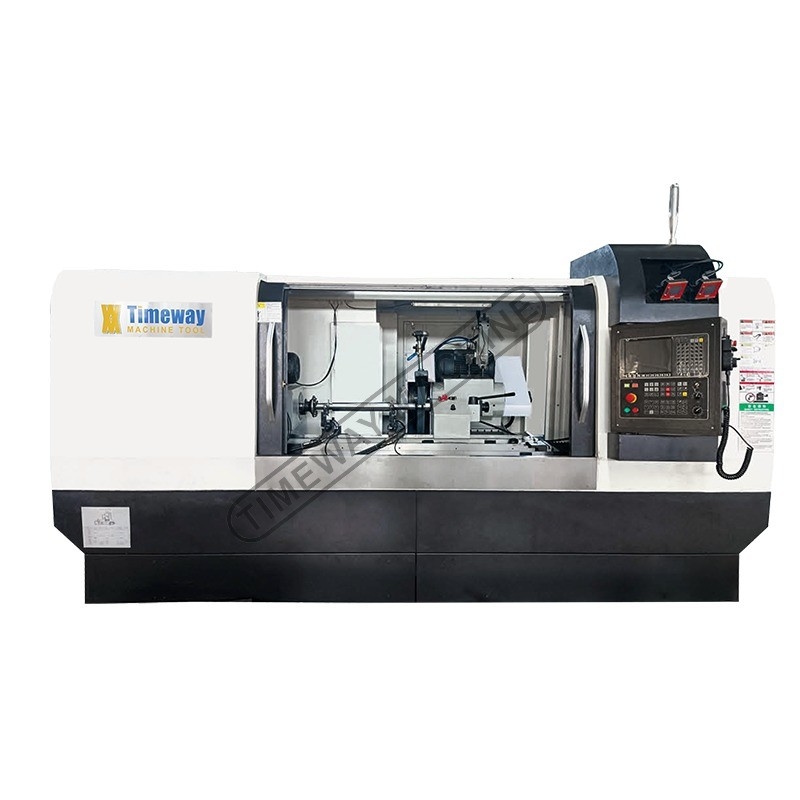

CNC Cylindrical Grinder

Specification
C Series | Unit | C-600CNC | C-1000CNC | ||
Capability | Distance between center | mm | 600 | 1000 | |
Height center | mm | 140 | 140 | ||
Max. grinding diameter | mm | 275 | 275 | ||
Max. weight of workpiece | kg | 100 | 100 | ||
Wheel head | Wheel size | mm | 400x50x127 | 400x50x127 | |
Peripheral speed | m/s | 45 | 45 | ||
Power of main motor | kw | 4 | 4 | ||
Work head | Rotation speed | rpm | 10-1000 | 10-1000 | |
Center taper | MT | 4 | 4 | ||
Tailstock | Center taper | MT | 4 | 4 | |
Quill travel | mm | 40 | 40 | ||
Weight/Dimensions | Machine weight | kg | 4000 | 4500 | |
Dimensions | m | 3x2.7x1.8 | 3.9x2.7x1.8 | ||
Package dimensions | m | 3.7x2.2x2.3 | 3.9x2.2x2.3 |
RS Series | Unit | RS-1000CNC | RS-1500CNC | RS-2000CNC | ||
Capability | Distance between center | mm | 1000 | 1500 | 2000 | |
Height center | mm | 180 | 180 | 180 | ||
Max. grinding diameter | mm | 350 | 350 | 350 | ||
Max. weight of workpiece | kg | 150 | 200 | 300 | ||
Wheel head | Wheel size | mm | 500x50x127 | 500x50x127 | 500x50x127 | |
Peripheral speed | m/s | 45 | 45 | 45 | ||
Power of main motor | kw | 7.5 | 7.5 | 7.5 | ||
Work head | Rotation speed | rpm | 10-180 | 10-180 | 10-180 | |
Center taper | MT | 5 | 5 | 5 | ||
Tailstock | Center taper | MT | 4 | 4 | 4 | |
Quill travel | mm | 40 | 40 | 40 | ||
Weight/Dimensions | Machine weight | kg | 4700 | 5200 | 5700 | |
Dimensions | m | 4.2x2.95x2.05 | 5.3x2.95x2.05 | 6.4x2.95x2.05 |
Working Accuracy:
Roundness | mm | 0.0025 | ||||||
Uniformity of dia. In longitudinal section | mm | 0.005 | ||||||
Uniformity of dia. | mm | Fixed feed grinding 0.02 | ||||||
Surface roughness | μm | Ra 0.32 |
Client feedback

Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile

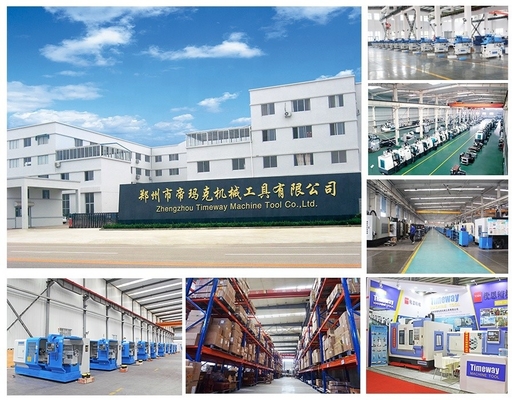

Factory Display:

Factory Profile:
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction:

Company Profile:
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Customer Visited:
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
