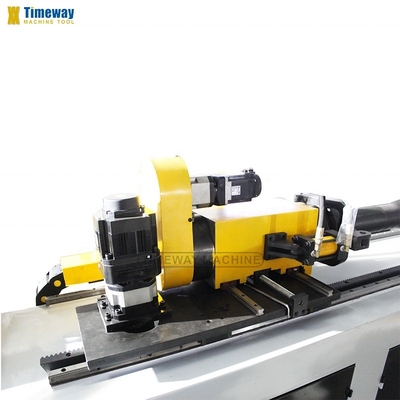

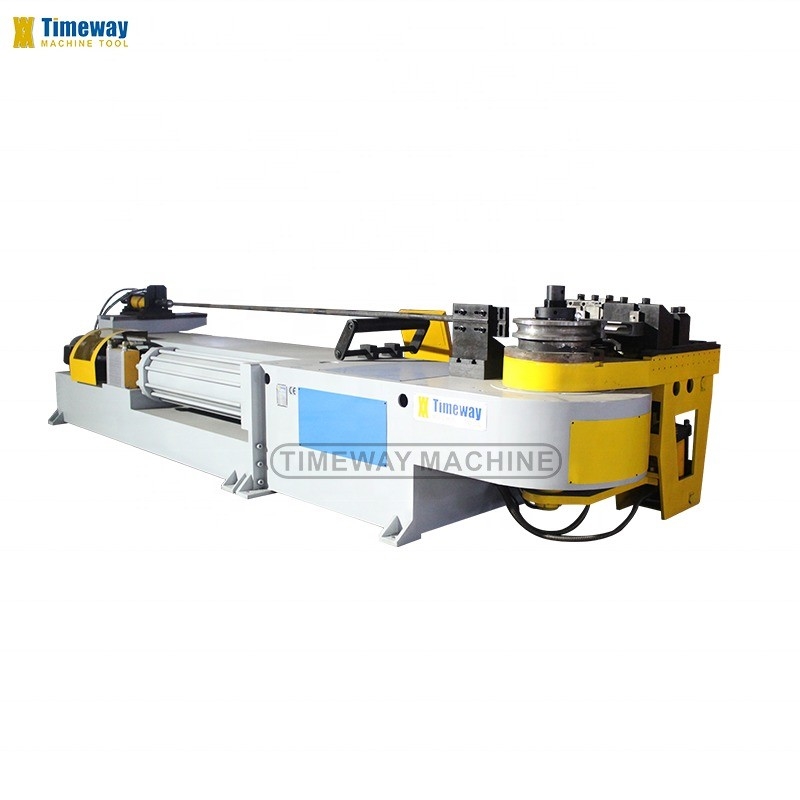

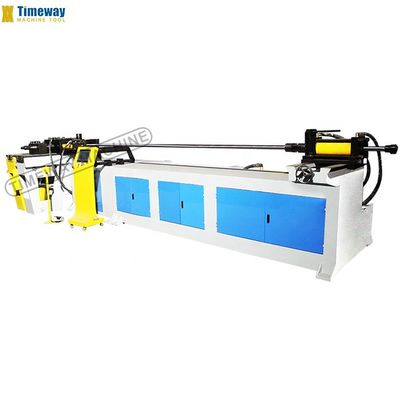

CDW27Y 159 x 14 DW Single Hydraulic Pipe Bending Machine for Heavy-Duty Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $47,000.00/sets >=1 sets |
| Packaging Details: | in pallet |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Material / Metal Processed: | ALLOY, Brass / Copper, Carbon Steel, Stainless Steel, Aluminum | Condition: | New |
|---|---|---|---|
| Machine Type: | Bending Machine | Bending Radius (mm): | 75 - 850 |
| Max. Bending Angle (Deg): | 185 | Bending Precision (Deg): | ±0.05 |
| Automation: | Automatic | Extra Services: | Machining |
| Power (kW): | 22 | Weight (KG): | 12000 |
| Warranty: | 1 Year | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works |
| Key Selling Points: | Automatic | Showroom Location: | Argentina, Romania, Uzbekistan, Malaysia, Australia, Turkey, Germany, Viet Nam, Brazil, Peru, Indonesia, Russia, Thailand |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Pump, Gear, PLC, Engine, Other, Gearbox, Other | Type: | Hydraulic Bending |
| Model: | CDW27Y - 159 X 14 | After Warranty Service: | Video Technical Support |
| Material: | Stainess Steel | Color: | Optional |
| Warranty Period: | 1 Year | Bending Angle Range: | 0-190mm |
| Function: | Steel Metal Bending | Motor Power: | 22kw |
| Port: | China Port | ||
Product Description
Products Description
Mechanical features
PLC programmable controller is adopted, which can set multiple bending angles, high stability, no contact, high stability, low failure rate, and easy maintenance.
The Unit Recommended to Use:
Auto parts (brake hose, bumper, muffler, seat),motorcycle manufacturing, bicycle industry, fitness equipment, air conditioning and refrigeration, steel furniture, bathroom equipment and other industries.
Model | Unit | CDW27Y-159x14 |
Max. bending pipe OD×wall thickness | mm | Φ159× 14 |
Min. bending radius | mm | R75 |
Max. bending radius | mm | R850 |
Max. effective distance of Mandrel | mm | 5800 |
Max. Bending Degree | ° | 185° |
Max. Bends for Each Tube | 16piece | |
Max. hydraulic pressure | Mpa | 14Mpa |
Hydraulic system control | Electromagnetic valve | |
Oil tank capacity | L | 300 |
Main motor power | kw | 22 |
Overall dimensions (L×W×H) | mm | 7000×2200×1700 |
Machine weight | kg | 12000 |
Interactive PLC touch screen System diagnostics function Clockwise bending direction Fully hydraulic clamping on clamp die and pressure die Level-way hydraulic clamping Bending Axis-Driven by Cylinder Feeding Axis-Manual Rotating Axis-Manual Touch screen control 16 types bending angle CE electrical cabinet |
