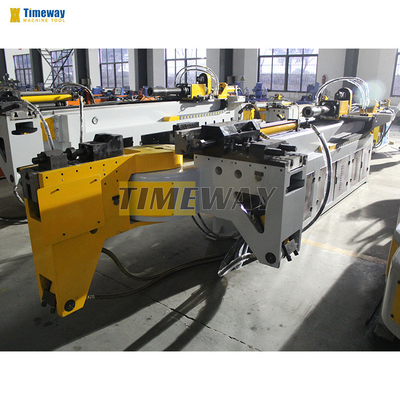

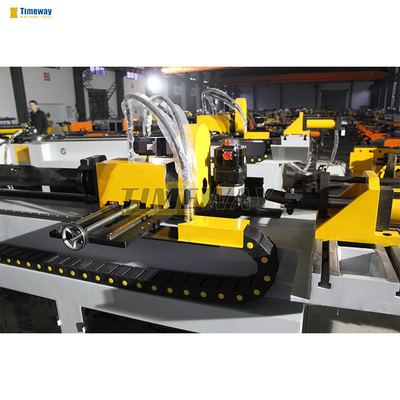

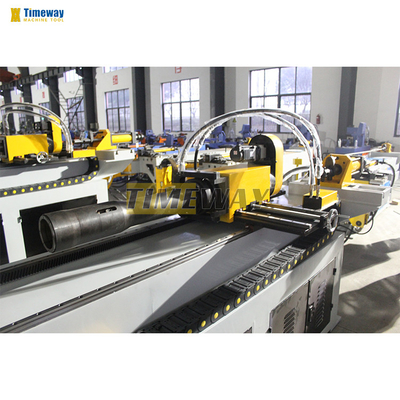

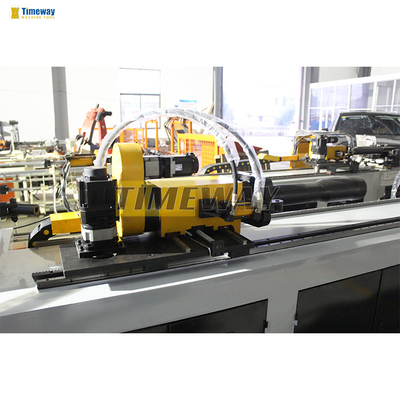

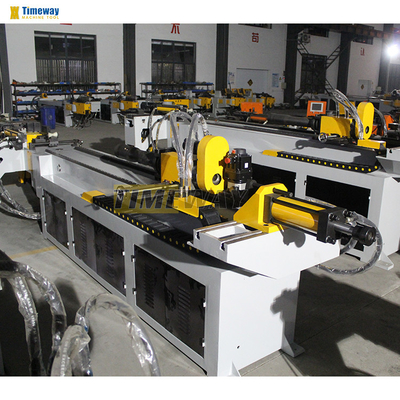

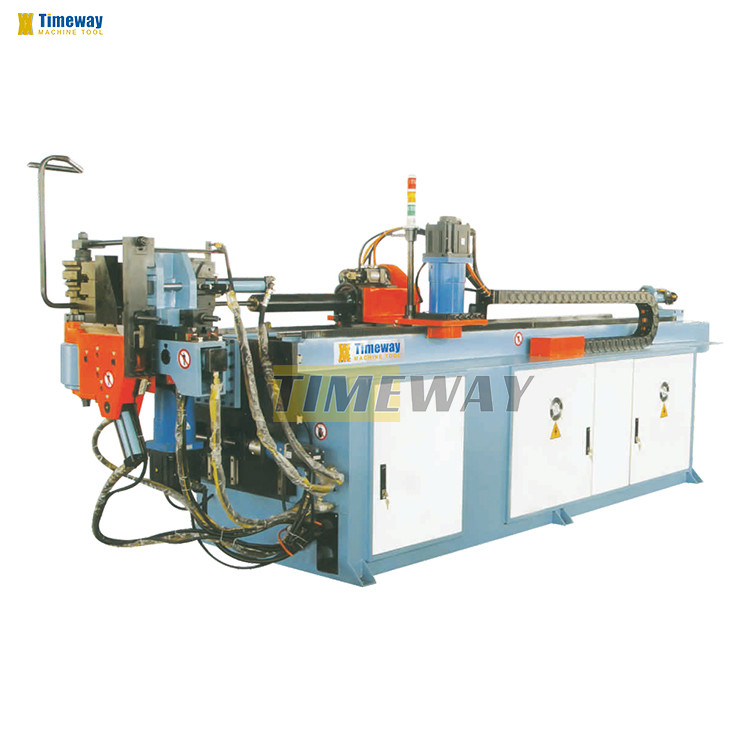

Customizable CNC Pipe Bending Machine for Customer Requirements
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $16,890.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Beading Machine, Bending Machine |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2019 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Raw Material: | PIPE |
| Material / Metal Processed: | Carbon Steel | Power: | CNC, 0.4kw |
| Automation: | Automatic | Extra Services: | Machining |
| Year: | 2023 | Weight (KG): | 1000 |
| Key Selling Points: | Automatic | Warranty: | 1 Year, 1-year |
| Applicable Industries: | Manufacturing Plant, Other | Showroom Location: | Egypt, United Kingdom, Italy, Germany, Philippines, Brazil, Peru, Mexico, Russia, Spain, Thailand, Kenya, Chile, UAE |
| After-sales Service Provided: | One Year | Color: | Customer Requirements |
| Product Name: | CNC Pipe Bending Machine | Type: | Bending Tools |
| Material: | Steel Material | Power Supply: | 380V 50Hz 3 Phase |
| Quality: | Excellent | Port: | China Port |
Product Description
Products Description
Specification | Unit | DW25NC | DW38NC | DW50NC |
Max. bending size of carbon steel(1.5D) | mm | 25.1x1.6 | 38.1x2 | 50.8x2 |
Max. bending length of pipe | mm | 1300 | 2100 | 2400 |
Feeding way | - | servo motor | servo motor | servo motor |
Max. bending radius | mm | 175 | 175 | 250 |
Max. bending angle | ° | 185 | 185 | 185 |
Number of bending group | groups | 200 | 200 | 200 |
Max. bending speed of pipe | °/s | 45 | 45 | 40 |
Max. feed speed of pipe | mm/s | 700 | 700 | 700 |
Feed motor power | kw | 0.75 | 1.3 | 1.3 |
Main motor power | kw | 4 | 4 | 5.5 |
Machine dimension(LxWxH) | mm | 2500x60 x1200 | 3800x1000 x1300 | 4300x900 x1300 |
Machine weight | kg | 1000 | 2100 | 2500 |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
