22kW Power Automatic Hydraulic Pipe Bending Machine for Large-Scale Production
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $24,900.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Material / Metal Processed: | ALLOY, Stainless Steel, Aluminum | Condition: | New |
|---|---|---|---|
| Machine Type: | Pipe Bending Machine | Bending Radius (mm): | 102 - 130 |
| Max. Bending Angle (Deg): | 185 | Bending Precision (Deg): | 0.005 Mm |
| Automation: | Automatic | Power (kW): | 22 |
| Weight (KG): | 8500 | Warranty: | 1 Year |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Key Selling Points: | Automatic |
| Showroom Location: | Kenya, Colombia, Sri Lanka, Romania, South Africa, Nigeria, Uzbekistan, Tajikistan, Malaysia, Canada, United States, Philippines, Indonesia | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Gear, PLC |
| Product Name: | Pipe Bending Machine | Model: | DW130 |
| Keyword: | Bending Machine | Max. Bending Length Of Pipe: | 3700 Mm |
| Max. Bending Radius: | 550 Mm | Max. Bending Angle: | 185° |
| Oil Pressure: | 14 Mpa | Main Motor Power: | 22 Kw |
| Machine Dimensions (LxWxH): | 540x180x140 Cm | Machine Weight: | 8500 Kg |
| Port: | China Port | ||
Product Description
Products Description

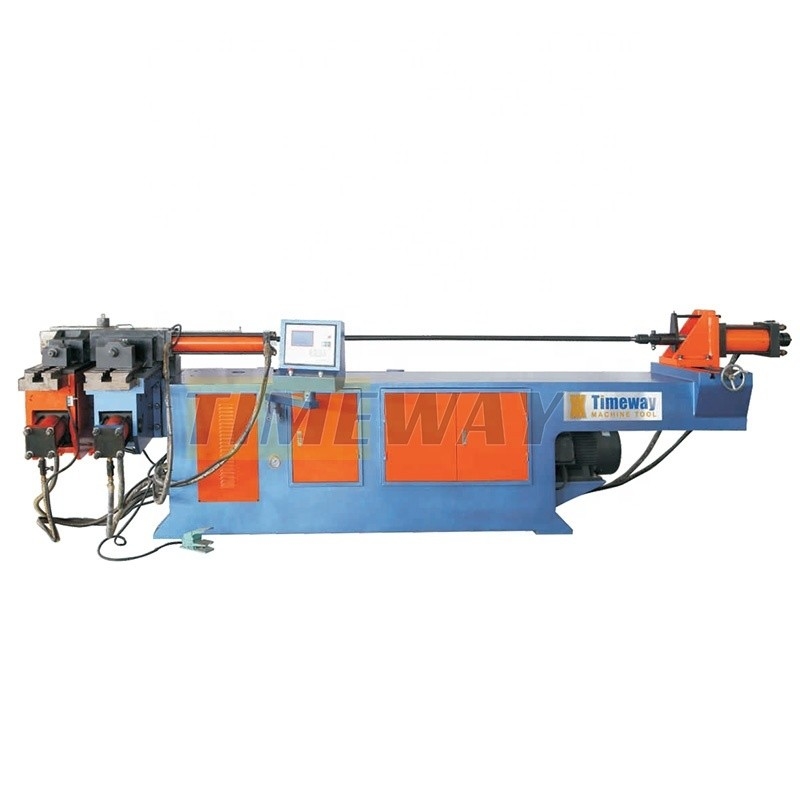

Pipe Bending Machine
Specification | Unit | DW130 |
Max. bending size of carbon steel pipe(1.5D) | mm | Φ130x8 |
Max. bending size of stainless steel pipe(1.5D) | mm | Φ102x3 |
Max. bending length of pipe | mm | 3700 |
Max. bending radius | mm | 500 |
Max. bending angle | ° | 185° |
Setting number of bending pipe | times | 16 |
Oil pressure | Mpa | 14 |
Main motor power | kw | 22 |
Machine dimensions (LxWxH) | cm | 540x180x140 |
Machine weight | kg | 8500 |
