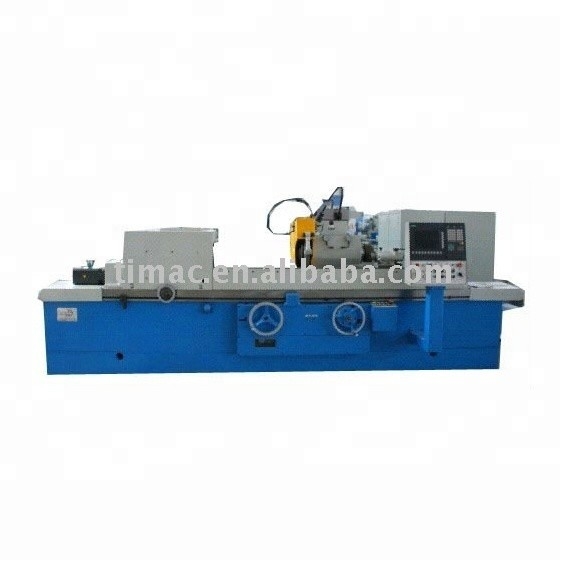

7kW CNC Camshaft Grinding Machine for Precise and Consistent Camshaft Profiles
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $98,000.00/sets 1-1 sets |
| Packaging Details: | WOODEN CASE |
| Supply Ability: | 300 Set/Sets per Month . |
|
Detail Information |
|||
| Type: | Camshaft Grinding Machine | CNC Or Not: | CNC |
|---|---|---|---|
| Condition: | New | Voltage: | 220V/380V |
| Dimension(L*W*H): | 4392x1955 X1710mm | Weight (KG): | 6200 |
| Power (kW): | 7 | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Showroom Location: | Viet Nam, Australia, Russia, Malaysia, Peru, Thailand, Brazil, Indonesia |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Other |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | CNC Camshaft Grinding Machine: | CNC Camshaft Grinding Machine |
| Max. Grinding Length: | As Table | Max. Grinding Diameter: | As Model |
| Power: | 11/7.5kw | Color: | Customized Optional |
| Machine Type: | Cnc Control | Funtion: | Auto Maintenance Machinery |
| Port: | China Port | ||
Product Description
CNC Camshaft Grinding Machine
Features:
1. This CNC camshaft grinding machine adopts Siemens 802S system, automatic control the feed of wheel frame, work table is hydraulic-driven.
2. The machine can be on the whole root of all the cam and camshaft eccentric outline a loaded card automatically processed, include high and low double speed two-axis circulation, high-speed single cycle, low speed single cycle, single-cam cycle and manual grinding.
3. The wheel holder spindle adopts liquid hybrid bearing, the cooling system can be chosen on magnetic separation, or vortex separators.
| Specification | Unit | GK8312 | GK8318 | |||
| Swing diameter x work length | mm | 125x300 | 125x500 | 125x800 | 125x1250 | 180x500 |
| grinding O.D | mm | 15 | 20-180 | |||
| Max. weight of workpiece | kg | 30 | 60 | 60 | ||
| Max. Hoisting distance of workpiece | mm | 15 | 20 | |||
| Center height | mm | 75 | 100 | |||
| CNC axis the unit set | mm/step | 0.001 |
| |||
| Grinding wheel dimension | mm | 600x20x305 | 600x32x305 | |||
| The peripheral speed of wheel | m/s | 30,60(dual speed) | ||||
| Grinder power | kW | 11/7 | 7.5 | |||
| Dimension(LxWxH) | mm | 2578x1955 x1710 | 3078x1955 x1710 | 3382x1955 x1710 | 4392x1955 x1710 | 2900x2077 x1834 |
| Weight | kg | 4500 | 5000 | 5500 | 6200 |
|
| Total power | kW | 19.41 | 14.5 | |||
| Grinding accuracy | mm | ±0.03 | 0.005 | |||
| Surface roughness | μm | Ra0.63 | Ra0.63 | |||
Standard accessories:
Autogenously grinding and copy lathing device;
Balance core axis;
Steady center;
Steady rest;
Optional accessories:
