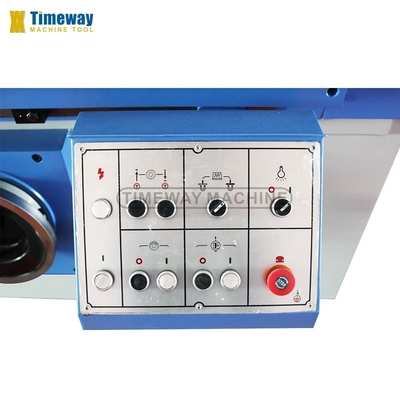

1.The spindle is driven by a built-in motor. In order to reduce vibration, the spindle must be dynamically balanced after being loaded into the rotor. The center of gravity offset must not exceed 3.5μ, and the grinding wheel must be statically balanced. 2.The distance between the oil recovery point and the oil entry point in the oil pool is the longest, and the hydraulic oil is circulated to balance the oil temperature distribution and reduce the thermal deformation of the machine. 3.Adopt famous brand hydraulic parts, make sure stability of movement and reliable reversing action. 4.This machine tool has beautiful shape, good rigidity, stable and reliable performance and easy to maintenance. 5.According to customer's need, can choose inverter driven on wheelhead cross movement, realize stepless speed adjustment. 6.Integrated central operation panel and clear logo, simple and easy to operate. 7.Optional magnetic separator and paper tape filter to reduce the dust of the cutting liquid and ensure the grinding process. 8.Optional external hydraulic station eliminates the influence of oil temperature rise on the machine tool and improves machining accuracy. Standard accessories: Grinding wheel, Wheel balancing arbor, Wheel extractor, Coolant system, Work lamp, Wheel flange, Wheel dresser, Leveling wedge and bolt, Operation manual (English edition), Tools and tool box. Opetional accessories: Diamond pen, Electronic magnetic chuck, Paper fliter, Magnetic separator, Demagnetizer, Air-cooled machine, Wheel balancing stand.
 |
Online Support After Service High Accuracy Surface Grinding Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $59,800.00/sets 1-2 sets |
| Packaging Details: | Wooden case/pallet(can be fumigated) |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 1000 | Surface Roughness(μm): | 3.2 μm |
| Table Size(mm): | 320x1600mm | Voltage: | 220V/380V |
| Dimension(L*W*H): | As Model | Weight (KG): | 3500 |
| Power (kW): | 11/13.75/28 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Showroom Location: | Germany, Mexico, Australia, South Africa, Spain, Canada, Russia, Italy, United States |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Gearbox, Engine, Gear, Other | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops |
| Type: | Surface Grinding Machine | Surface Grinding Machine: | Surface Grinding Machine |
| Power(KW): | 5.5/7.5 | Table Width: | 320mm |
| Max. Grinding Width: | 320mm | T-slot (No./width): | 3/18mm |
| Cross Continuous Feed Speed: | 0.5-4.5m/min | After-sales Service Provided: | Online Support |
| After Warranty Service: | Online Support | Local Service Location: | Canada |
| Port: | China Port | ||
Product Description
Specification
Specification | Unit | GS-300A | GS-320A | GS-400A |
Table width | mm | 300 | 320 | 400 |
Table length | mm | 1000/1600/2200/3000/4500 | 1000/1600/2200/3000/4500 | 1000/1600/2200/3000/4500 |
Max. grinding width | mm | 300 | 320 | 400 |
Max. grinding length | mm | 1000/1600/2200/3000/4500 | 1000/1600/2200/3000/4500 | 1000/1600/2200/3000/4500 |
Max. grinding height | mm | 400 800 1200 | 400 800 1200 | 400 800 1200 |
Distance from spindle to table | mm | 575 975 1375 | 575 975 1375 | 600 1000 1400 |
Longitudinal feed speed | m/min | 5-25 | 5-25 | 5-25 |
T-slot (No./width) | mm | 3/18 | 3/18 | 3/18 |
Cross continuous feed speed | m/min | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 |
Cross intermittent feed rate | mm/str | 3-30 | 3-30 | 3-30 |
Cross feed of handwheel | mm/gra | 0.02 | 0.02 | 0.02 |
Vertical rapid feed speed | mm/min | 400 | 400 | 400 |
Vertical feed of handwheel | mm/gra | 0.005 | 0.005 | 0.005 |
Main motor power | kw | 5.5 | 5.5 | 7.5 |
Spindle speed | rpm | 1440 | 1440 | 1440 |
Total power | kw | 9/11 | 9/11 | 11/13.5/15.75 |
Loading capacity (include chuck) | kg | 470/750/1030/1400/2100 | 500/800/1100/1500/2250 | 620/1000/1380/1872/2810 |
Grinding wheel size | mm | 350x40x127 | 350x40x127 | 400x40x127 |
Machine length | mm | 2860/4250/5750/7880/12170 | 2860/4250/5750/7880/12170 | 3110/4250/5750/7880/12170 |
Machine width | mm | 1845 | 1865 | 1740 |
Machine height | mm | 2030 2510 2930 | 2030 2510 2930 | 2230 2630 3030 |

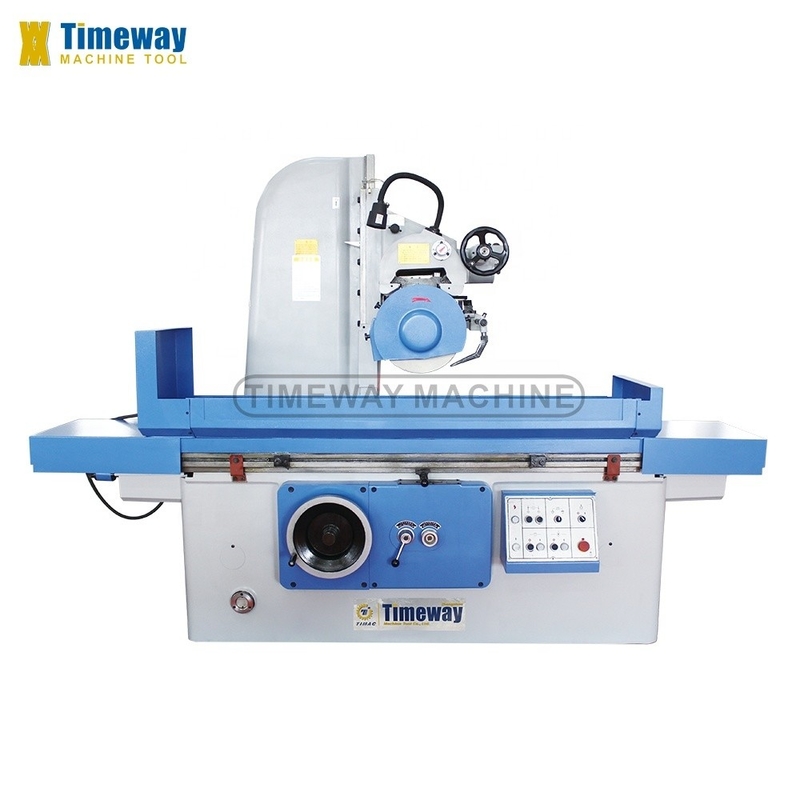

High-accuracy Surface Grinding Machine GS-320A

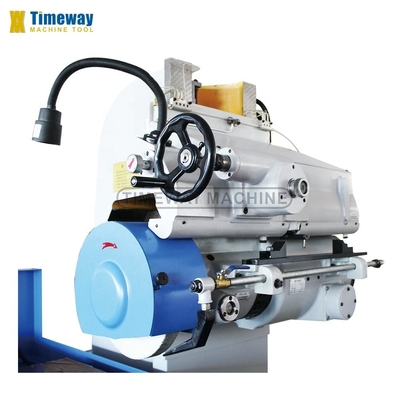

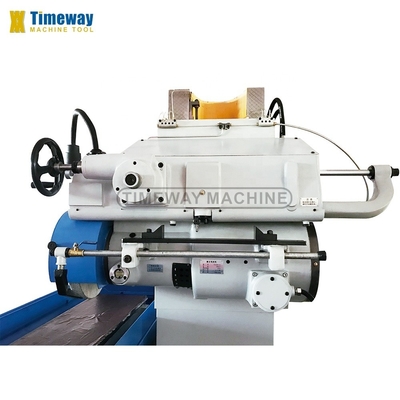

*The machine tool is designed with wheelhead moving type, reasonable structure and nice-looking. *The machine tool is surface grinding machine with grinding workpiece around ground wheel, and it can also grinding vertical surface of workpiece by grinding wheel side-face. The width of the machine table is 300/320/400mm, the effective length is 1000/1600/2200/3000/4500mm, and max. grinding height is 400mm, the max. heighten is to 800/1200mm. The workpiece can be clamped by electromagnetic chuck, or fixed directly on the worktable, or other fixtures. *The longitudinal movement of the table is hydraulic driven. The transverse motion of the grinding head on the drag plate is hydraulic driven, and it can also be operated manually, with hand and hydraulic interlock device. The drag plate (along with the grinding head) is mounted on the column. The upper and lower vertical movement have the function of manual feed and maneuver (fast lifting), and interlocking devices. *Wheelhead is equipped with a quick lifting mechanism, which can reduce labor intensity and improve work efficiency.
