6000 kg Capacity Crankshaft Grinder MQ8260A for Precise Grinding of Large Shafts
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $29,000.00/sets 1-2 sets |
| Packaging Details: | wooden case (can be fumigated) , in plywood case or pallet |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Crankshaft Grinding Machine | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Year: | 2020 |
| Voltage: | As Customer's Request | Dimension(L*W*H): | 4166*2037*1584mm |
| Weight (KG): | 6000 | Power (kW): | 9.82 |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Showroom Location: | Kenya, Australia, South Africa, Egypt, Canada, Colombia, Peru, Thailand, Tajikistan, Pakistan, Philippines | Applicable Industries: | Farms, Manufacturing Plant, Home Use, Construction Works , Energy & Mining, Retail, Machinery Repair Shops, Building Material Shops, Garment Shops |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Engine, Gear, Pressure Vessel, Gearbox, PLC, Pump | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Machine Name: | Small Crankshaft Grinding Machine | Max. Grinding Length: | 1600/1800/2000 |
| Power(W): | 9.82 Kw | Max. Grinding Diameter: | 580 Mm |
| Weight: | 6000 Kg | Port: | China Port |
Product Description

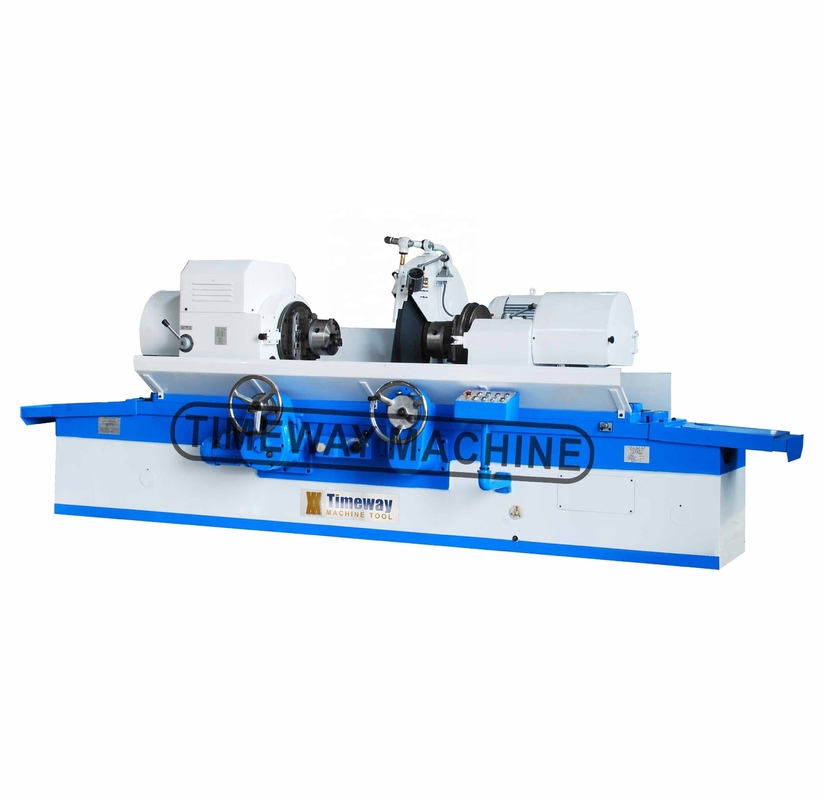

Crankshaft Grinding Machine / Crankshaft
Grinder ( MQ8260A )
Features:
The crankshaft grinding machine is used in automobile, tractor, diesel engine works and their repair shops to grind the journals and crankpins of crankshaft, also used in large engineering machinery and diesel engines for ships to grind crankshaft.
1. Flexible belt drive for speed change three steps speeds of work spindle (MQ8260x20); Four different work speeds are obtainable by making use of double-speed motor & the belts in work head (MQ8260Ax16, MQ8260Ax18).
2. Union chuck are used in the headstock and tailstock for adjusting eccentricity up to 120mm.
3. Friction coupling is used in the headstock transmission chain for its easy adjustment.
4. Table longitudinal traverse is operated either by hand or by power.
5. Wheel-head rapid approach and withdraw is effected by hydraulic device.
6. Rolling guideways are used on wheel-head and made by high quality material. The wheel spindle being of 80mm in diameter has good rigidity and strength.
7. The bed ways & wheel-head ways are lubricated in automatic cycle by means of oil pump.
8. Plastic coated bed ways with less friction.
9. The digital display device can be optional.
Parameter:
| Model | Unit | MQ8260Ax16 | MQ8260Ax18 | MQ8260Ax20 |
| Max. work swing dia. x Max. length | mm | 580x1600 | 580x1800 | 580x2000 |
| Max. swing daimeter over table | mm | 580 | 580 | 580 |
| Work dia. ground with steady rest | mm | 30-100 | 30-100 | 50-120 |
| Throw of crankshaft | mm | 110 | 110 | 120 |
| Max. work length ground: in 3-jaw chuck | mm | 1400 | 1600 | 1800 |
| Max. work length ground: between centers | mm | 1600 | 1800 | 2000 |
| Max. work weight | kg | 120 | 120 | 150 |
| Center height | mm | 300 | 300 | 300 |
| Work speed | rpm | 25, 45, 95 | 25, 45, 95 | 30, 45, 65, 100 |
| Max. cross movement | mm | 185 | 185 | 185 |
| Wheel-head rapid approach & withdrawal | mm | 100 | 100 | 100 |
| Wheel feed per turn of cross feed handwheel | mm | 1 | 1 | 1 |
| Per grad of cross feed handwheel | mm | 0.005 | 0.005 | 0.005 |
| Wheel spindle speed | rpm | 740, 890 | 740, 890 | 740, 890 |
| Wheel peripheral speed | m/s | 25.6-35 | 25.6-35 | 25.6-35 |
| Grinding wheel size | mm | 900x32x305 | 900x32x305 | 900x32x305 |
| Table travel per turn of handwheel coarse | mm/r | 5.88 | 5.88 | 5.88 |
| Table travel per turn of handwheel fine | mm/r | 1.68 | 1.68 | 1.68 |
| Table swivel (taper 18/100) | ° | 5°, taper 9/100 | 5°, taper 9/100 | 5°, taper 9/100 |
| Table swivel per grad of scale(taper 1:50) | ° | 1°, taper 1/100 | 1°, taper 1/100 | 1°, taper 1/100 |
| Overall capacity of motors | kw | 9.82 | 9.82 | 11.12 |
| Machine dimensions (LxWxH) | mm | 4166x2037x1584 | 4166x2037x1584 | 4900x2037x1584 |
| Machine weight | kg | 6000 | 6200 | 7000 |
| Ovality (new standard) | mm | 0.005 | 0.005 | 0.005 |
| Cylindricity | mm | 0.008 | 0.01 | 0.01 |
| Roughness (external) | um | Ra0.32 | Ra0.32 | Ra0.32 |
| Roughness (end) | um | Ra0.63 | Ra0.63 | Ra0.63 |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
