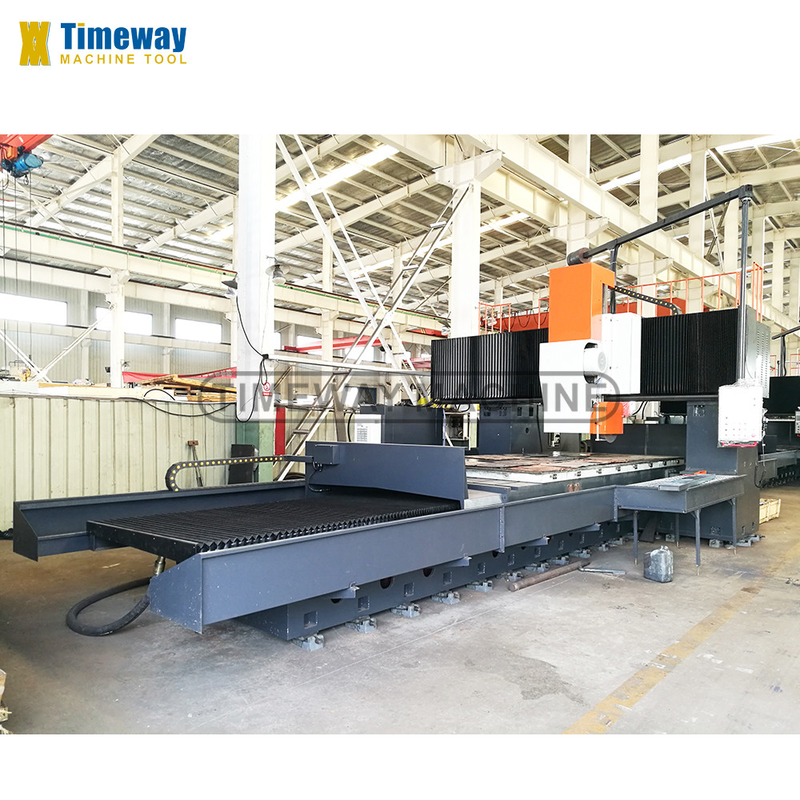

High Precision DSG Series Gantry Type Surface Grinder for Table Travel X 0mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC timeway |
| Certification: | ISO,CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $150,000.00/sets 1-2 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 100 Set/Sets per Month . |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 2000 | Surface Roughness(μm): | 0.02 μm |
| Table Size(mm): | 1250/1600/2000x2000/3000/4000/6000/8000mm | Table Travel (X) (mm): | 0 |
| Table Travel (Y) (mm): | 0 | Year: | 2020 |
| Voltage: | As Request | Weight (KG): | 18000 |
| Power (kW): | 11 | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Showroom Location: | Indonesia, Argentina, Turkey, Russia, Malaysia, Philippines, Colombia, Thailand, Tajikistan, Uzbekistan |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Gearbox, Engine, Gear, Pressure Vessel, Pump, PLC | Applicable Industries: | Farms, Home Use, Manufacturing Plant, Energy & Mining, Retail, Construction Works , Machinery Repair Shops, Building Material Shops |
| Type: | Surface Grinding Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| PLC & NC Column Moving Surface Grinder: | Large Sized Surface Grinding Machine | Max. Grinding Length: | 2000-8000 Mm |
| Power(W): | 11 KW | Name: | Grinder Machine |
| Max. Grinding Height: | 600/800/1000mm | Spindle Speed: | 1050rpm |
| Product Name: | Surface Grinder Grinding Machine | Port: | China Port |
Product Description
Products Description
Gantry Type Surface Grinder：
* The gantry surface grinder standard with a horizontal wheelhead, according to requirement, optional a vertical wheelhead. single saddle and double saddles, Double saddle can realize vertical grinding head and horizontal grinding head without interference grinding.
* This series of machine is a PLC gantry surface grinder with advanced technology of machine, electricity and liquid, which mainly serves the mechanical industry and mould industry, and is suitable for precise grinding of steel parts, cast iron and non-ferrous metals.
* This series of machine is a PLC gantry surface grinder with advanced technology of machine, electricity and liquid, which mainly serves the mechanical industry and mould industry, and is suitable for precise grinding of steel parts, cast iron and non-ferrous metals.
Feature：
* The machine adopts the gantry type layout, which is composed of double column, beam and bed frame. * Beam with 60° obliquebeam structure, mechanical performance is good, strong rigidity. * The main spindle of grinding head adopts hydraulic-dynamic and static bush structure. It has the advantages of high motion accuracy, no wear, long life, small starting power, alrge bearing capacity and good vibration resistance. * The working table is driven by oil cylinder, and can be stepless speed regulation, with mooth movement and low noise. * Machine running reliable, cost-effective. Compact structure, small floor space and easy operation; high raliability as a working machine. * High rigidity box casting structure and thermal symmetrical deformation structure. * High rigidity, high precision hydro-dynamic and hydro-static spindle. * Large feed amount, high efficency. * Hydraulic system temperature rise is small, low energy consumption. * Rotating of vertical grinding head positioning with end gear plate 360° rotating table.
Specification | Unit | DSG-1250/1250A | DSG-1600/1600A | DSG-2000/2000A |
Table width | mm | 1250 | 1600 | 2000 |
Table length | m | 2/3/4/6/8 | 2/3/4/6/8 | 2/3/4/6/8 |
Gantry width | mm | 1700 | 2200 | 2600 |
Max. grinding width | mm | 1500 | 2000 | 2400 |
Max. grinding height | mm | 600/800/1000 | 600/800/1000 | 600/800/1000 |
Horizontal spindle speed | rpm | 1050 | 1050 | 1050 |
Vertical wheelhead feed of MPG | mm | 0.005 | 0.005 | 0.005 |
Standard accessories：
Optional accessories：
- LC+SMART auto. grinding controller - Coolant tank - Work lamp - Balancing arbor - Wheel flange and extractor - Wheel dresser stand - Y/Z axis electrical wheel(MPG) - Operation manual (English edition) - Splashing guard - Standard grinding wheel - Leveling wedge and boltd - Tools & tool-box - Operation manual(English edition) | - Balancing stand - Magnetic separator - Paper filter - Oil tank guard - Electrical magnetic chuck - Built-in magnetic chuck controller - Parallel wheel dresser - 2 axis digital readout - Extra wheel flange |

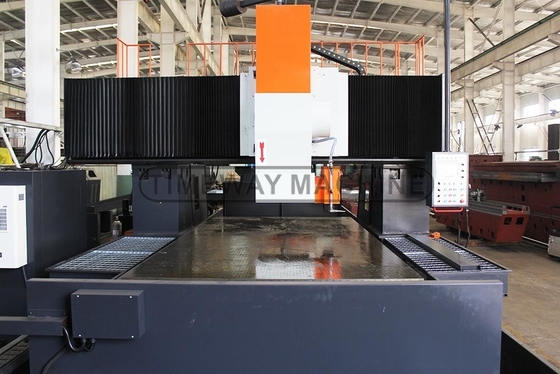

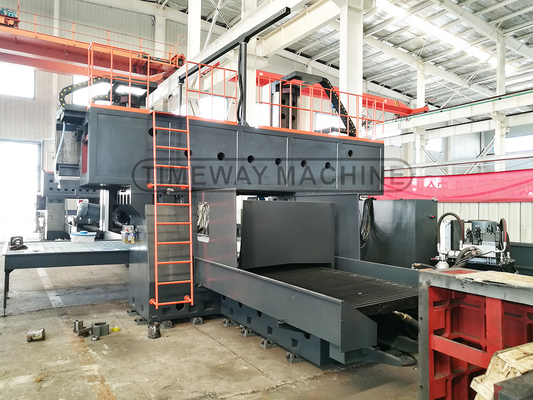

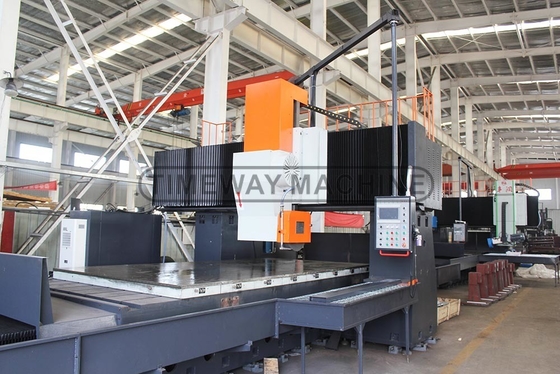

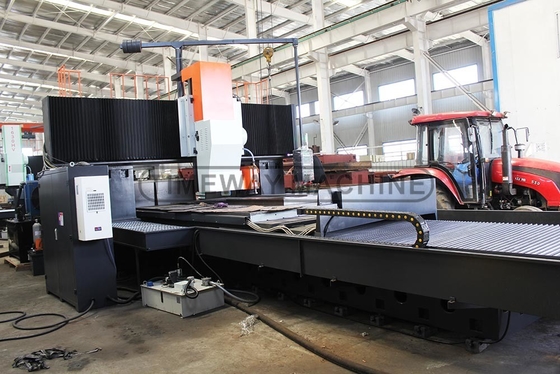

Machine details：
