Precision Circular Saw Machine MQ8266 for Crankshaft Grinding at Manufacturing Plant
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY timac |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $90,000.00/sets >=1 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Circular Saw Machine |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel | Voltage: | 220V/380V |
| Rated Power: | 15kw | Dimension(L*W*H): | 6000x2580x1750mm |
| Warranty: | One Year | Key Selling Points: | High-accuracy |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Brazil, Mexico, Russia, Kazakhstan |
| Weight (KG): | 4000 KG | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| CRANKSHAFT: | GRINDING MACHINE | Max. Swing Diameter Over Bed: | 660mm |
| Max. Length Of Workpiece (chucks): | 1830mm | Between Centers: | 2000mm |
| Max. Workpiece Weight: | 500kg | Main Motor Power: | 15kw |
| Product Name: | CRANKSHAFT GRINDING MACHINE | Color: | Customer Choose |
| Key Selling Point: | Competitive Price | Port: | China Port |
Product Description
Product Description

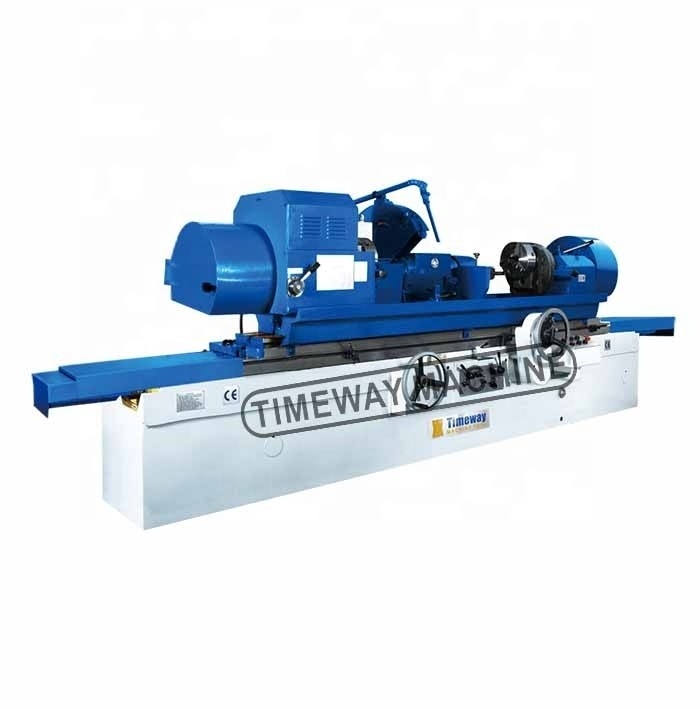

crankshaft grinder machine
Feature：
1. The workpiece is clamped by centers or chucks, driven by the headstock motor, and manually operation.
2. Equipped with double cross-type chucks according to customers' need, adjusting eccentricity up to 120mm.
3. Workhead spindle, wheelhead spindle, oil pump, cooling pump are driven by separate motors.
4. Workhead and tailstock are driven by variable frequency motors and synchronous control.
5. Wheelhead spindle is supported by bimetal shell bearing which make the spindle have high rigidity and stability, ensure heavy, excellent finishing surface.
6. The wheelhead cross feed is driven by hydraulic, which realizes automatic periodical feed and rapid feed.
7. The base table slide way with TF material and been precision manual scraped.
2. Equipped with double cross-type chucks according to customers' need, adjusting eccentricity up to 120mm.
3. Workhead spindle, wheelhead spindle, oil pump, cooling pump are driven by separate motors.
4. Workhead and tailstock are driven by variable frequency motors and synchronous control.
5. Wheelhead spindle is supported by bimetal shell bearing which make the spindle have high rigidity and stability, ensure heavy, excellent finishing surface.
6. The wheelhead cross feed is driven by hydraulic, which realizes automatic periodical feed and rapid feed.
7. The base table slide way with TF material and been precision manual scraped.
Specification
Model | Unit | MQ8240 | MQ8260 | MQ8266 |
Max. swing diameter over bed | mm | 400 | 600 | 660 |
Max. length of workpiece (chucks) | mm | 830 | 1830 | 1830 |
Between centers | mm | 1000 | 2000 | 2000 |
Max. grinding diameter of crankshaft journal | mm | 130 | 130 | 130 |
Min. grinding diameter of crankshaft journal | mm | 30 | 30 | 30 |
Max. crankshaft crank radius | mm | 80 | 110 | 120 |
Max. workpiece weight | kg | 80 | 400 | 500 |
Grinding wheel diameter | mm | 750 | 900/700 | 900/700 |
Wheel peripheral speed | m/s | 35 | 35 | 35 |
Main motor power | kw | 7.5 | 15 | 15 |
Machine weight | kg | 5000 | 11900 | 11900 |
Machine dimensions (LxWxH) | mm | 4115x2050x1500 | 6000x2580x1750 | 6000x2580x1750 |
Roundness | mm | 0.005 | 0.005 | 0.005 |
Cylindricity | mm | 0.008 | 0.008 | 0.008 |
Roughness (external/end) | um | Ra0.32/Ra0.8 | Ra0.32/Ra0.8 | Ra0.32/Ra0.8 |
